Allowed Affected Destination Screening Actions

These network management messages are screened by the Allowed Affected Destination Field: TFP, TFA, TFR, TFC, UPU, and SRST (RSP, RSR). Any MSU that is not one of these network management message types, or does not contain a service indicator of 0 in the SIO field and reaches this screen in the gateway screening process automatically passes gateway screening and is allowed into the EAGLE.

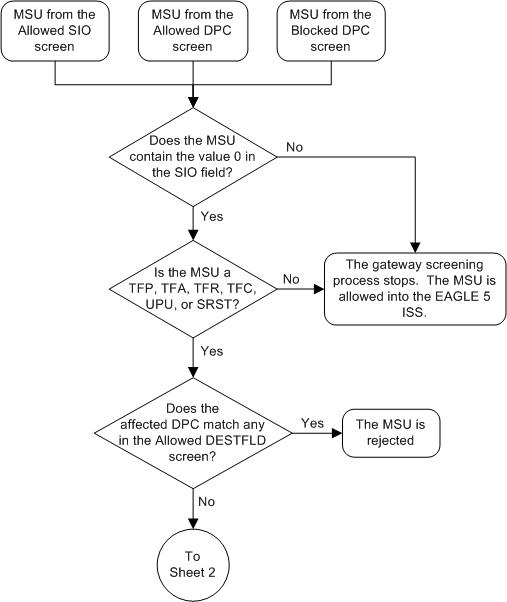

Figure 7-1 shows the screening actions of the allowed affected destination field screen.

Figure 7-1 Allowed Affected Destination Screening Actions

Sheet 1 of 3

Sheet 2 of 3

Sheet 3 of 3

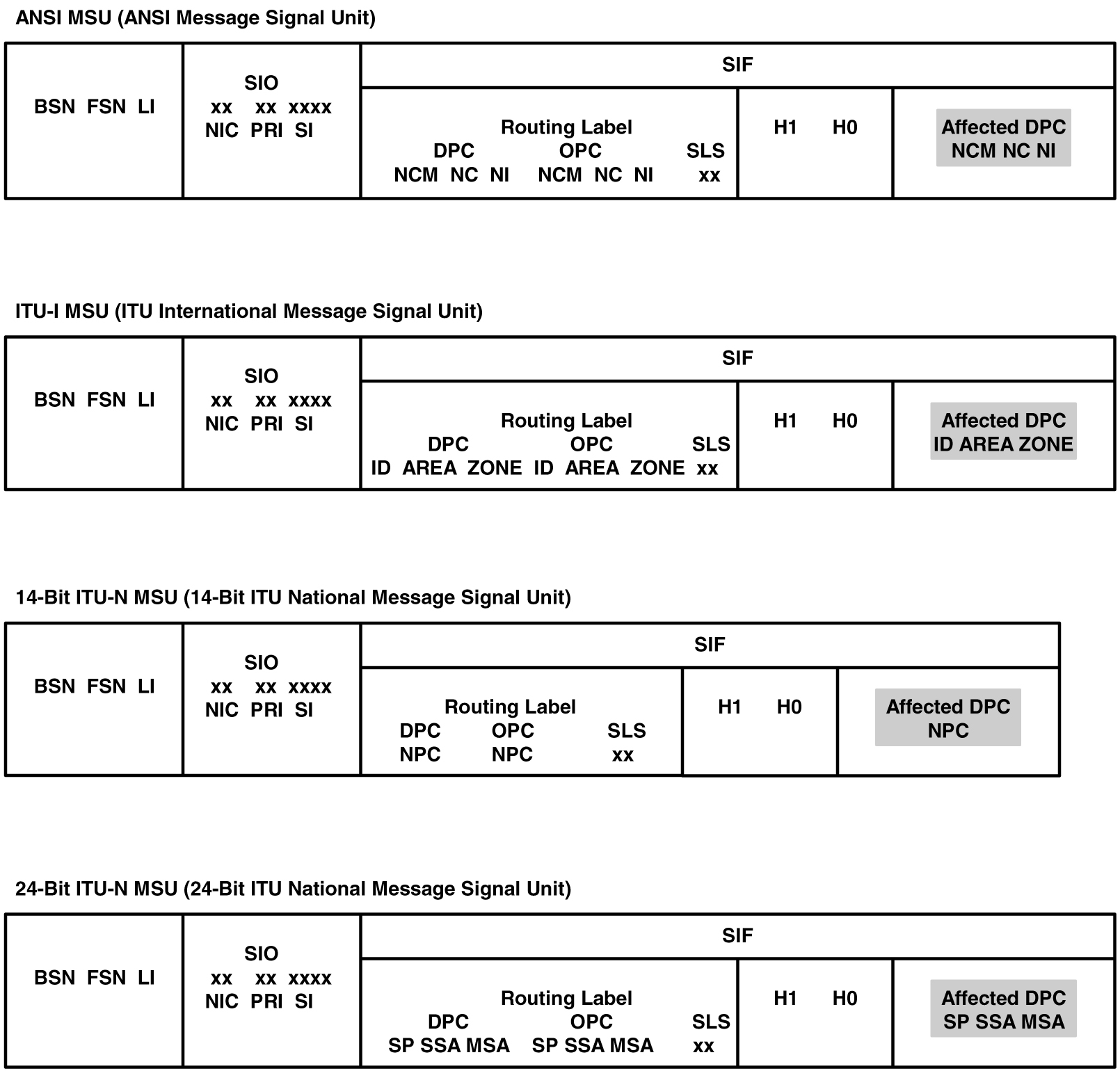

Figure 7-2 Allowed Affected Destination Field Screening Function
