Example 5 screens the messages in a linkset for the following criteria. Figure 2-7 shows the screening order the EAGLE uses and the order that the screens must be entered into the database.
The OPC 010-010-010
The following SIO information:
nic=2
) si=0
) h0=4
) h1=5
) pri=3
) The allowed affected destination field (DESTFLD) of 100-100-100
actname
parameter and the name of the gateway screening stop action set containing the COPY
and RDCT

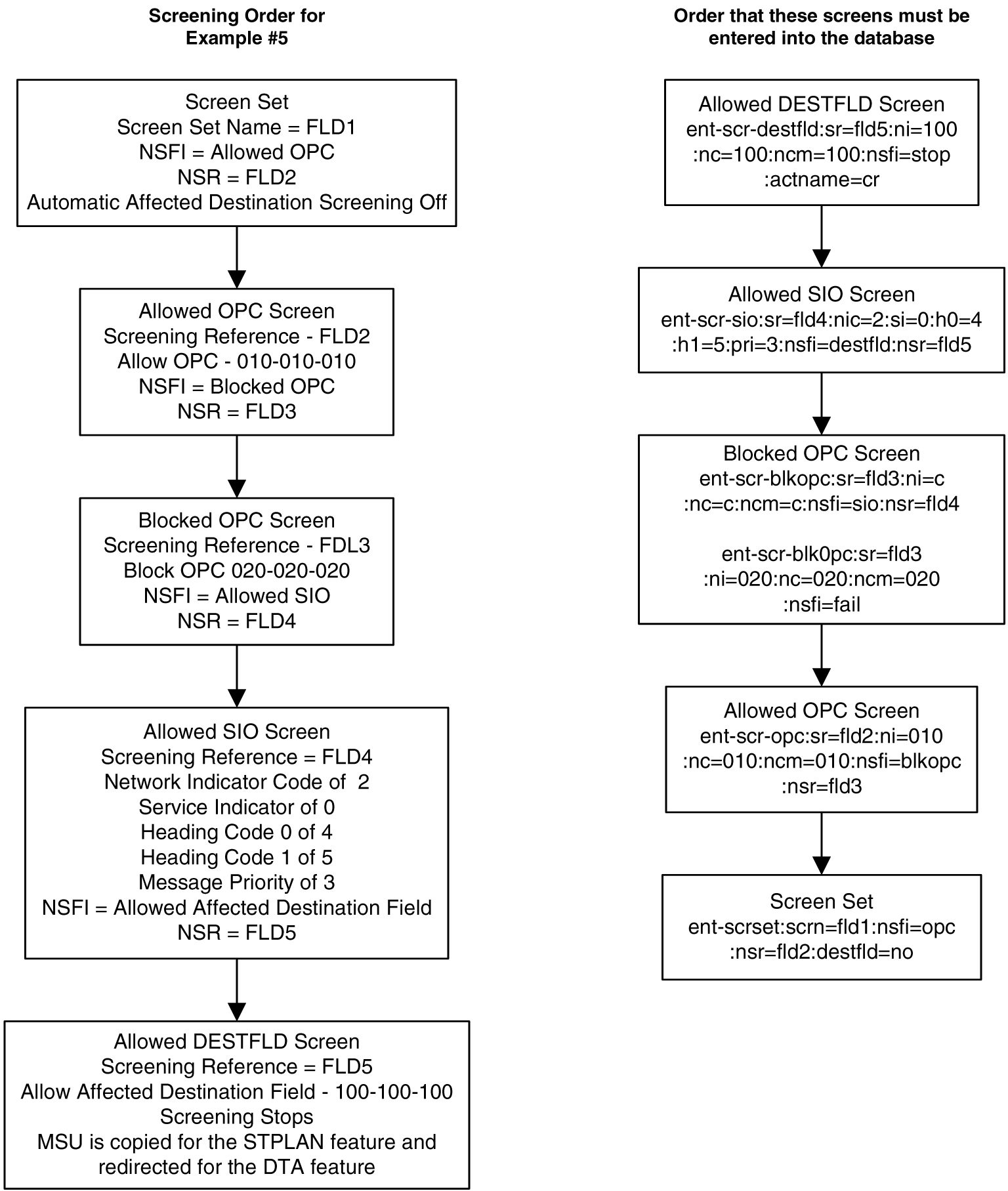

gateway screening stop actions). Figure 2-7 Gateway Screening Configuration - Example 5
