Example 1 screens the messages in a linkset for the following criteria. Figure 2-3 shows the screening order the EAGLE uses and the order that the screens must be entered into the database.
The OPC 001-001-001
The DPC 003-003-003
The calling party address (CGPA) 006-006-006, with
the subsystem number of 253 and the routing indicator (ri
) of
dpc
and the SCCP message type of
UDT
The called party address (CDPA) 003-003-003 with the subsystem number of 001, and the SCMG format ID of 050
The allowed affected point code (AFTPC) of 008-008-008 with the subsystem number of 250
The OPC 001-002-002
The DPC 004-004-004
actname
parameter and the name of
the gateway screening stop action set containing the
COPY
gateway screening stop action).

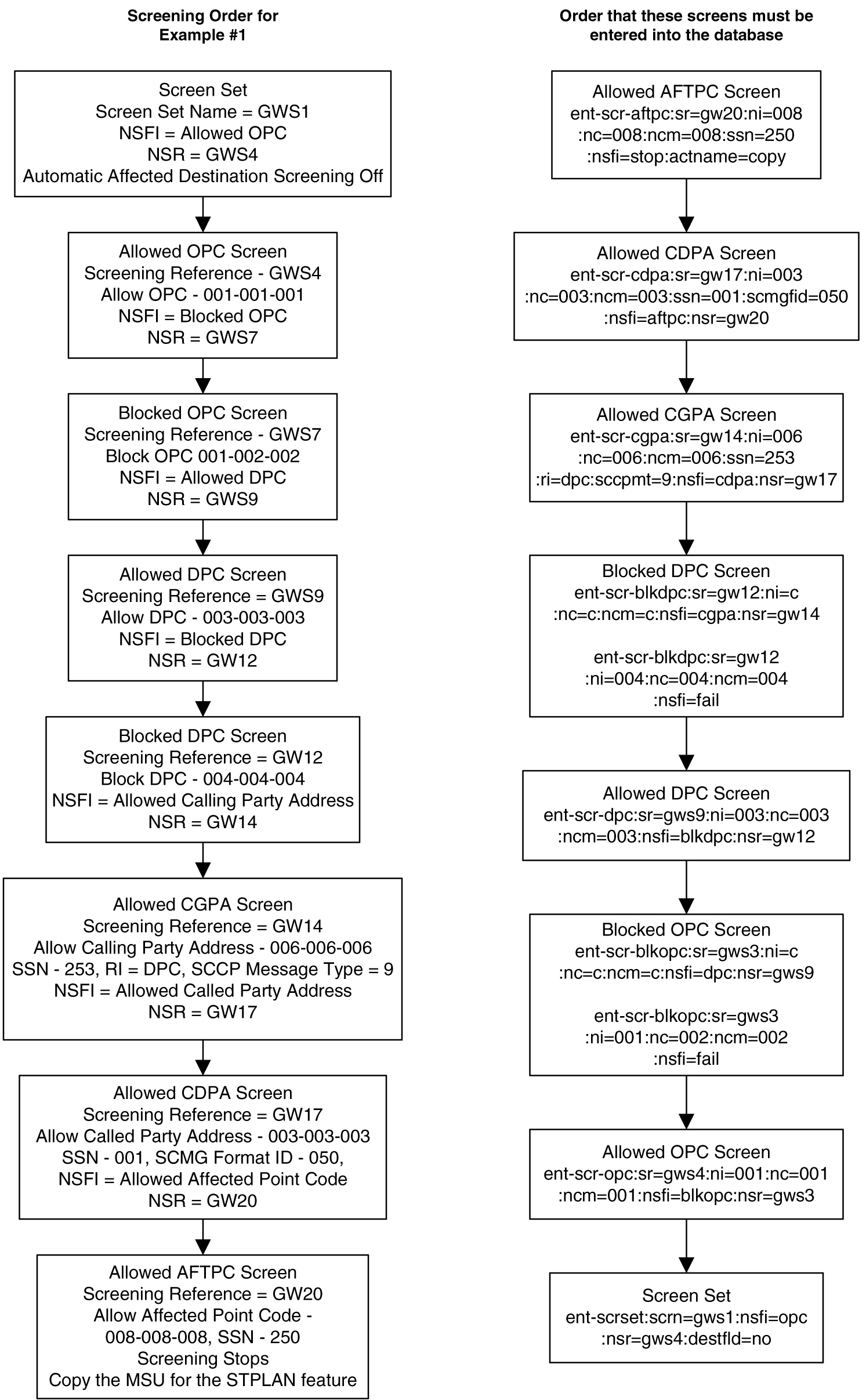

Figure 2-3 Gateway Screening Configuration - Example 1
