Figure 14-1 shows the screening actions of the allowed ISUP message type screen.

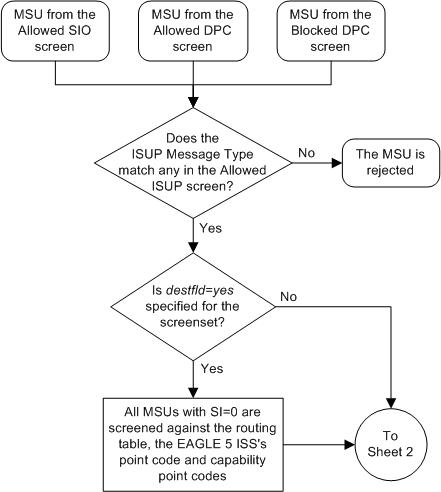

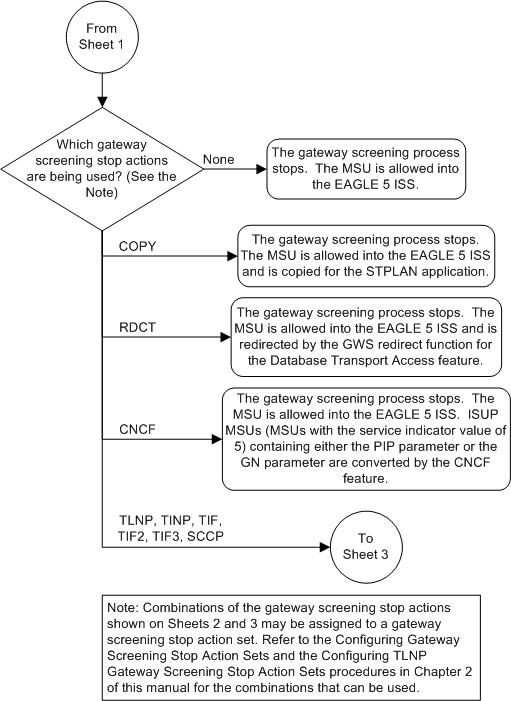

Figure 14-1 Allowed ISUP Message Type Screening Actions
Sheet 1 of 3
Sheet 2 of 3
Sheet 3 of 3

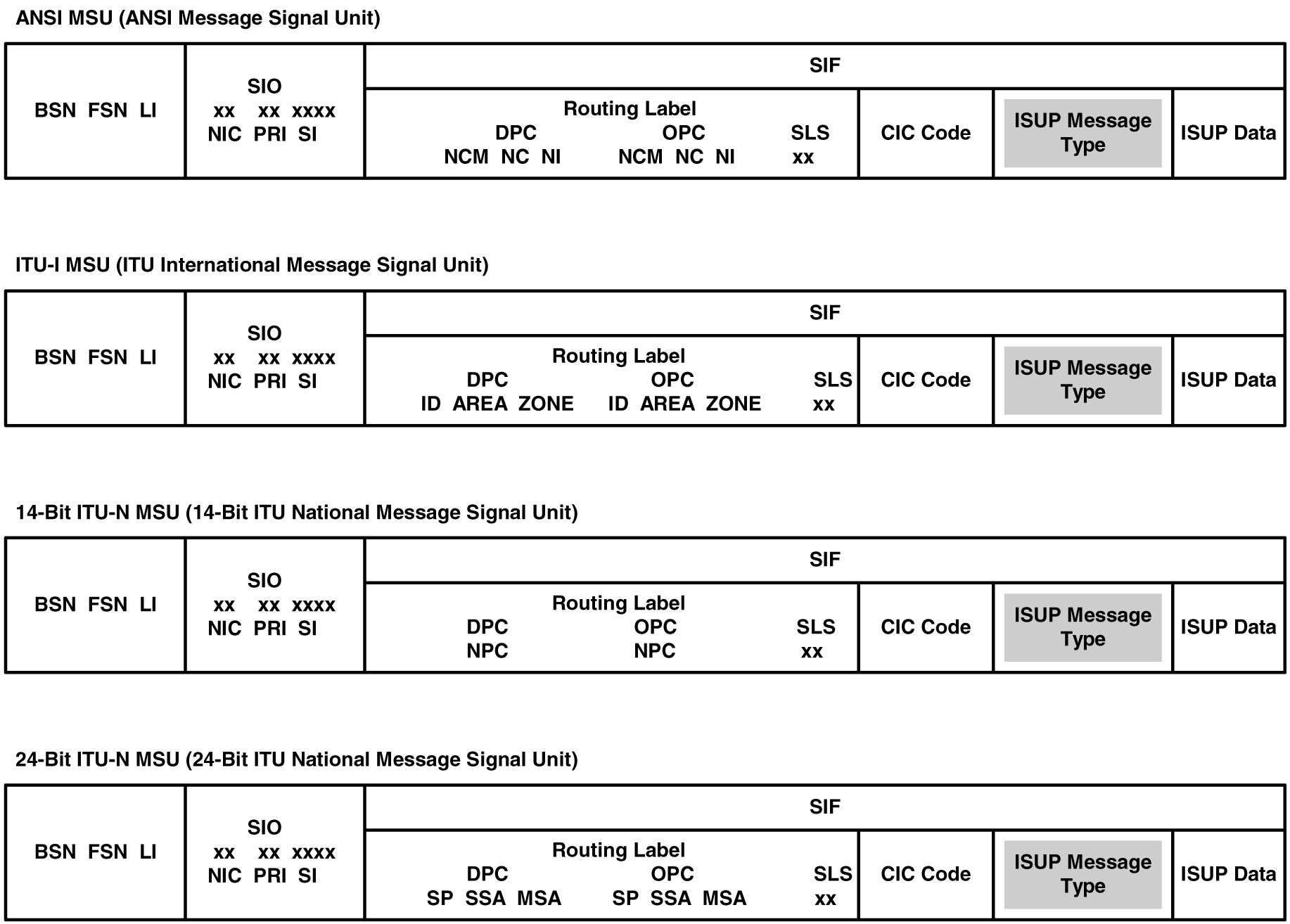

Figure 14-2 Allowed ISUP Message Type Screening Function
