Adding a GT Conversion Table Entry

This procedure is used to provision an entry in the GT Conversion table for the ANSI/ITU SCCP Conversion feature using the ent-gtcnv command.

The ent-gtcnv command uses these parameters.

:dir – The direction that the conversion takes place

atoa – The conversion takes place in the ANSI to ITU direction

itoa – The conversion takes place in the ITU to ANSI direction

both – The conversion takes place in the ANSI to ITU and ITU to ANSI directions

:gtixlat – The global title indicator types being converted.

22 – ANSI GTI type 2 to ITU GTI type 2

24 – ANSI GTI type 2 to ITU GTI type 4

:tta – The ANSI translation type

:tti – The ITU translation type

:np – The numbering plan

:nai – The nature of address indicator

:npdd – The number of digits to be deleted or substituted from the beginning of the Global Title Address digits (the prefix digits)

:npds – The digits that are being substituted for the prefix digits

:nsdd – The number of digits to be deleted or substituted from the end of the Global Title Address digits (the suffix digits)

:nsds – The digits that are being substituted for the suffix digits

To perform this procedure, the ANSI/ITU SCCP Conversion feature must be enabled. Enter the rtrv-ctrl-feat command to verify whether or not the ANSI/ITU SCCP Conversion is enabled. If the ANSI/ITU SCCP Conversion feature is not enabled, perform the Activating the ANSI/ITU SCCP Conversion Feature procedure to enabled the ANSI/ITU SCCP Conversion feature.

Note:

The ANSI/ITU SCCP Conversion feature can only be permanently enabled.

The gtixlat parameter determines how the tta, tti, np, and nai parameters are used with the ent-gtcnv command.

If the gtixlat parameter value is 22, only the tta, tti, npdd, npds, nsdd, and nsds parameters can be specified. The tta and tti parameters must be specified along with the dir and gtixlat=22 parameters.

If the gtixlat parameter value is 24, the tta, tti, np, nai, npdd, npds, nsdd, and nsds parameters can be specified. The tta, tti, np, and nai parameters must be specified along with the dir and gtixlat=24 parameters.

Asterisks (*) can be specified for the tta, tti, np, and nai parameters indicating all possible values for that parameter. The dir and gtixlat parameters determine when the asterisk can be used.

If the dir parameter is atoi, the asterisk can be specified only for the tta parameter.

If the dir parameter is itoa and the gtixlat parameter is 24, the asterisk can be specified for the tti, np, and nai parameters. If the asterisk is specified for either the tti, np, or nai parameters, the asterisk must be specified for the tti, np, and nai parameters.

The asterisk cannot be specified for any parameter when the dir parameter value is both.

The optional prefix (npdd, npds) and suffix parameters (nsdd, nsds) can be specified, but both sets of parameters, or a mixture of the prefix and suffix parameters cannot be specified. For example, if the either the npdd or npds parameters are specified, the nsdd and nsds cannot be specified. If either the nsdd or nsds parameters are specified, the npdd and npds parameters cannot be specified.

1. Verify the status of the ANSI/ITU SCCP Conversion feature by entering the rtrv-ctrl-featcommand with the ANSI/ITU SCCP Conversion feature part number. Enter this command.

   rtrv-ctrl-feat:partnum=893012001

   The following is an example of the possible output.

   rlghncxa03w 06-10-28 21:15:37 GMT EAGLE5 36.0.0
   The following features have been permanently enabled:

   Feature Name              Partnum    Status  Quantity
   SCCP Conversion           893012010  on      ----

   The following features have been temporarily enabled:

   Feature Name              Partnum    Status  Quantity     Trial Period Left
   Zero entries found.

   The following features have expired temporary keys:

   Feature Name              Partnum
   Zero entries found.

   If the ANSI/ITU SCCP Conversion feature has not been enabled, perform the Activating the ANSI/ITU SCCP Conversion Feature procedure to enable this feature.

2. Display the GT Conversion Table entries by entering the rtrv-gtcnv command. The following is an example of the possible output.

   rlghncxa03w 06-10-28 21:15:37 GMT EAGLE5 36.0.0
   DIR   GTIXLAT  TTA  TTI  NP  NAI  DEL  POS  ADD
   atoi    22     24   12   --- ---  ---  ---  ---
   itoa    22     2    5    --- ---  ---  ---  ---
   itoa    24     3    6    4   8    ---  ---  ---
   itoa    24     4    7    4   8    3    sfx  123
   atoi    24     5    7    4   8    3    sfx  123
   atoi    22     7    8    --- ---  3    sfx  123
   both    24     8    9    4   8    4    pfx  4567
   both    22     9    11   --- ---  ---  ---  ---

   GTCNV table is (8 of 1000) 1% full

3. Add the new GT Conversion Table entry by entering the ent-gtcnv command with the appropriate parameter combinations shown in Table 2-58.

   Table 2-58 GT Conversion Parameter Combinations

   DIR = ATOI		DIR = ITOA		DIR = BOTH
   GTIXLAT = 22 TTA = 0-255 or TTA = * TTI = 0-255	GTIXLAT = 24 TTA = 0-255 or TTA = * TTI = 0-255 NP = 0-15 NAI = 0-63	GTIXLAT = 22 TTA = 0-255 TTI = 0-255	GTIXLAT = 24 TTA = 0-255 TTI = 0-255 & NP = 0-15 & NAI = 0-63 or TTI = * & NP = * & NAI = *	GTIXLAT = 22 TTA = 0-255 TTI = 0-255	GTIXLAT = 24 TTA = 0-255 TTI = 0-255 NP = 0-15 NAI = 0-63
   Optional Parameters
   NPDD = 0-21 & NPDS = 1 - 21 digits or NSDD = 0-21 & NSDS = 1 - 21 digits		NPDD = 0-21 & NPDS = 1 - 21 digits or NSDD = 0-21 & NSDS = 1 - 21 digits		NPDD = 0-21 & NPDS = 1 - 21 digits or NSDD = 0-21 & NSDS = 1 - 21 digits

   For this example, enter these commands.

   ent-gtcnv:dir=atoi:gtixlat=22:tta=10:tti=43:npdd=3:npds=919

   ent-gtcnv:dir=atoi:gtixlat=24:tta=*:tti=29:np=4:nai=87

   ent-gtcnv:dir=itoi:gtixlat=22:tta=23:tti=57:nsdd=3:nsds=800

   ent-gtcnv:dir=itoi:gtixlat=24:tta=33:tti=66:np=3:nai=33

   ent-gtcnv:dir=itoi:gtixlat=24:tta=44:tti=*:np=*:nai=*

   ent-gtcnv:dir=both:gtixlat=22:tta=26:tti=13

   ent-gtcnv:dir=both:gtixlat=24:tta=37:tti=59:np=3:nai=33:npdd=3:npds=423

   When each of these commands have successfully completed, the following message should appear.

   rlghncxa03w 06-10-28 21:15:37 GMT EAGLE5 36.0.0
   ENT-GTCNV: MASP A - COMPLTD

4. Verify the changes using the rtrv-gtcnv command and specifying the following parameters based on the gtixlat parameter values used in step 3.
   1. gtixlat=22

      • dir = value specified in step 3

      • tta = value specified in step 3

      • tti = value specified in step 3

   2. gtixlat=24

      • dir = value specified in step 3

      • tta = value specified in step 3

      • tti = value specified in step 3

      • np = value specified in step 3

      • nai = value specified in step 3

   For this example, enter these commands.

   rtrv-gtcnv:dir=atoi:gtixlat=22:tta=10:tti=43

   This is an example of the possible output.

   rlghncxa03w 06-10-28 21:15:37 GMT EAGLE5 36.0.0
   DIR   GTIXLAT  TTA  TTI  NP  NAI  DEL  POS  ADD
   atoi    22     10   43   --- ---  3    pfx  919

   GTCNV table is (15 of 1000) 1% full

   rtrv-gtcnv:dir=atoi:gtixlat=24:tta=*:tti=29:np=4:nai=87

   This is an example of the possible output.

   rlghncxa03w 06-10-28 21:15:37 GMT EAGLE5 36.0.0
   DIR   GTIXLAT  TTA  TTI  NP  NAI  DEL  POS  ADD
   atoi    24     *    29   4   87   ---  ---  ---

   GTCNV table is (15 of 1000) 1% full

   rtrv-gtcnv:dir=itoi:gtixlat=22:tta=23:tti=57:nsdd=3:nsds=800

   This is an example of the possible output.

   rlghncxa03w 06-10-28 21:15:37 GMT EAGLE5 36.0.0
   DIR   GTIXLAT  TTA  TTI  NP  NAI  DEL  POS  ADD
   itoi    22     23   57   --- ---  3    sfx  800

   GTCNV table is (15 of 1000) 1% full

   rtrv-gtcnv:dir=itoi:gtixlat=24:tta=33:tti=66:np=3:nai=33

   This is an example of the possible output.

   rlghncxa03w 06-10-28 21:15:37 GMT EAGLE5 36.0.0
   DIR   GTIXLAT  TTA  TTI  NP  NAI  DEL  POS  ADD
   itoi    24     33   66   3   33   ---  ---  ---

   GTCNV table is (15 of 1000) 1% full

   rtrv-gtcnv:dir=itoi:gtixlat=24:tta=44:tti=*:np=*:nai=*

   This is an example of the possible output.

   rlghncxa03w 06-10-28 21:15:37 GMT EAGLE5 36.0.0
   DIR   GTIXLAT  TTA  TTI  NP  NAI  DEL  POS  ADD
   itoi    24     44   *    *   *    ---  ---  ---

   GTCNV table is (15 of 1000) 1% full

   rtrv-gtcnv:dir=both:gtixlat=22:tta=26:tti=13

   This is an example of the possible output.

   rlghncxa03w 06-10-28 21:15:37 GMT EAGLE5 36.0.0
   DIR   GTIXLAT  TTA  TTI  NP  NAI  DEL  POS  ADD
   both    22     26   13   --- ---  ---  ---  ---

   GTCNV table is (15 of 1000) 1% full

   rtrv-gtcnv:dir=both:gtixlat=24:tta=37:tti=59:np=3:nai=33:npdd=3:npds=423

   This is an example of the possible output.

   rlghncxa03w 06-10-28 21:15:37 GMT EAGLE5 36.0.0
   DIR   GTIXLAT  TTA  TTI  NP  NAI  DEL  POS  ADD
   both    24     37   59   3   33   3    pfx  423

   GTCNV table is (15 of 1000) 1% full

5. Backup the new changes using the chg-db:action=backup:dest=fixed command. These messages should appear, the active Maintenance and Administration Subsystem Processor (MASP) appears first.

   BACKUP (FIXED) : MASP A - Backup starts on active MASP.
   BACKUP (FIXED) : MASP A - Backup on active MASP to fixed disk complete.
   BACKUP (FIXED) : MASP A - Backup starts on standby MASP.
   BACKUP (FIXED) : MASP A - Backup on standby MASP to fixed disk complete.


Figure 2-151 Add a GT Conversion Table Entry - Sheet 1 of 4

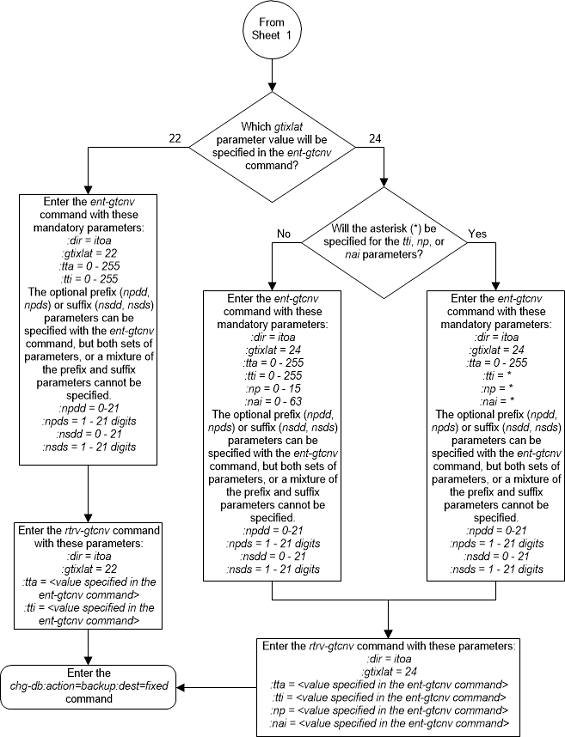

Figure 2-152 Add a GT Conversion Table Entry - Sheet 2 of 4

Figure 2-153 Add a GT Conversion Table Entry - Sheet 3 of 4

Figure 2-154 Add a GT Conversion Table Entry - Sheet 4 of 4
