Adding a Service Module

This procedure is used to add a service module to support the Global Title Translation or Enhanced Global Title Translation feature to the database using the ent-card command.

A service module can be one of these cards.
  • E5-SM8G-B
  • SLIC

The card that is used as a service module depends on the GTT related features that are being used and the features that will enabled after this procedure is performed. The features or feature combinations shown in Table 2-31 show the type of card that must be installed in the EAGLE to meet the minimum EAGLE performance requirements. The features that are currently being used by the EAGLE are shown in the rtrv-feat or rtrv-ctrl-feat command outputs.

Table 2-31 Service Module and Feature Combinations

Card Features

E5-SM8G

SLIC

Any of these features:
  • Throughput Capacity - SMs can be used if this feature is enabled, but to achieve the maximum transactions per second for the EAGLE, shown in Table 2-35, all service modules must be E5-SM8G cards.
  • Support for 16 GTT Lengths in VGTT
  • Flexible Linkset Optional Based Routing
  • ELAP configuration feature and a LNP Telephone Number Quantity of 240 million numbers to 384 million numbers
  • GTT Action - DUPLICATE
  • Pre-LNP Query Service GTT Processing
  • Fall-Back to GTT after LNP Message Relay Service
  • ANSI-41 Analyzed Information Query (ANSI41 AIQ)
  • GTT Action - DISCARD
  • GTT Action - FORWARD
  • Info Analyzed Relay Base
  • Service Portability
  • Enhanced GSM MAP Screening
  • G-FLEX
  • V-FLEX
  • G-Port
  • INP
  • Prepaid SMS Intercept Phase 1 (PPSMS)
  • ELAP Configuration feature and an LNP Telephone Number Quantity that is less than 240 million numbers. Refer to Administration and LNP Feature Activation Guide for ELAP for the minimum requirements for service modules used with the LNP feature.
  • XGTT Table Expansion for 1,000,000 GTT entries
  • Equipment Identity Register(EIR)
  • Flexible GTT Load Sharing
  • IDP Screening for Prepaid
  • Prepaid IDP Query Relay
  • Origin-Based SCCP Routing
  • Hex Digit Support for GTT
  • A-Port)
  • IS41 GSM Migration
  • Weighted GTT Load Sharing
  • Transaction-Based GTT Load Sharing
  • ANSI-41 INP Query
  • MO SMS B-Party Routing
  • MO-based GSM SMS NP
  • MO-based IS41 SMS NP
  • MO SMS IS41-to-GSM Migration
  • MO SMS ASD
  • MO SMS GRN
  • Portability Check for MO SMS
  • TIF Number Portability
  • TIF SCS Forwarding
  • TIF Simple Number Substitution
  • TIF ASD
  • TIF GRN
  • ATI Number Portability Query (ATINP)
  • GSM MAP Screening

or

GTT and EGTT (if the Enhanced Global Title Translation feature is on) in combination with at least 2 of these features:

  • Variable-Length Global Title Translation (VGTT)
  • Advanced GT Modification (with or without the ANSI/ITU SCCP Conversion feature)
  • IGTTLS
  • XGTT Table Expansion enabled for 400,000GTT entries
  • XMAP Table Expansion enabled for either 3000 or 2000MAP table entries

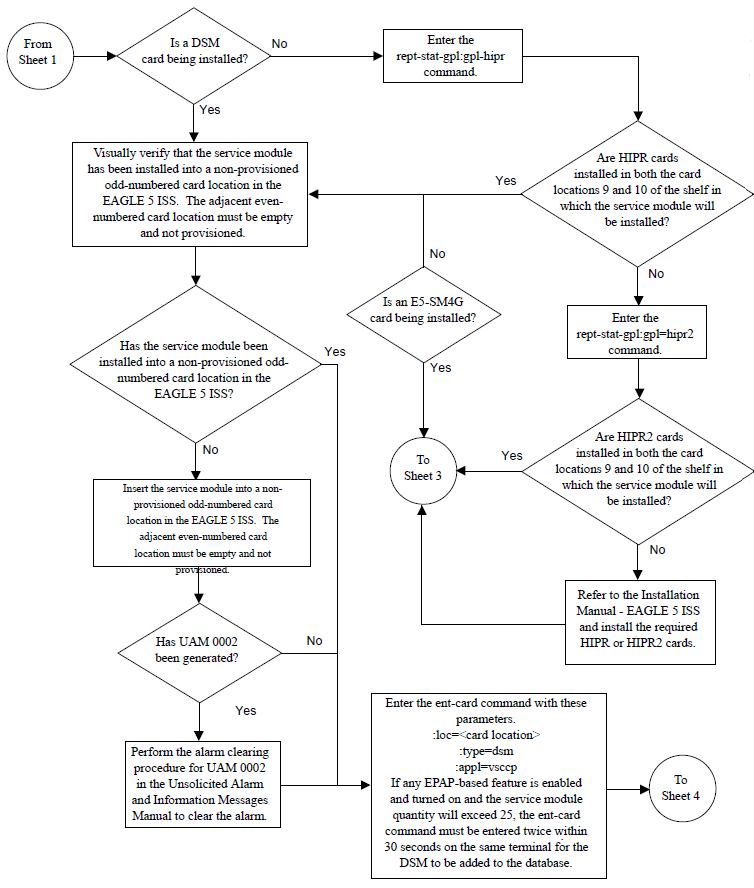

The E5-SM8G-B can be inserted only in the odd numbered card slots of the control or the extension shelf. Slots 09 and 10 of each shelf contains the HIPR2 card, thus the E5-SM8G-B cannot be inserted in slot 09 and 10. The E5-SM8G-B can be inserted in the control shelf, but only in slots 01, 03, 05, 07 and 11. The E5-SM8G-B occupies two card slots, so the even numbered card slot adjacent to the odd numbered slot where the E5-SM8G-B has been inserted must be empty, as shown in Table 2-32. The E5-SM8G-B is connected to the network through the odd numbered card slot connector. The E5-SM8G-B requires two HIPR2 cards in the shelf where it is installed.

The SLIC can be inserted only in the odd numbered card slots if it is provisioned with the type=dsm parameter of the ent-card command. The SLIC can be inserted in odd or even numbered card slots if it is provisioned with the type=slic parameter of the ent-card command.

Table 2-32 Card Locations

Location of the E5-SM8G-B Empty Card Location
Slot 11 Slot 12
Slot 13 Slot 14
Slot 15 Slot 16
Slot 17 Slot 18

The ent-card command uses these parameters:

:loc – The location of the card being added to the database.

:type – The type of card being added to the database. The value of this parameter is dsm or slic.

:appl – The application software that is assigned to the card. The value of this parameter is vsccp.

:data – The data type of the card when running the EPAP Data Split feature and the Dual ExAP Configuration feature. The value of this parameter is dn or imsi for the EPAP Data Split feature and ELAP, EPAP or GTT for the Dual ExAP Configuration feature.

The shelf to which the card is to be added must already be in the database. This can be verified with the rtrv-shlf command. If the shelf is not in the database, perform the "Adding a Shelf" procedure in Database Administration – System Management User's Guide.

The card cannot be added to the database if the specified card location already has a card assigned to it.

Note:

If you want to add an E5-SM8G-B or SLIC card as the service module, verify the temperature threshold settings for the appropriate card by performing the "Changing the High-Capacity Card Temperature Alarm Thresholds" procedure in Database Administration - SS7 User's Guide. The E5-SM8G-B card also requires a fan tray.

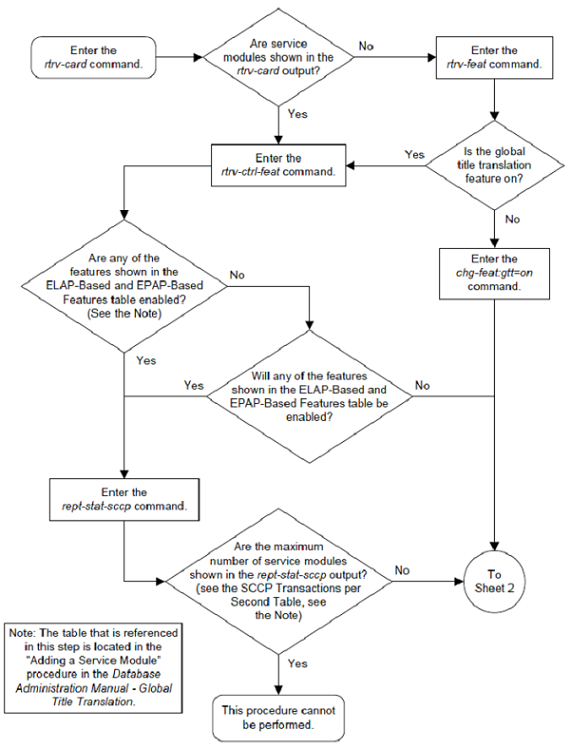

  1. Display the cards in the EAGLE using the rtrv-card command to verify that the card location for the new service module is not provisioned. This is an example of the possible output.

    Note:

    Cards should be distributed throughout the EAGLE for proper power distribution. Refer to Installation Guide for the shelf power distribution.

    This is an example of the possible output:

    tklc1110501 15-06-24 16:59:18 EST  EAGLE5 46.2.0-65.53.1
    CARD   TYPE      APPL     LSET NAME   LINK SLC LSET NAME   LINK SLC  DATA
    1101   DCM       IPLIM    stpb058a    A    0   stpb058a    B    6
                              stpb058a    A1   1   stpb058a    B1   7
                              stpd078a    A2   0   stpd078a    B2   6
                              stpd078a    A3   1   stpd078a    B3   7
    1102   TSM       GLS
    1103   DCM       IPLIM    stpb058a    A    8   stpd078a    B    8
                              stpb058a    A1   9   stpd078a    B1   9
                              stpb058a    A2   10  stpd078a    B2   10
                              stpb058a    A3   11  stpd078a    B3   11
    1104   TSM       GLS
    1105   DCM       SS7IPGW  sc1b059a    A    0
    1106   DCM       SS7IPGW  sc1b059a    A    1
    1107   DSM       VSCCP                                               ELAP
    1111   MCPM      MCP
    1112   MCPM      MCP
    1113   E5-MCAP   OAM
    1114   TDM-A
    1115   E5-MCAP   OAM
    1116   TDM-B
    1117   MDAL
    1201   LIMATM    ATMANSI  ls1201a00   A    0   ls1201a04   B    0
    1204   LIMT1     SS7ANSI  ls1204a00   A    0   ls1204a01   A1   0
                              ls1204a02   A2   0   ls1204a00   A4   1
                              ls1204a01   A5   1   ls1204a02   A6   1
    1205   LIME1     CCS7ITU  ls1205i00   A    0   ls1205i04   B    0
                              ls1205i01   A1   0   ls1205i05   B1   0
                              ls1205i02   A2   0   ls1205i06   B2   0
                              ls1205i03   A3   0   ls1205i07   B3   0
                              ls1205i08   A4   0   ls1205i12   B4   0
                              ls1205i09   A5   0   ls1205i13   B5   0
                              ls1205i10   A6   0   ls1205i14   B6   0
                              ls1205i11   A7   0   ls1205i15   B7   0
                              ls1205i04   A8   1   ls1205i00   B8   1
                              ls1205i05   A9   1   ls1205i01   B9   1
                              ls1205i06   A10  1   ls1205i02   B10  1
                              ls1205i07   A11  1   ls1205i03   B11  1
                              ls1205i12   A12  1   ls1205i08   B12  1
                              ls1205i13   A13  1   ls1205i09   B13  1
                              ls1205i10   B14  1   ls1205i11   B15  1
    1206   LIME1     CCS7ITU  ls1206n00   A    0   ls1206n04   B    0
                              ls1206n01   A1   0   ls1206n05   B1   0
                              ls1206n02   A2   0   ls1206n06   B2   0
                              ls1206n03   A3   0   ls1206n07   B3   0
                              ls1206n08   A4   0   ls1206n12   B4   0
                              ls1206n09   A5   0   ls1206n13   B5   0
                              ls1206n10   A6   0   ls1206n14   B6   0
                              ls1206n11   A7   0   ls1206n15   B7   0
                              ls1206n12   A8   1   ls1206n00   B8   1
                              ls1206n13   A9   1   ls1206n01   B9   1
                              ls1206n14   A10  1   ls1206n02   B10  1
                              ls1206n15   A11  1   ls1206n03   B11  1
                              ls1206n04   A12  1   ls1206n08   B12  1
                              ls1206n05   A13  1   ls1206n09   B13  1
                              ls1206n10   B14  1   ls1206n11   B15  1
    1207   LIME1     CCS7ITU  ls1207i00   A    0   ls1207i04   B    0
                              ls1207i00   A1   1   ls1207i04   B1   1
                              ls1207i02   A2   0   ls1207i06   B2   0
                              ls1207i02   A3   1   ls1207i06   B3   1
                              ls1207i08   A4   0   ls1207i12   B4   0
                              ls1207i08   A5   1   ls1207i12   B5   1
                              ls1207i10   A6   0   ls1207i14   B6   0
                              ls1207i10   A7   1   ls1207i14   B7   1
                              ls1207i00   A8   2   ls1207i04   B8   2
                              ls1207i00   A9   3   ls1207i04   B9   3
                              ls1207i02   A10  2   ls1207i06   B10  2
                              ls1207i02   A11  3   ls1207i06   B11  3
                              ls1207i08   A12  2   ls1207i12   B12  2
                              ls1207i08   A13  3   ls1207i12   B13  3
                              ls1207i10   A14  2   ls1207i14   B14  2
                              ls1207i10   A15  3   ls1207i14   B15  3
    1208   LIMT1     SS7ANSI  ls1208a00   A    0   ls1208a04   B    0
                              ls1208a01   A1   0   ls1208a05   B1   0
                              ls1208a02   A2   0   ls1208a06   B2   0
                              ls1208a03   A3   0   ls1208a07   B3   0
                              ls1208a08   A4   0   ls1208a09   A5   0
                              ls1208a10   A6   0   ls1208a11   A7   0
                              ls1208a04   A8   1   ls1208a00   B8   1
                              ls1208a05   A9   1   ls1208a01   B9   1
                              ls1208a06   A10  1   ls1208a02   B10  1
                              ls1208a07   A11  1   ls1208a03   B11  1
                              ls1208a08   B12  1   ls1208a09   B13  1
                              ls1208a10   B14  1   ls1208a11   B15  1
    1212   LIME1     CCS7ITU  lsstpb100i  A    0   lsstpb101i  B    0
                              lsstpb100i  A1   1   lsstpb101i  B1   1
                              lsstpb100i  A2   2   lsstpb101i  B2   2
                              lsstpb100i  A3   3   lsstpb101i  B3   3
                              lsstpb100i  A4   4   lsstpb101i  B4   4
                              lsstpb100i  A5   5   lsstpb101i  B5   5
                              lsstpb100i  A6   6   lsstpb101i  B6   6
                              lsstpb100i  A7   7   lsstpb101i  B7   7
                              lsstpb102i  A8   0   lsstpb103i  B8   0
                              lsstpb102i  A9   1   lsstpb103i  B9   1
                              lsstpb102i  A10  2   lsstpb103i  B10  2
                              lsstpb102i  A11  3   lsstpb103i  B11  3
                              lsstpb102i  A12  4   lsstpb103i  B12  4
                              lsstpb102i  A13  5   lsstpb103i  B13  5
                              lsstpb102i  A14  6   lsstpb103i  B14  6
                              lsstpb102i  A15  7   lsstpb103i  B15  7
                              lsstpb104i  A16  0   lsstpb106i  B16  0
                              lsstpb104i  A17  1   lsstpb106i  B17  1
                              lsstpb104i  A18  2   lsstpb106i  B18  2
                              lsstpb104i  A19  3   lsstpb106i  B19  3
                              lsstpb104i  A20  4   lsstpb106i  B20  4
                              lsstpb104i  A21  5   lsstpb106i  B21  5
                              lsstpb104i  A22  6   lsstpb106i  B22  6
                              lsstpb104i  A23  7   lsstpb106i  B23  7
                              lsstpb105i  A24  0   lsstpb107i  B24  0
                              lsstpb105i  A25  1   lsstpb107i  B25  1
                              lsstpb105i  A26  2   lsstpb107i  B26  2
                              lsstpb105i  A27  3   lsstpb107i  B27  3
                              lsstpb105i  A28  4   lsstpb107i  B28  4
                              lsstpb105i  A29  5   lsstpb107i  B29  5
                              lsstpb105i  A30  6   lsstpb107i  B30  6
                              lsstpb105i  A31  7   lsstpb107i  B31  7
    1214   LIMT1     SS7ANSI  lsstpb108a  A    1   lsstpb108a  B    2
    1215   LIME1     CCS7ITU  ls1215c00   A    0   ls1215c04   B    0
                              ls1215c01   A1   0   ls1215c05   B1   0
                              ls1215c02   A2   0   ls1215c06   B2   0
                              ls1215c03   A3   0   ls1215c07   B3   0
                              ls1215c08   A4   0   ls1215c09   A5   0
                              ls1215c10   A6   0   ls1215c11   A7   0
                              ls1215c04   A8   1   ls1215c00   B8   1
                              ls1215c05   A9   1   ls1215c01   B9   1
                              ls1215c06   A10  1   ls1215c02   B10  1
                              ls1215c07   A11  1   ls1215c03   B11  1
                              ls1215c08   B12  1   ls1215c09   B13  1
                              ls1215c10   B14  1   ls1215c11   B15  1
    1216   LIME1     CCS7ITU  ls1216i00   A    0   ls1216i04   B    0
                              ls1216i00   A1   1   ls1216i04   B1   1
                              ls1216i00   A2   2   ls1216i04   B2   2
                              ls1216i00   A3   3   ls1216i04   B3   3
                              ls1216i00   A4   4   ls1216i04   B4   4
                              ls1216i00   A5   5   ls1216i04   B5   5
                              ls1216i00   A6   6   ls1216i04   B6   6
                              ls1216i00   A7   7   ls1216i04   B7   7
                              ls1216i00   A8   8   ls1216i04   B8   8
                              ls1216i00   A9   9   ls1216i04   B9   9
                              ls1216i00   A10  10  ls1216i04   B10  10
                              ls1216i00   A11  11  ls1216i04   B11  11
                              ls1216i00   A12  12  ls1216i04   B12  12
                              ls1216i00   A13  13  ls1216i04   B13  13
                              ls1216i00   A14  14  ls1216i04   B14  14
                              ls1216i00   A15  15  ls1216i04   B15  15
    1217   IPSM      IPS
    1218   LIME1     CCS7ITU  ls1218c00   A    0   ls1218c01   A1   0
                              ls1218c02   A2   0   ls1218c03   A3   0
                              ls1218c00   A4   1   ls1218c01   A5   1
                              ls1218c02   A6   1   ls1218c03   A7   1
    1301   LIMT1     SS7ANSI  ls1301a01   A    0   ls1301a01   B    1
                              ls1301a02   A1   0   ls1301a02   B1   1
                              ls1301a03   A2   0   ls1301a03   B2   1
                              ls1301a04   A3   0   ls1301a04   B3   1
                              ls1301a05   A4   0   ls1301a05   B4   1
                              ls1301a06   A5   0   ls1301a06   B5   1
                              ls1301a07   A6   0   ls1301a07   B6   1
                              ls1302a01   A7   0   ls1302a01   B7   1
                              ls1302a02   A8   0   ls1302a02   B8   1
                              ls1302a03   A9   0   ls1302a03   B9   1
                              ls1302a04   A10  0   ls1302a04   B10  1
                              ls1302a05   A11  0   ls1302a05   B11  1
                              ls1302a06   A12  0   ls1302a06   B12  1
                              ls1303a01   A13  0   ls1303a01   B13  1
                              ls1303a02   A14  0   ls1303a02   B14  1
                              ls1301a27   A15  0   ls1301a27   B15  1
    1302   LIMT1     SS7ANSI  ls1301a00   A    0   ls1303a00   B    0
                              ls1301a00   A1   1   ls1303a00   B1   1
                              ls1301a00   A2   2   ls1303a00   B2   2
                              ls1301a00   A3   3   ls1303a00   B3   3
                              ls1301a00   A4   4   ls1303a00   B4   4
                              ls1301a00   A5   5   ls1303a00   B5   5
                              ls1301a00   A6   6   ls1303a00   B6   6
                              ls1301a00   A7   7   ls1303a00   B7   7
                              ls1301a00   A8   8   ls1303a00   B8   8
                              ls1301a00   A9   9   ls1303a00   B9   9
                              ls1301a00   A10  10  ls1303a00   B10  10
                              ls1301a00   A11  11  ls1303a00   B11  11
                              ls1301a00   A12  12  ls1303a00   B12  12
                              ls1301a00   A13  13  ls1303a00   B13  13
                              ls1301a00   A14  14  ls1303a00   B14  14
                              ls1301a00   A15  15  ls1303a00   B15  15
    1313   LIME1ATM  ATMITU   ls1313i00   A    0   ls1313i04   B    0
                              ls1313i01   A1   0
    1314   LIMT1     SS7ANSI  ls1314a02   A    0   ls2214a02   B    0
                              ls1314a02   A1   1   ls2214a02   B1   1
                              ls1314a03   A2   0   ls2214a03   B2   0
                              ls1314a03   A3   1   ls2214a03   B3   1
                              ls1314a04   A4   0   ls2214a04   B4   0
                              ls1314a04   A5   1   ls2214a04   B5   1
                              ls1314a05   A6   0   ls2214a05   B6   0
                              ls1314a05   A7   1   ls2214a05   B7   1
                              ls1314a06   A8   0   ls2214a06   B8   0
                              ls1314a06   A9   1   ls2214a06   B9   1
                              ls1314a07   A10  0   ls5213a07   B10  0
                              ls1314a07   A11  1   ls5213a07   B11  1
                              ls2114a00   A12  0   ls5313a00   B12  0
                              ls2114a00   A13  1   ls5313a00   B13  1
                              ls2114a01   A14  0   ls5313a01   B14  0
                              ls2114a01   A15  1   ls5313a01   B15  1
    1315   DCM       SS7IPGW  ls1315a00   A    0
    1316   DCM       SS7IPGW  ls1315a00   A    1
    1317   DSM       VSCCP                                               ELAP
    2112   LIMT1     SS7ANSI  ls2112a00   A    0   ls2112a04   B    0
                              ls2112a00   A1   1   ls2112a04   B1   1
                              ls2112a00   A2   2   ls2112a04   B2   2
                              ls2112a00   A3   3   ls2112a04   B3   3
                              ls2112a00   A4   4   ls2112a04   B4   4
                              ls2112a00   A5   5   ls2112a04   B5   5
                              ls2112a00   A6   6   ls2112a04   B6   6
                              ls2112a00   A7   7   ls2112a04   B7   7
                              ls2112a00   A8   8   ls2112a04   B8   8
                              ls2112a00   A9   9   ls2112a04   B9   9
                              ls2112a00   A10  10  ls2112a04   B10  10
                              ls2112a00   A11  11  ls2112a04   B11  11
                              ls2112a00   A12  12  ls2112a04   B12  12
                              ls2112a00   A13  13  ls2112a04   B13  13
                              ls2112a00   A14  14  ls2112a04   B14  14
                              ls2112a00   A15  15  ls2112a04   B15  15
    2113   LIME1ATM  ATMITU   ls1313i00   A    1   ls1313i04   B    1
                              ls1313i01   A1   1
    2114   LIMT1     SS7ANSI
    2115   DCM       SS7IPGW  ls1315a00   A    2
    2116   DCM       SS7IPGW  ls1315a00   A    3
    2117   DCM       SS7IPGW  ls1315a00   A    4
    2118   DCM       SS7IPGW  ls1315a00   A    5
    2201   LIMATM    ATMANSI  ls2201a00   A    0   ls2201a04   B    0
                              ls2201a01   A1   0
    2202   LIMATM    ATMANSI  ls2202a00   A    0   ls2202a04   B    0
                              ls2202a01   A1   0
    2208   LIME1ATM  ATMITU   ls2208i00   A    0   ls2208n04   B    0
    2211   DSM       VSCCP                                               GTT
    2213   LIME1ATM  ATMITU   ls2213i00   A    0   ls2213i04   B    0
                              ls2213i01   A1   0
    2216   LIMT1     SS7ANSI  ls2216a00   A    0   ls2216a04   B    0
                              ls2216a00   A1   1   ls2216a04   B1   1
                              ls2216a00   A2   2   ls2216a04   B2   2
                              ls2216a00   A3   3   ls2216a04   B3   3
                              ls2216a00   A4   4   ls2216a04   B4   4
                              ls2216a00   A5   5   ls2216a04   B5   5
                              ls2216a00   A6   6   ls2216a04   B6   6
                              ls2216a00   A7   7   ls2216a04   B7   7
                              ls2216a00   A8   8   ls2216a04   B8   8
                              ls2216a00   A9   9   ls2216a04   B9   9
                              ls2216a00   A10  10  ls2216a04   B10  10
                              ls2216a00   A11  11  ls2216a04   B11  11
                              ls2216a00   A12  12  ls2216a04   B12  12
                              ls2216a00   A13  13  ls2216a04   B13  13
                              ls2216a00   A14  14  ls2216a04   B14  14
                              ls2216a00   A15  15  ls2216a04   B15  15
    2217   DSM       VSCCP                                               ELAP
    2301   LIMATM    ATMANSI  ls2201a00   A    1   ls2201a04   B    1
                              ls2201a01   A1   1
    2302   LIMATM    ATMANSI  ls2202a00   A    1   ls2202a04   B    1
                              ls2202a01   A1   1
    2305   DSM       VSCCP                                               IMSI
    2308   LIMATM    ATMANSI  ls1201a00   A    1   ls1201a04   B    1
    2311   DSM       VSCCP                                               IMSI
    2313   LIME1ATM  ATMITU   ls2213i00   A    1   ls2213i04   B    1
                              ls2213i01   A1   1
    2317   DSM       VSCCP                                               ELAP
    3101   DCM       SS7IPGW  sc1d079a    A    0
    3102   IPSM      IPS
    3103   DSM       VSCCP                                               ELAP
    3108   LIME1ATM  ATMITU   ls3108i00   A    0   ls2208i00   B    1
                              ls3108n01   A1   0
    3111   DSM       VSCCP                                               DN
    3113   LIME1ATM  ATMITU   ls3108i00   A    1   ls3113n04   B    0
                              ls3113n01   A1   0
    3114   STC       EROUTE
    3116   STC       EROUTE
    3117   DCM       SS7IPGW  ls1315a00   A    6
    3118   DCM       SS7IPGW  ls1315a00   A    7
    3201   DSM       VSCCP                                               ELAP
    3203   DSM       VSCCP                                               ELAP
    3205   DSM       VSCCP                                               ELAP
    3207   DSM       VSCCP                                               ELAP
    3211   ENET      IPSG     ls3211a00   A    0
    3212   ENET      IPSG     ls3211a00   A    1
    3213   ENET      IPSG     ls3211a00   A    2
    3214   ENET      IPSG     ls3211a00   A    3
    3215   ENET      IPSG     ls3211a00   A    4
    3216   ENET      IPSG     ls3211a00   A    5
    3217   DSM       VSCCP                                               ELAP
    3301   DCM       SS7IPGW  ls3301a00   A    0
    3302   DCM       SS7IPGW  ls3301a00   A    1
    3303   DCM       SS7IPGW  ls3301a00   A    2
    3304   DCM       SS7IPGW  ls3301a00   A    3
    3305   DCM       SS7IPGW  ls3301a00   A    4
    3306   DCM       SS7IPGW  ls3301a00   A    5
    3307   DCM       SS7IPGW  ls3301a00   A    6
    3308   DCM       SS7IPGW  ls3301a00   A    7
    3311   DCM       SS7IPGW  ls3311a00   A    0
    3312   DCM       SS7IPGW  ls3311a00   A    1
    3313   DCM       SS7IPGW  ls3311a00   A    2
    3314   DCM       SS7IPGW  ls3311a00   A    3
    3315   DCM       SS7IPGW  ls3311a00   A    4
    3316   DCM       SS7IPGW  ls3311a00   A    5
    3317   DCM       SS7IPGW  ls3311a00   A    6
    3318   DCM       SS7IPGW  ls3311a00   A    7
    4107   DSM       VSCCP                                               IMSI
    4111   DSM       VSCCP                                               GTT
    4113   LIMT1     SS7ANSI  ls4113a00   A    0   ls4113a04   B    0
                              ls4113a00   A1   1   ls4113a04   B1   1
                              ls4113a00   A2   2   ls4113a04   B2   2
                              ls4113a00   A3   3   ls4113a04   B3   3
                              ls4113a00   A4   4   ls4113a04   B4   4
                              ls4113a00   A5   5   ls4113a04   B5   5
                              ls4113a00   A6   6   ls4113a04   B6   6
                              ls4113a00   A7   7   ls4113a04   B7   7
                              ls4113a00   A8   8   ls4113a04   B8   8
                              ls4113a00   A9   9   ls4113a04   B9   9
                              ls4113a00   A10  10  ls4113a04   B10  10
                              ls4113a00   A11  11  ls4113a04   B11  11
                              ls4113a00   A12  12  ls4113a04   B12  12
                              ls4113a00   A13  13  ls4113a04   B13  13
                              ls4113a00   A14  14  ls4113a04   B14  14
                              ls4113a00   A15  15  ls4113a04   B15  15
    4115   DCM       SS7IPGW  ls4115a00   A    0
    4116   DCM       SS7IPGW  ls4115a00   A    1
    4117   DCM       SS7IPGW  ls4115a00   A    2
    4118   DCM       SS7IPGW  ls4115a00   A    3
    4207   DSM       VSCCP                                               DN
    4212   LIME1     CCS7ITU  ls4212n00   A    0   ls4212n04   B    0
                              ls4212n00   A1   1   ls4212n04   B1   1
                              ls4212n02   A2   0   ls4212n06   B2   0
                              ls4212n02   A3   1   ls4212n06   B3   1
                              ls4212n08   A4   0   ls4212n12   B4   0
                              ls4212n08   A5   1   ls4212n12   B5   1
                              ls4212n10   A6   0   ls4212n14   B6   0
                              ls4212n10   A7   1   ls4212n14   B7   1
                              ls4212n00   A8   2   ls4212n04   B8   2
                              ls4212n00   A9   3   ls4212n04   B9   3
                              ls4212n02   A10  2   ls4212n06   B10  2
                              ls4212n02   A11  3   ls4212n06   B11  3
                              ls4212n08   A12  2   ls4212n12   B12  2
                              ls4212n08   A13  3   ls4212n12   B13  3
                              ls4212n10   A14  2   ls4212n14   B14  2
                              ls4212n10   A15  3   ls4212n14   B15  3
    4213   LIMT1     SS7ANSI  ls4213a00   A    0   ls4213a04   B    0
                              ls4213a00   A1   1   ls4213a04   B1   1
                              ls4213a02   A2   0   ls4213a06   B2   0
                              ls4213a02   A3   1   ls4213a06   B3   1
                              ls4213a08   A4   0   ls4213a12   B4   0
                              ls4213a08   A5   1   ls4213a12   B5   1
                              ls4213a10   A6   0   ls4213a14   B6   0
                              ls4213a10   A7   1   ls4213a14   B7   1
                              ls4213a00   A8   2   ls4213a04   B8   2
                              ls4213a00   A9   3   ls4213a04   B9   3
                              ls4213a02   A10  2   ls4213a06   B10  2
                              ls4213a02   A11  3   ls4213a06   B11  3
                              ls4213a08   A12  2   ls4213a12   B12  2
                              ls4213a08   A13  3   ls4213a12   B13  3
                              ls4213a10   A14  2   ls4213a14   B14  2
                              ls4213a10   A15  3   ls4213a14   B15  3
    4217   DCM       SS7IPGW  ls4115a00   A    4
    4218   DCM       SS7IPGW  ls4115a00   A    5
    4311   DSM       VSCCP                                               DN
    4313   LIMT1     SS7ANSI  ls4313a00   A    0   ls4313a04   B    0
                              ls4313a00   A1   1   ls4313a04   B1   1
                              ls4313a02   A2   0   ls4313a06   B2   0
                              ls4313a02   A3   1   ls4313a06   B3   1
                              ls4313a08   A4   0   ls4313a12   B4   0
                              ls4313a08   A5   1   ls4313a12   B5   1
                              ls4313a10   A6   0   ls4313a14   B6   0
                              ls4313a10   A7   1   ls4313a14   B7   1
                              ls4313a00   A8   2   ls4313a04   B8   2
                              ls4313a00   A9   3   ls4313a04   B9   3
                              ls4313a02   A10  2   ls4313a06   B10  2
                              ls4313a02   A11  3   ls4313a06   B11  3
                              ls4313a08   A12  2   ls4313a12   B12  2
                              ls4313a08   A13  3   ls4313a12   B13  3
                              ls4313a10   A14  2   ls4313a14   B14  2
                              ls4313a10   A15  3   ls4313a14   B15  3
    4317   DCM       SS7IPGW  ls4115a00   A    6
    4318   DCM       SS7IPGW  ls4115a00   A    7
    5101   LIME1     CCS7ITU  ls5101i00   A    0   ls5101i04   B    0
                              ls5101i00   A1   1   ls5101i04   B1   1
                              ls5101i00   A2   2   ls5101i04   B2   2
                              ls5101i00   A3   3   ls5101i04   B3   3
                              ls5101i00   A4   4   ls5101i04   B4   4
                              ls5101i00   A5   5   ls5101i04   B5   5
                              ls5101i00   A6   6   ls5101i04   B6   6
                              ls5101i00   A7   7   ls5101i04   B7   7
                              ls5101i00   A8   8   ls5101i04   B8   8
                              ls5101i00   A9   9   ls5101i04   B9   9
                              ls5101i00   A10  10  ls5101i04   B10  10
                              ls5101i00   A11  11  ls5101i04   B11  11
                              ls5101i00   A12  12  ls5101i04   B12  12
                              ls5101i00   A13  13  ls5101i04   B13  13
                              ls5101i00   A14  14  ls5101i04   B14  14
                              ls5101i00   A15  15  ls5101i04   B15  15
    5102   LIME1     CCS7ITU  ls5102i00   A    0   ls5102i04   B    0
                              ls5102i00   A1   1   ls5102i04   B1   1
                              ls5102i02   A2   0   ls5102i06   B2   0
                              ls5102i02   A3   1   ls5102i06   B3   1
                              ls5102i08   A4   0   ls5102i12   B4   0
                              ls5102i08   A5   1   ls5102i12   B5   1
                              ls5102i10   A6   0   ls5102i14   B6   0
                              ls5102i10   A7   1   ls5102i14   B7   1
                              ls5102i00   A8   2   ls5102i04   B8   2
                              ls5102i00   A9   3   ls5102i04   B9   3
                              ls5102i02   A10  2   ls5102i06   B10  2
                              ls5102i02   A11  3   ls5102i06   B11  3
                              ls5102i08   A12  2   ls5102i12   B12  2
                              ls5102i08   A13  3   ls5102i12   B13  3
                              ls5102i10   A14  2   ls5102i14   B14  2
                              ls5102i10   A15  3   ls5102i14   B15  3
    5103   LIME1     CCS7ITU  ls5103i00   A    0   ls5103i04   B    0
                              ls5103i00   A1   1   ls5103i04   B1   1
                              ls5103i02   A2   0   ls5103i06   B2   0
                              ls5103i02   A3   1   ls5103i06   B3   1
                              ls5103i08   A4   0   ls5103i12   B4   0
                              ls5103i08   A5   1   ls5103i12   B5   1
                              ls5103i10   A6   0   ls5103i14   B6   0
                              ls5103i10   A7   1   ls5103i14   B7   1
                              ls5103i00   A8   2   ls5103i04   B8   2
                              ls5103i00   A9   3   ls5103i04   B9   3
                              ls5103i02   A10  2   ls5103i06   B10  2
                              ls5103i02   A11  3   ls5103i06   B11  3
                              ls5103i08   A12  2   ls5103i12   B12  2
                              ls5103i08   A13  3   ls5103i12   B13  3
                              ls5103i10   A14  2   ls5103i14   B14  2
                              ls5103i10   A15  3   ls5103i14   B15  3
    5104   LIMATM    ATMANSI  stpd078a    A    3
    5105   LIMATM    ATMANSI  stpb058a    A    4
    5106   LIMATM    ATMANSI  stpd078a    A    4
    5107   LIMATM    ATMANSI  stpb058a    A    5
    5108   LIMATM    ATMANSI  stpd078a    A    5
    5112   LIME1     CCS7ITU  ls5112n00   A    0   ls5112n04   B    0
                              ls5112n00   A1   1   ls5112n04   B1   1
                              ls5112n02   A2   0   ls5112n06   B2   0
                              ls5112n02   A3   1   ls5112n06   B3   1
                              ls5112n08   A4   0   ls5112n12   B4   0
                              ls5112n08   A5   1   ls5112n12   B5   1
                              ls5112n10   A6   0   ls5112n14   B6   0
                              ls5112n10   A7   1   ls5112n14   B7   1
                              ls5112n00   A8   2   ls5112n04   B8   2
                              ls5112n00   A9   3   ls5112n04   B9   3
                              ls5112n02   A10  2   ls5112n06   B10  2
                              ls5112n02   A11  3   ls5112n06   B11  3
                              ls5112n08   A12  2   ls5112n12   B12  2
                              ls5112n08   A13  3   ls5112n12   B13  3
                              ls5112n10   A14  2   ls5112n14   B14  2
                              ls5112n10   A15  3   ls5112n14   B15  3
    5113   LIMT1     SS7ANSI  ls5113a00   A    0   ls5113a04   B    0
                              ls5113a00   A1   1   ls5113a04   B1   1
                              ls5113a02   A2   0   ls5113a06   B2   0
                              ls5113a02   A3   1   ls5113a06   B3   1
                              ls5113a08   A4   0   ls5113a12   B4   0
                              ls5113a08   A5   1   ls5113a12   B5   1
                              ls5113a10   A6   0   ls5113a14   B6   0
                              ls5113a10   A7   1   ls5113a14   B7   1
                              ls5113a00   A8   2   ls5113a04   B8   2
                              ls5113a00   A9   3   ls5113a04   B9   3
                              ls5113a02   A10  2   ls5113a06   B10  2
                              ls5113a02   A11  3   ls5113a06   B11  3
                              ls5113a08   A12  2   ls5113a12   B12  2
                              ls5113a08   A13  3   ls5113a12   B13  3
                              ls5113a10   A14  2   ls5113a14   B14  2
                              ls5113a10   A15  3   ls5113a14   B15  3
    5117   DCM       SS7IPGW  ls5117a00   A    0
    5118   DCM       SS7IPGW  ls5117a00   A    1
    5208   LIME1     CCS7ITU  ls5208i00   A    0   ls5208i04   B    0
                              ls5208i00   A1   1   ls5208i04   B1   1
                              ls5208i00   A2   2   ls5208i04   B2   2
                              ls5208i00   A3   3   ls5208i04   B3   3
                              ls5208i00   A4   4   ls5208i04   B4   4
                              ls5208i00   A5   5   ls5208i04   B5   5
                              ls5208i00   A6   6   ls5208i04   B6   6
                              ls5208i00   A7   7   ls5208i04   B7   7
                              ls5208i00   A8   8   ls5208i04   B8   8
                              ls5208i00   A9   9   ls5208i04   B9   9
                              ls5208i00   A10  10  ls5208i04   B10  10
                              ls5208i00   A11  11  ls5208i04   B11  11
                              ls5208i00   A12  12  ls5208i04   B12  12
                              ls5208i00   A13  13  ls5208i04   B13  13
                              ls5208i00   A14  14  ls5208i04   B14  14
                              ls5208i00   A15  15  ls5208i04   B15  15
    5211   DSM       VSCCP                                               IMSI
    5215   DCM       SS7IPGW  ls5117a00   A    2
    5216   DCM       SS7IPGW  ls5117a00   A    3
    5217   DCM       SS7IPGW  ls5117a00   A    4
    5218   DCM       SS7IPGW  ls5117a00   A    5
    5301   DCM       SS7IPGW  sc1d079a    A    1
    5302   IPSM      IPS
    5303   DCM       SS7IPGW  ls5117a00   A    6
    5304   DCM       SS7IPGW  ls5117a00   A    7
    5306   LIME1     CCS7ITU  ls5306i00   A    0   ls5306i04   B    0
                              ls5306i00   A1   1   ls5306i04   B1   1
                              ls5306i00   A2   2   ls5306i04   B2   2
                              ls5306i00   A3   3   ls5306i04   B3   3
                              ls5306i00   A4   4   ls5306i04   B4   4
                              ls5306i00   A5   5   ls5306i04   B5   5
                              ls5306i00   A6   6   ls5306i04   B6   6
                              ls5306i00   A7   7   ls5306i04   B7   7
                              ls5306i00   A8   8   ls5306i04   B8   8
                              ls5306i00   A9   9   ls5306i04   B9   9
                              ls5306i00   A10  10  ls5306i04   B10  10
                              ls5306i00   A11  11  ls5306i04   B11  11
                              ls5306i00   A12  12  ls5306i04   B12  12
                              ls5306i00   A13  13  ls5306i04   B13  13
                              ls5306i00   A14  14  ls5306i04   B14  14
                              ls5306i00   A15  15  ls5306i04   B15  15
    5307   DSM       VSCCP                                               GTT
    5312   LIME1     CCS7ITU  ls5312i00   A    0   ls5312i04   B    0
                              ls5312i00   A1   1   ls5312i04   B1   1
                              ls5312i02   A2   0   ls5312i06   B2   0
                              ls5312i02   A3   1   ls5312i06   B3   1
                              ls5312i08   A4   0   ls5312i12   B4   0
                              ls5312i08   A5   1   ls5312i12   B5   1
                              ls5312i10   A6   0   ls5312i14   B6   0
                              ls5312i10   A7   1   ls5312i14   B7   1
                              ls5312i00   A8   2   ls5312i04   B8   2
                              ls5312i00   A9   3   ls5312i04   B9   3
                              ls5312i02   A10  2   ls5312i06   B10  2
                              ls5312i02   A11  3   ls5312i06   B11  3
                              ls5312i08   A12  2   ls5312i12   B12  2
                              ls5312i08   A13  3   ls5312i12   B13  3
                              ls5312i10   A14  2   ls5312i14   B14  2
                              ls5312i10   A15  3   ls5312i14   B15  3
    5315   LIMT1     SS7ANSI  ls5315a00   A    0   ls5315a04   B    0
                              ls5315a00   A1   1   ls5315a04   B1   1
                              ls5315a02   A2   0   ls5315a06   B2   0
                              ls5315a02   A3   1   ls5315a06   B3   1
                              ls5315a08   A4   0   ls5315a12   B4   0
                              ls5315a08   A5   1   ls5315a12   B5   1
                              ls5315a10   A6   0   ls5315a14   B6   0
                              ls5315a10   A7   1   ls5315a14   B7   1
                              ls5315a00   A8   2   ls5315a04   B8   2
                              ls5315a00   A9   3   ls5315a04   B9   3
                              ls5315a02   A10  2   ls5315a06   B10  2
                              ls5315a02   A11  3   ls5315a06   B11  3
                              ls5315a08   A12  2   ls5315a12   B12  2
                              ls5315a08   A13  3   ls5315a12   B13  3
                              ls5315a10   A14  2   ls5315a14   B14  2
                              ls5315a10   A15  3   ls5315a14   B15  3
    5316   LIMT1     SS7ANSI  ls5316a00   A    0   ls5316a04   B    0
                              ls5316a00   A1   1   ls5316a04   B1   1
                              ls5316a00   A2   2   ls5316a04   B2   2
                              ls5316a00   A3   3   ls5316a04   B3   3
                              ls5316a00   A4   4   ls5316a04   B4   4
                              ls5316a00   A5   5   ls5316a04   B5   5
                              ls5316a00   A6   6   ls5316a04   B6   6
                              ls5316a00   A7   7   ls5316a04   B7   7
                              ls5316a00   A8   8   ls5316a04   B8   8
                              ls5316a00   A9   9   ls5316a04   B9   9
                              ls5316a00   A10  10  ls5316a04   B10  10
                              ls5316a00   A11  11  ls5316a04   B11  11
                              ls5316a00   A12  12  ls5316a04   B12  12
                              ls5316a00   A13  13  ls5316a04   B13  13
                              ls5316a00   A14  14  ls5316a04   B14  14
                              ls5316a00   A15  15  ls5316a04   B15  15
    5317   DSM       VSCCP                                               ELAP
    6101   DSM       VSCCP                                               ELAP
    6103   ENET      IPSG     ls3211a00   A    6
    6104   ENET      IPSG     ls3211a00   A    7
    6105   DSM       VSCCP                                               ELAP
    6107   DSM       VSCCP                                               ELAP
    6111   DSM       VSCCP                                               ELAP
    6113   DSM       VSCCP                                               ELAP
    6115   DSM       VSCCP                                               ELAP
    6117   DSM       VSCCP                                               ELAP

    If service modules are shown in the rtrv-card output, shown by the entry VSCCP in the APPL column, continue the procedure with 4.

    If service modules are not shown in the rtrv-card output, continue the procedure with 2.

  2. Verify that the GTT feature is on by entering the rtrv-feat command. If the GTT feature is on, the GTT field should be set to on. For this example, the GTT feature is off.

    Note:

    The rtrv-feat command output contains other fields that are not used by this procedure. To see all the fields displayed by the rtrv-feat command, refer to the rtrv-feat command description in Commands User's Guide.

    If the GTT feature is on, continue the procedure with 4.

    If the GTT feature is off, continue the procedure with 3.

  3. Turn the global title translation feature on by entering this command.

    chg-feat:gtt=on

    Note:

    Once the Global Title Translation (GTT) feature is turned on with the chg-featcommand, it cannot be turned off.

    The GTT feature must be purchased before turning it on. If you are not sure whether you have purchased the GTT feature, contact your Sales Representative or Account Representative.

    When the chg-feat has successfully completed, this message should appear.

    rlghncxa03w 09-07-25 09:57:41 GMT EAGLE5 41.1.0
    CHG-FEAT: MASP A - COMPLTD

    Continue the procedure by performing one of these steps.
    • If a card is being added, continue the procedure with 7.
    • If an E5-SM8G-B card is being added, continue the procedure with 6.
  4. Display the status of the features in the database by entering the rtrv-ctrl-feat command. The following is an example of the possible output.
    tklc1110501 15-06-24 16:53:12 EST  EAGLE5 46.2.0-65.53.1
    The following features have been permanently enabled:

    Feature Name                 Partnum   Status Quantity
    Large System # Links         893005910 on     2000
    XGTT Table Expansion         893006110 on     1000000
    Routesets                    893006403 on     8000
    LNP Short Message Serv.      893006601 on     ----
    Intermed GTT Load Sharing    893006901 on     ----
    Command Class Management     893005801 on     ----
    Telnet                       893005701 on     ----
    EAGLE5 Product               893007101 on     ----
    XMAP Table Expansion         893007710 on     3000
    LNP ported NPANXXs           893009403 on     350000
    LNP ported LRNs              893010506 on     200000
    LNP ELAP Configuration       893010901 on     ----
    LNP ported TNs               893011036 on     384000000
    SCCP Conversion              893012001 on     ----
    HC-MIM SLK Capacity          893012707 on     64
    EAGLE OA&M IP Security       893400001 off    ----
    Flexible GTT Load Sharing    893015401 on     ----
    Origin-Based MTP Routing     893014201 on     ----
    Origin Based SCCP Routing    893014301 on     ----
    GPORT                        893017201 on     ----
    INP                          893017901 on     ----
    Throughput Cap               893019101 on     5000
    Multiple Linkset to APC      893019701 on     ----
    6-Way LS on Routesets        893019801 on     ----
    Proxy Point Code             893018710 on     100
    AMGTT                        893021801 on     ----
    VGTT with 16 GTT lengths     893024801 on     ----
    ITU TCAP LRN QUERY(LRNQT)    893026301 on     ----
    ISLSBR                       893026501 on     ----
    GTT Action - DISCARD         893027501 on     ----
    GTT Action - DUPLICATE       893027601 on     ----
    GTT Action - FORWARD         893037501 on     ----
    Flex Lset Optnl Based Rtg    893027701 on     ----
    TCAP Opcode Based Routing    893027801 on     ----
    TOBR Opcode Quantity         893027907 on     1000000
    ST-HSL-A SLK Capacity        893027301 on     4
    3 Links per E5-ATM card      893039104 on     20
    Integrated GLS               893038901 on     ----
    EPAP Data Split              893039801 on     ----
    Dual ExAP Config             893040501 on     ----

    The following features have been temporarily enabled:

    Feature Name                 Partnum   Status Quantity     Trial Period Left
    Zero entries found.

    The following features have expired temporary keys:

    Feature Name                 Partnum
    Zero entries found.

    Table 2-33 shows the ELAP-Based and EPAP-Based features that can be enabled. These features can affect how many service modules can be provisioned in the EAGLE.

    Table 2-33 ELAP-Based and EPAP-Based Features

    ELAP-Based Features
    LNP
    EPAP-Based Features
    EIR G-Port INP
    ANSI-41 INP Query A-Port IS41 GSM Migration
    G-Flex TINP V-Flex
    ATINP TIF Number Portability TIF SCS Forwarding
    TIF Simple Number Substitution TIF ASD TIF GRN
    Prepaid IDP Query Relay IDP Screening for Prepaid MO-based GSM SMS NP
    MO-based IS41 SMS NP MO SMS IS41-to-GSM Migration MO SMS ASD
    MO SMS GRN Portability Check for MO SMS Prepaid SMS Intercept Phase 1
    Service Portability Info Analyzed Relay Base TIF Selective Screening
    Continue the procedure by performing one of these steps.
    • If any of the features shown in Table 2-33 are enabled, or if any the shown in Table 2-33 will be enabled, continue the procedure with 5.
    • If none of the features shown in Table 2-33 are enabled and none of these features will be enabled, continue the procedure with 6.
  5. Verify the number of service modules in the EAGLE by entering the rept-stat-sccp command. The number of service modules is shown in the SCCP Cards Configured field of the rept-stat-sccp output. This is an example of the possible output.
    tklc1110501 15-06-24 17:00:40 EST  EAGLE5 46.2.0-65.53.1
    SCCP SUBSYSTEM REPORT   IS-NR          Active     -----
         SCCP ALARM STATUS   = No Alarms
    MNP SERVICE REPORT      IS-ANR         Active     -----
         MNP ALARM STATUS    = **  0547 Service degraded
    LNP SUBSYSTEM REPORT    IS-NR          Active     -----
         LNP:    SSN STATUS  = Allowed     MATE SSN STATUS = ----------
         LNP ALARM STATUS    = **  0283 LNP Ported LRNs approaching Feat. Cap.
    INPQ SUBSYSTEM REPORT   IS-ANR         Active     -----
         INPQ:   SSN STATUS  = Allowed     MATE SSN STATUS = ----------
         INP ALARM STATUS    = **  0428 INP Subsystem degraded, cards abnormal

    SCCP Cards Configured=28      Cards IS-NR=27
    System Daily Peak SCCP Load       4134   TPS 15-06-24 07:13:24
    System Overall Peak SCCP Load     4134   TPS 15-06-24 07:13:24
    System Total SCCP Capacity        135000 TPS (135000 max SCCP Capacity)
    System SCCP Capacity Calc. Method (N)
    System TPS Alarm Threshold        108000 TPS ( 80% System   N SCCP Capacity)

    CARD   VERSION      PST     SST        AST    MSU    CPU   DATA
                                                 USAGE  USAGE  TYPE
    ----------------------------------------------------------------
    1317   135-052-000  IS-NR   Active    -----    2%     5%   ELAP
    2211   135-052-000  IS-NR   Active    -----    1%     9%   GTT
    2217   135-052-000  IS-NR   Active    -----   20%    10%   ELAP
    2305   135-052-000  IS-NR   Active    -----    1%     3%   IMSI
    2311   135-052-000  IS-NR   Active    -----    0%     1%   IMSI
    2317   135-052-000  IS-NR   Active    -----    2%     2%   ELAP
    3103   135-052-000  IS-NR   Active    -----    2%     5%   ELAP
    3111   135-052-000  IS-NR   Active    -----    0%     5%   DN
    3201 P 135-052-000  IS-NR   Active    -----    2%     5%   ELAP
    3203   135-052-000  IS-NR   Active    -----    2%     2%   ELAP
    3205   135-052-000  IS-NR   Active    -----    2%     2%   ELAP
    3207   135-052-000  IS-NR   Active    -----    2%     5%   ELAP
    3217   135-052-000  IS-NR   Active    -----    2%     5%   ELAP
    4107   135-052-000  IS-NR   Active    -----    0%     4%   IMSI
    4111   135-052-000  IS-NR   Active    -----    0%     9%   GTT
    4207 P 135-052-000  IS-NR   Active    -----    1%     5%   DN
    4311   -----------  OOS-MT  Isolated  -----    0%     0%   DN
    5211   135-052-000  IS-NR   Active    -----    1%     5%   IMSI
    5307   135-052-000  IS-NR   Active    -----    1%     9%   GTT
    5317   135-052-000  IS-NR   Active    -----   20%     4%   ELAP
    6101   135-052-000  IS-NR   Active    -----    2%     2%   ELAP
    6105   135-052-000  IS-NR   Active    -----    2%     2%   ELAP
    6107   135-052-000  IS-NR   Active    -----    2%     2%   ELAP
    6111   135-052-000  IS-NR   Active    -----    2%     2%   ELAP
    6113   135-052-000  IS-NR   Active    -----    2%     3%   ELAP
    6115   135-052-000  IS-NR   Active    -----    2%     5%   ELAP
    6117   135-052-000  IS-NR   Active    -----    2%     5%   ELAP
    1107   135-052-000  IS-NR   Active    -----    2%     2%   ELAP
    ----------------------------------------------------------------
    SCCP Service Average MSU Capacity =   2%   Average CPU Capacity =   4%

    AVERAGE CPU USAGE PER SERVICE:
    GTT    =   1%  MNP    =   0%
    LNPMR  =   1%  LNPQS  =   1%  WNPQS  =   1%  TLNP   =   1%  PLNPQS =   1%
    LRNQT  =   0%  INPMR  =   0%

    TOTAL SERVICE STATISTICS:
                                    FAIL     REROUTE\       FORWARD
    SERVICE    SUCCESS    ERRORS   RATIO     WARNINGS        TO GTT     TOTAL
    GTT:           111         0      0%            -             -       111
    MNP:             0         0      0%            0             0         0
    LNPMR:        1602         0      0%            -             -      1602
    LNPQS:      109065        32      0%            -             -    109097
    WNPQS:        1266         0      0%            -             -      1266
    TLNP:          725         0      0%            -             -       725
    PLNPQS:       8817         0      0%            -             -      8817
    LRNQT:           0         0      0%            -             -         0
    INPMR:           0         0      0%            0             0         0
    INPQ:            0         0      0%            0             -         0

    Note:

    The rept-stat-sccp command output contains other fields that are not used by this procedure. If you wish to see all the fields displayed by the rept-stat-sccp command, refer to the rept-stat-sccp command description in Commands User's Guide.
    Table 2-34 shows the maximum number of service modules that can be provisioned based on the type of SCCP traffic the EAGLE is handling and whether or not the Throughput Capacity or the EAGLE SCCP Capacity Increase features are enabled and turned on.

    Table 2-34 SCCP Transactions Per Second

    Type of Traffic Maximum Transactions per Second for the EAGLE Transactions per Second for each Service Module Maximum Number of Service Modules
    Throughput Capacity Feature for either 5000 or 6800 SCCP Transactions per Second is not Enabled or Turned On
    GTT Traffic or ANSI41 AIQ only - No EPAP-Based Traffic or ELAP-Based (LNP) Traffic 52,700 1700 32
    ELAP-Based (LNP) Traffic 40,800 1700 25
    EPAP-Based Traffic 40,800 1700 - for a SLIC card 25
    20,400 850 - for a DSM 25
    Throughput Capacity Feature for 5000 SCCP Transactions per Second is Enabled and Turned On (See Notes 1 and 2)
    GTT Traffic or ANSI41 AIQ only - No EPAP-Based Traffic or ELAP-Based (LNP) Traffic 150,000 5000 32
    ANSI G-Flex EPAP-Based Traffic Only 150000 5000 32
    EPAP-Based Traffic (except ANSI G-Flex Traffic) 96,875 3125 32
    ELAP-Based (LNP) Traffic 85,000 5000 18 (See Note 3)
    Throughput Capacity Feature for 6800 SCCP Transactions per Second is Enabled and Turned On (See Notes 1 and 2)
    GTT Traffic or ANSI41 AIQ only - No EPAP-Based Traffic or ELAP-Based (LNP) Traffic 210,800 6800 32
    EPAP-Based Traffic (including ANSI G-Flex Traffic) 210,800 6800 32
    ELAP-Based (LNP) Traffic 115,600 6800 18 (See Note 3)
    Throughput Capacity Feature for 10000 SCCP Transactions per Second is Enabled and Turned On (See Note 4)
    GTT Traffic or ANSI41 AIQ 310,000 10000 32

    Notes:

    1. To achieve the maximum transactions per second shown in this portion of the table, all the service modules must be SLIC cards.
    2. The value shown in the Transactions per Second for each Service Module column in this portion of the table applies only to SLIC cards.
    3. The number of service modules can be a maximum of 18 only if the ELAP version is 9.0. If the ELAP version is less than 9.0, only nine service modules can be used for ELAP-based traffic.
    4. Throughput Capacity feature for 10000 TPS requires E5-SM8G-B cards, and 13.6k TPS requires SLIC cards.
    Table 2-35 shows the maximum SCCP throughput capacity based on the combinations of features and GPL/card.

    Table 2-35 SCCP Throughput Capacity

    SCCP Throughput Capacity Feature Activated E5-SM8G-B TPS SLIC TPS
    13.6K TPS (P/N: 893019104) 13600 13600 TPS if all below conditions are true:
    1. EGMS feature is not activated
    2. EPAP240M option in STPOPTS is OFF or SM card is provisioned as data=DN/IMSI/ELAP/GTT
    3. No UAM 548 or 549 present in the system
    10000 TPS if any of the below conditions are true:
    1. EGMS feature is activated.
    2. EPAP240M option in STPOPTS is ON and SM card is not provisioned as data=DN/IMSI/ELAP/GTT
    3. UAM 548 or 549 is present in the system
    10K TPS (P/N: 893019103) 10000 10000
    6.8K TPS (P/N: 893019102) 6800 6800
    5K TPS (P/N: 893019101) 5000 5000
    The EAGLE’s total SCCP throughput capacity can be calculated as the number of SCCP cards in the system (N) times the SCCP throughput capacity per card (keeping in mind the SCCP configuration of the system: N or N+1). The number of SCCP cards in the system depends on whether the system is a pure GTT or EPAP or ELAP system and the specific EAGLE/EPAP/ELAP release.

    Table 2-36 Number Service Module Cards in the System

    MPS Release SM4G Cards (up to 5K/6.8K/10KTPS)
    ELAP 10.0 18 Up to 384 mil TNs
    Up to EAGLE 41.1+ EPAP 16 25
    From EAGLE 42.0 + EPAP 16 on AS T1000 25 (in N+1 config)
    From EAGLE 42.0 +EPAP 16 on AS T1200 32 (in N+1 config)

    If the rept-stat-sccp output shows that the EAGLE has the maximum number of service modules, as shown in Table 2-36, the remainder of this procedure cannot be performed.

    If the rept-stat-sccp output shows that the EAGLE does not have the maximum number of service modules, as shown in Table 2-36, continue the procedure by performing one of these steps.
    • If a card is being added, continue the procedure with 7.
    • If an E5-SM8G-B card is being added, continue the procedure with 6.
  6. Verify that HIPR2 cards are installed at card locations 9 and 10 in the shelf where the E5-SM8G-B card will be installed. Enter this command.

    rept-stat-gpl:gpl=hipr2

    This is an example of the possible output.

    rlghncxa03w 09-07-01 11:40:26 GMT  EAGLE5 41.1.0
    GPL        CARD      RUNNING          APPROVED       TRIAL
    HIPR2      1109      126-002-000      126-002-000    126-003-000
    HIPR2      1110      126-002-000      126-002-000    126-003-000
    HIPR2      1209      126-002-000      126-002-000    126-003-000
    HIPR2      1210      126-002-000      126-002-000    126-003-000
    HIPR2      1309      126-002-000      126-002-000    126-003-000
    HIPR2      1310      126-002-000      126-002-000    126-003-000
    HIPR2      2109      126-002-000      126-002-000    126-003-000
    HIPR2      2110      126-002-000      126-002-000    126-003-000
    Command Completed

    If HIPR2 cards are installed at card locations 9 and 10 in the shelf where the E5-SM8G-B card will be installed, continue the procedure with 7.

    If HIPR2 cards are not installed in the shelf where the E5-SM8G-B card will be installed, refer to Installation Guide to install the HIPR2 cards. Once the HIPR2 cards have been installed, continue the procedure with 7.

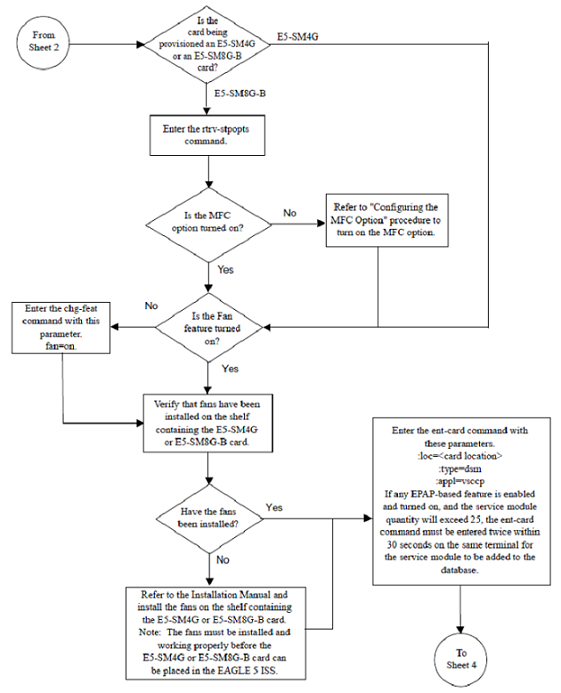

  7. Verify the service module has been physically installed into the proper location according to the feature requirements. Table 2-31 shows the type of service module that is required based on the GTT-related features that are currently being used (also shown in the rtrv-feat output in 2 as being on, and in the rtrv-ctrl-feat output in 4 as being enabled) and any features that will be enabled after this procedure is performed.

    Caution:

    If the versions of the flash GPLs on the service module do not match the flash GPL versions in the database when the service module is inserted into the card slot, UAM 0002 is generated to indicate that these GPL versions do not match. If UAM 0002 has been generated, perform the alarm clearing procedure for UAM 0002 in Unsolicited Alarm and Information Messages Reference before proceeding with this procedure.
  8. Verify the EAGLE has a fan unit and the fan unit is on. If the fan unit is not on, use the enable-ctrl-feat:fan=on command to turn on the fan.
  9. Verify the MFC STP option is turned on. If the MFC STP option is not turned on, use the enable-ctrl-feat:MFC=on to turn it on.
  10. Add the service module to the database using the ent-card command. For this example, enter this command.

    ent-card:loc=1301:type=dsm:appl=vsccp

    Note:

    If any EPAP-based feature is enabled and turned on, and the service module quantity will exceed 25, the ent-card command must be entered twice within 30 seconds on the same terminal for the service module to be added to the database.
    When this command has completed, one of these messages should appear.
    • If any of these conditions will be present after the new service module is added to the database:
      • the total number of service modules will not be increased beyond 25
      • the total number of service modules will be greater than 25 and no EPAP-based features are enabled and turned on (see Table 2-33)
      • the total number of service modules will be from 27 to 32 and any EPAP-based features are enabled and turned on (see Table 2-33)
      this message should appear.
      rlghncxa03w 10-07-25 09:57:51 GMT  EAGLE5 42.0.0
      ENT-CARD: MASP A - COMPLTD
    • If the addition of the new service module will increase the total number of service modules to 26 and any EPAP-based features are enabled and turned on (see Table 2-33), this message should appear.
      rlghncxa03w 10-07-25 09:57:51 GMT  EAGLE5 42.0.0

      CAUTION: Please ensure EPAP Application Server is running on
      hardware supporting 32 SCCP cards e.g.: T1200.
      Re-enter command within 30 seconds to confirm change.

      rlghncxa03w 10-07-25 09:57:51 GMT  EAGLE5 42.0.0
      ENT-CARD: MASP A - Command Aborted
      After this message appears, re-enter the ent-card command within 30 seconds. This message should appear.
      rlghncxa03w 10-07-25 09:57:51 GMT  EAGLE5 42.0.0
      ENT-CARD: MASP A - COMPLTD
      If the ent-card command is not re-entered within 30 seconds, this message should appear and the new service module will not be added to the database.
      ENT-CARD command (Type=DSM) confirmation timer expired

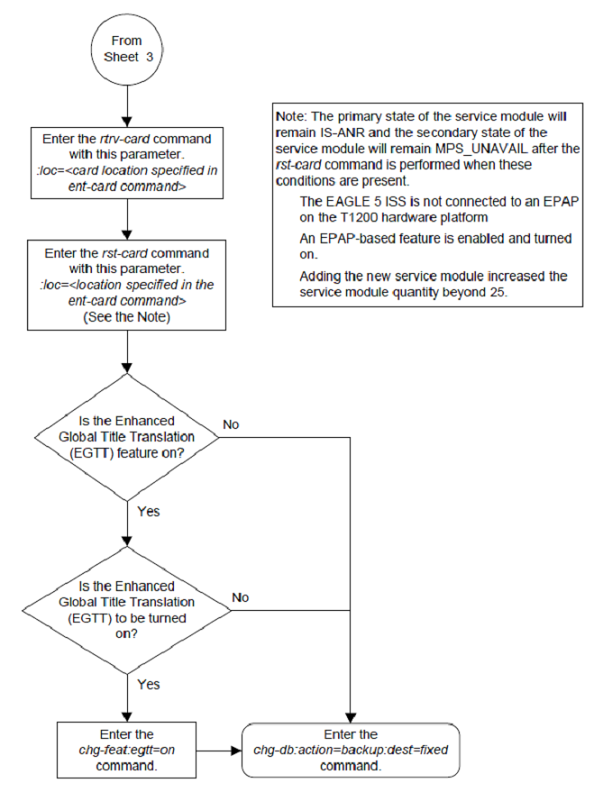

  11. Verify the changes using the rtrv-card command with the card location specified. For this example, enter this command.

    rtrv-card:loc=1301

    This is an example of the possible output.

    rlghncxa03w 09-07-25 09:58:31 GMT EAGLE5 41.1.0
    CARD   TYPE      APPL      LSET NAME     LINK SLC LSET NAME     LINK SLC
    1301   DSM       VSCCP
  12. Display the current IP link parameters associated with the Service Module card in the database by entering the rtrv-ip-lnk command:
    RLGHNCXA03W 05-14-24 21:14:37 GMT EAGLE 46.0.0
    LOC PORT IPADDR SUBMASK DUPLEX SPEED MACTYPE AUTO MCAST
    1107 A ------- -------- HALF 10 DIX NO NO
    1107 B ------- -------- HALF 10 DIX NO NO
  13. Enter the IP address and other parameter values associated with the Service Module card in the database using the chg-ip-lnk command:

    For example, enter:

    chg-ip-lnk:loc=1107:port=a:ipaddrr=192.168.122.1:mactype=dix:auto=yes: mcast=yes:submask=255.255.255.0

    chg-ip-lnk:loc=1107:port=b:ipaddrr=192.168.123.1:mactype=dix:auto=yes: mcast=yes:submask=255.255.255.0

    Where:

    :loc

    Card location or slot number of the SM card in the EAGLE

    :port

    Ethernet interface Port ID-the physical interface of the SM card

    :ipaddr

    IP address for the specified port. This is a TCP/IP address expressed in standard dot notation. IP addresses consist of the network number of the system and the unique host number.

    :submask

    Subnet mask of the IP interface in the form of an IP address with a restricted range of values

    :mactype

    Media Access Control Type of the interface. When a Service Module card is entered into the database, these values are automatically configured.

    :mcast

    Multicast Control to enable or disable multicast support for the interface. This parameter value must be yes to establish the connection from the SM card to the MPS system.

    :auto

    Tells hardware whether to automatically determine duplex and speed.

    Note:

    Corresponding ports on ExAP LAN switches should be configured accordingly to achieve the required operational speed and duplex of 1Gbps and Full Duplex. Refer to ExAP Administration Guide for more information. Once the SM (SMxG/SLIC) card is in service, the pass command pass:cmd="netstat -i":loc=<:SM card loc> can be used to verify the operational speed and duplex of ExAP ports on SM cards.
  14. Verify the IP address and other parameter values associated with the Service Module card in the database by entering the rtrv-ip-lnk command:
    RLGHNCXA03W 05-14-24 21:14:37 GMT EAGLE 46.0.0
    LOC PORT IPADDR SUBMASK DUPLEX SPEED MACTYPE AUTO MCAST
    1107 A 192.168.122.1 255.255.255.0 HALF 100 DIX NO YES
    1107 B 192.168.123.1 255.255.255.0 HALF 10 DIX NO YES
  15. Display the current IP host information in the database by entering the rtrv-ip-host command:
    RLGHNCXA03W 05-14-24 21:17:37 GMT EAGLE 46.0.0
    IPADDR HOST
    192.1.1.32 KC_HLR2
    192.1.1.50 DN_MSC1
    192.1.1.52 DN_MSC2
  16. Add the host name and IP address for each VSCCP link, using the ent-ip-host command.

    Command examples:

    ent-ip-host:host=vsccp_1107_a:ipaddr=192.168.122.1

    ent-ip-host:host=vsccp_1107_b:ipaddr=192.168.123.1

    Where:

    :host

    Host name. Each VSCCP link must be specified separately.

    :ipaddr

    IP network address for each EPAP. The first three octets of the IP address must be the same as MPS A and B ports, respectively. The fourth octet identifies the SM card and must have a unique octet identifier for the card IP address

  17. Verify the new IP host information in the database by entering the rtrv-ip-host command:
    RLGHNCXA03W 05-14-24 21:19:37 GMT EAGLE 46.0.0
    IPADDR HOST
    192.1.1.32 KC_HLR2
    192.1.1.50 DN_MSC1
    192.1.1.52 DN_MSC2
    192.168.122.1 VSCCP_1107_A
    192.168.123.1 VSCCP_1107_B
  18. Enter local domain and IP router address for the SM card using the chg-ip-card command:

    Note:

    Most customer private networks do not require setting up a default router for the SM card. If your network configuration requires a default router to connect the Service Module card communication to the EPAP, then only one default router is assignable to each Service Module card. Assign the default router address to each Service Module card as shown in this step.

    For example:

    chg-ip-card:defrouter=192.168.122.250:domain=nc.tekelec.com:loc=<card location>

    Where:

    :defrouter

    Default router IP address. This is a TCP/IP address expressed in standard dot notation. IP addresses consist of the network number of the system and the unique host number.

    :domain

    Domain name of domain server

    :loc

    Card location or slot number of the SM card in the EAGLE

  19. Verify the new TCP/IP parameters associated with the SM card in the database by entering the rtrv-ip-card commands:
    RLGHNCXA03W 05-14-24 21:21:37 GMT EAGLE 45.0.0
    LOC 1107
    SRCHORDR LOCAL
    DNSA -----------
    DNSB -----------
    DEFROUTER 192.168.122.250
    DOMAIN NC.TEKELEC.COM
  20. Allow the SM card that was added to operate in the system, using the alw-card command:
    alw-card:loc=<card location>
  21. Verify the In-Service-Normal (IS-NR) status of the SM card, using the rept-stat-card command.
  22. Test the presence of the EPAP hosts on the network using the pass command with the ping parameter. This command is invoked with a destination that is either a hostname or IP address.

    Command examples:

    pass:loc=1107:cmd=”ping 192.168.122.100”

    pass:loc=1107:cmd=”ping 192.168.122.200”

    pass:loc=1107:cmd=”ping 192.168.123.100”

    pass:loc=1107:cmd=”ping 192.168.123.200”

    Where:

    :loc

    Card location or slot number in the EAGLE

    :cmd

    Command string passed to Service Module card for processing.

    After successful completion of each command, the system response is similar to the following output:
    rlghncxa03w 05-14-24 08:30:44 GMT EAGLE 46.0.0
    pass: loc=1107: cmd="ping 192.168.122.100"
    Command entered at terminal #1.
    ;
    rlghncxa03w 05-14-24 08:30:44 GMT EAGLE 46.0.0
    PASS: Command sent to card
    ;
    rlghncxa03w 05-14-24 08:30:44 GMT EAGLE 46.0.0
    PING command in progress
    ;
    rlghncxa03w 05-14-24 08:30:46 GMT EAGLE 46.0.0
    PING 192.168.122.100: 56 data bytes
    64 bytes from tekral.nc.tekelec.com (192.168.122.100):icmp_seq=0.time=5. ms
    64 bytes from tekral.nc.tekelec.com (192.168.122.100):icmp_seq=1.time=0. ms
    64 bytes from tekral.nc.tekelec.com (192.168.122.100):icmp_seq=2.time=0. ms
    ----192.168.100.3 PING Statistics----
    3 packets transmitted, 3 packets received, 0% packet loss
    round-trip (ms) min/avg/max = 0/1/5
    PING command complete

    If the pass commands with the ping parameter are not successful, verify the correct connection of the hardware cabling and repeat this step. If the command fails again, contact the My Oracle Support (MOS).

  23. Put the card in service using the rst-card command with the card location specified in 10. For this example, enter this command.

    rst-card:loc=1301

    Note:

    The primary state of the service module will remain IS-ANR and the secondary state of the service module will remain MPS_UNAVAIL after the rst-card command is performed when these conditions are present.
    • An EPAP-based feature is enabled and turned on.
    • Adding the new service module increased the service module quantity beyond 25.

    When this command has successfully completed, this message should appear.

    rlghncxa03w 09-07-28 08:21:07 GMT  EAGLE5 41.1.0
    Card has been allowed.
    Continue the procedure by performing one of these steps.
    • If the EGTT feature is on, shown by the entry EGTT = on in the rtrv-feat command output in 2 , or if the EGTT feature is off and will not be turned on in this procedure, continue the procedure with 25.
    • If the EGTT feature is off and will be turned on in this procedure, continue the procedure with 24.
  24. Turn the enhanced global title translation feature on by entering this command.

    Note:

    Once the Enhanced Global Title Translation (EGTT) feature is turned on with the chg-feat command, it cannot be turned off.

    The EGTT feature must be purchased before turning it on. If you are not sure whether you have purchased the EGTT feature, contact your Sales Representative or Account Representative.

    When the chg-feat has successfully completed, this message should appear.

    rlghncxa03w 09-07-25 09:57:41 GMT EAGLE5 41.1.0
    CHG-FEAT: MASP A - COMPLTD

  25. Back up the new changes using the chg-db:action=backup:dest=fixed command. These messages should appear, the active Maintenance and Administration Subsystem Processor (MASP) appears first.
    BACKUP (FIXED) : MASP A - Backup starts on active MASP.
    BACKUP (FIXED) : MASP A - Backup on active MASP to fixed disk complete.
    BACKUP (FIXED) : MASP A - Backup starts on standby MASP.
    BACKUP (FIXED) : MASP A - Backup on standby MASP to fixed disk complete.

Figure 2-36 Add a Service Module - Sheet 1 of 4

Figure 2-37 Add a Service Module - Sheet 2 of 4

Figure 2-38 Add a Service Module - Sheet 3 of 4

Figure 2-39 Add a Service Module - Sheet 4 of 4
