Allowed CGPA Screening Actions

Any MSU that does not contain a service indicator of 3 in the SIO field and does not contain the SCCP message types 9, 10, 17, or 18 and reaches this screen in the gateway screening process automatically passes gateway screening and is allowed into the EAGLE.

The value of the nsfi parameter is based on the value of the routing indicator (ri) parameter. Table 6-1 through Figure 6-3 show the valid combinations of nsfi values and routing indicator values.

Table 6-1 Valid Parameter Combinations for the Allowed CGPA Screening Function

Routing Indicator (RI) Values Nest Screening Function Identifier (NSFI) Values
GT TT
DPC CDPA
* (asterisk) TT, CDPA

Figure 6-1 shows the screening actions of the allowed CGPA screen.

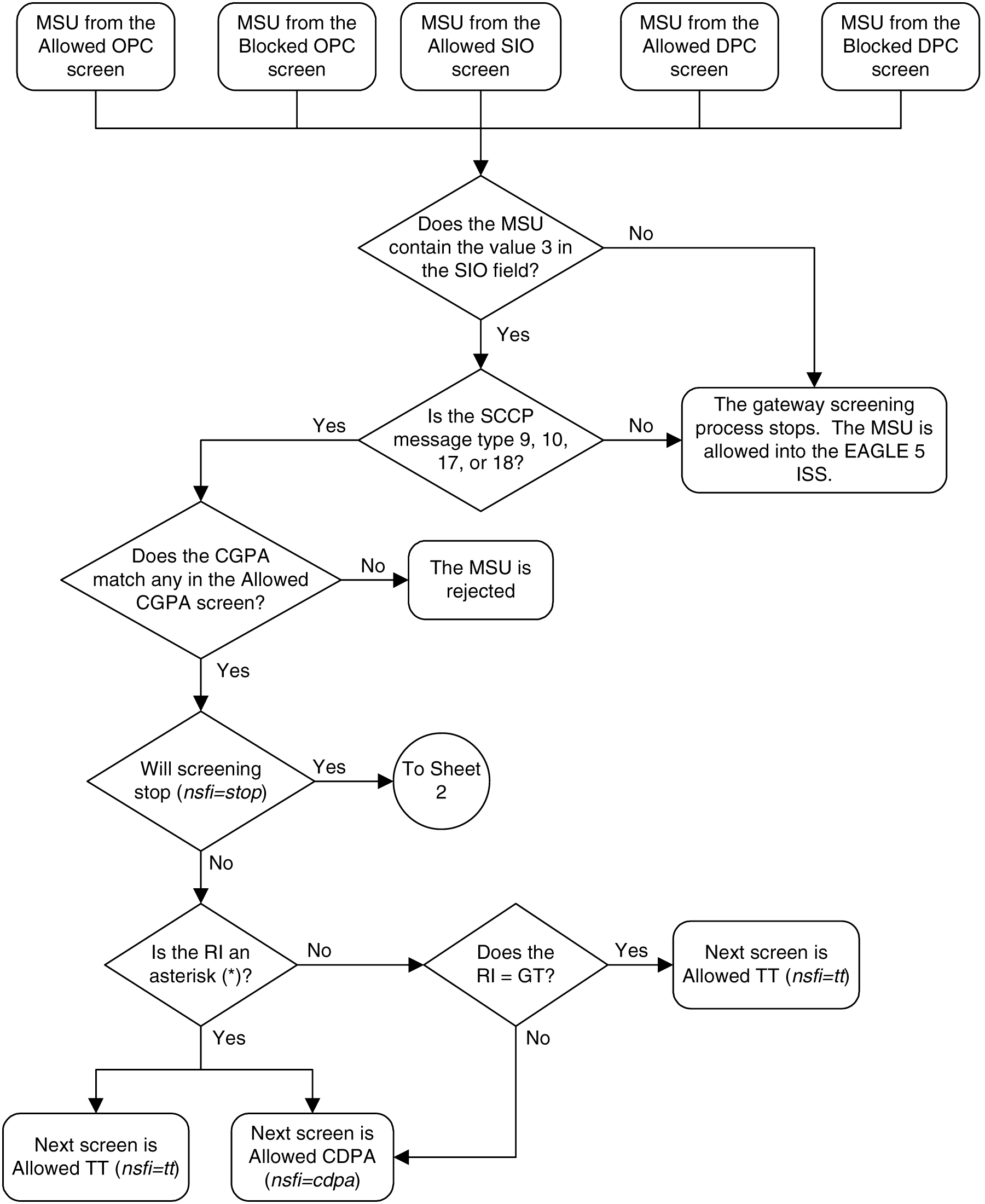

Figure 6-1 Allowed CGPA Screening Actions - Sheet 1 of 3

img/c_introduction_2_dbags-fig1.jpg

Figure 6-2 Allowed CGPA Screening Actions - Sheet 2 of 3

img/gws_stop_actions_01_140964.jpg

Figure 6-3 Allowed CGPA Screening Actions - Sheet 3 of 3

img/gws_stop_actions_02_140964.jpg

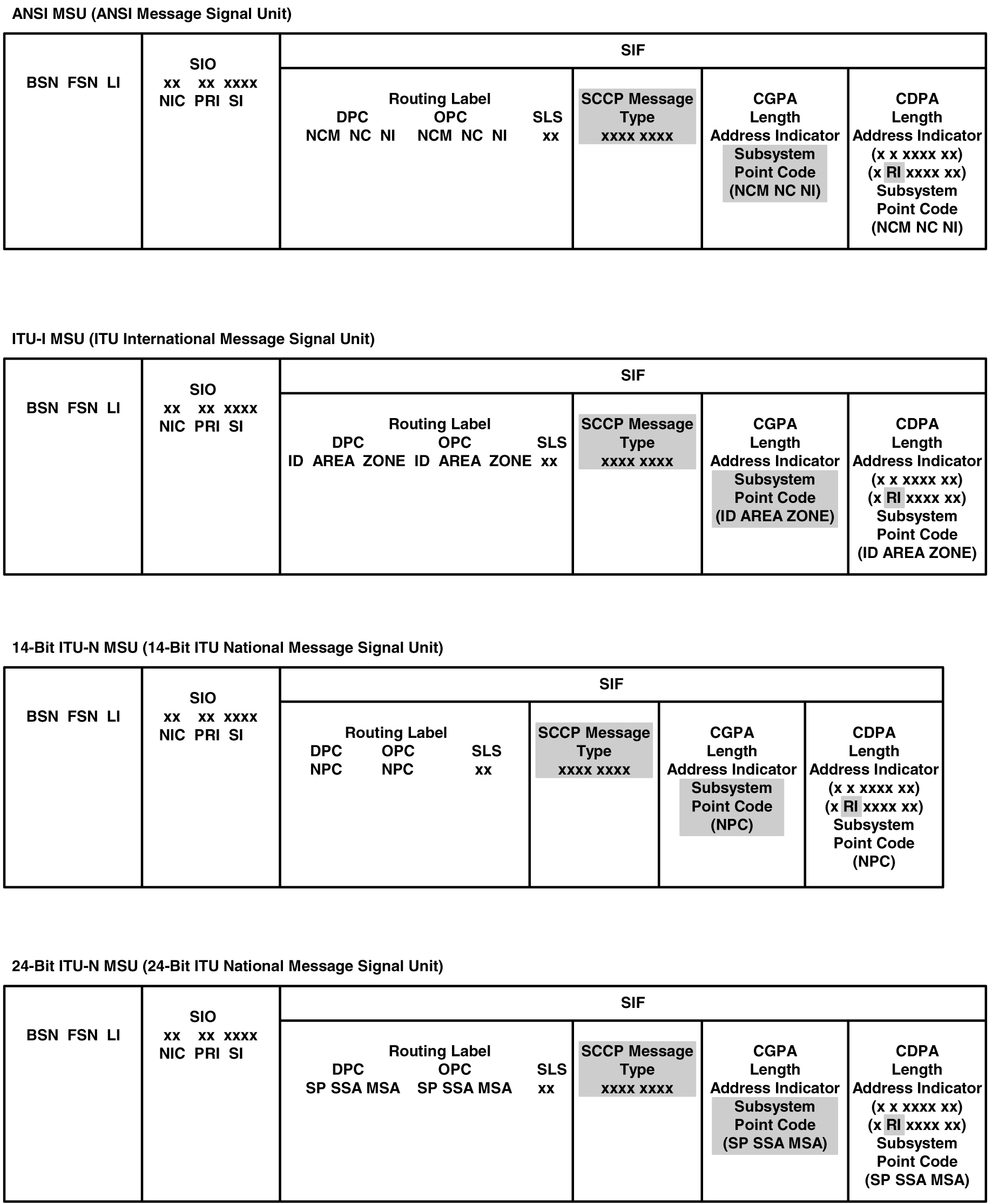

Figure 6-4 Allowed Calling Party Address Screening Function

img/c_introduction_2_dbags-fig3.jpg
