Example 4

Example 4 screens the messages in a linkset for the following criteria. Figure 2-6 shows the screening order the EAGLE uses and the order that the screens must be entered into the database.

• Allow messages containing the following items into the EAGLE

  The following SIO information:

  • The network indicator code of 2 (nic=2)
  • The service indicator of 3 (si=3)
  • Message priority of 3 (pri=3)

  The called party address (CDPA) 007-007-007 with the subsystem number of 001 and SCMG format ID of 100

  The allowed affected point code (AFTPC) of 010-010-010 with the subsystem number of 015

• The message that passes the gateway screening criteria is copied for the STPLAN application (specified with the actname parameter and the name of the gateway screening stop action set containing the COPY gateway screening stop action).
• Automatic Destination Field screening is on.

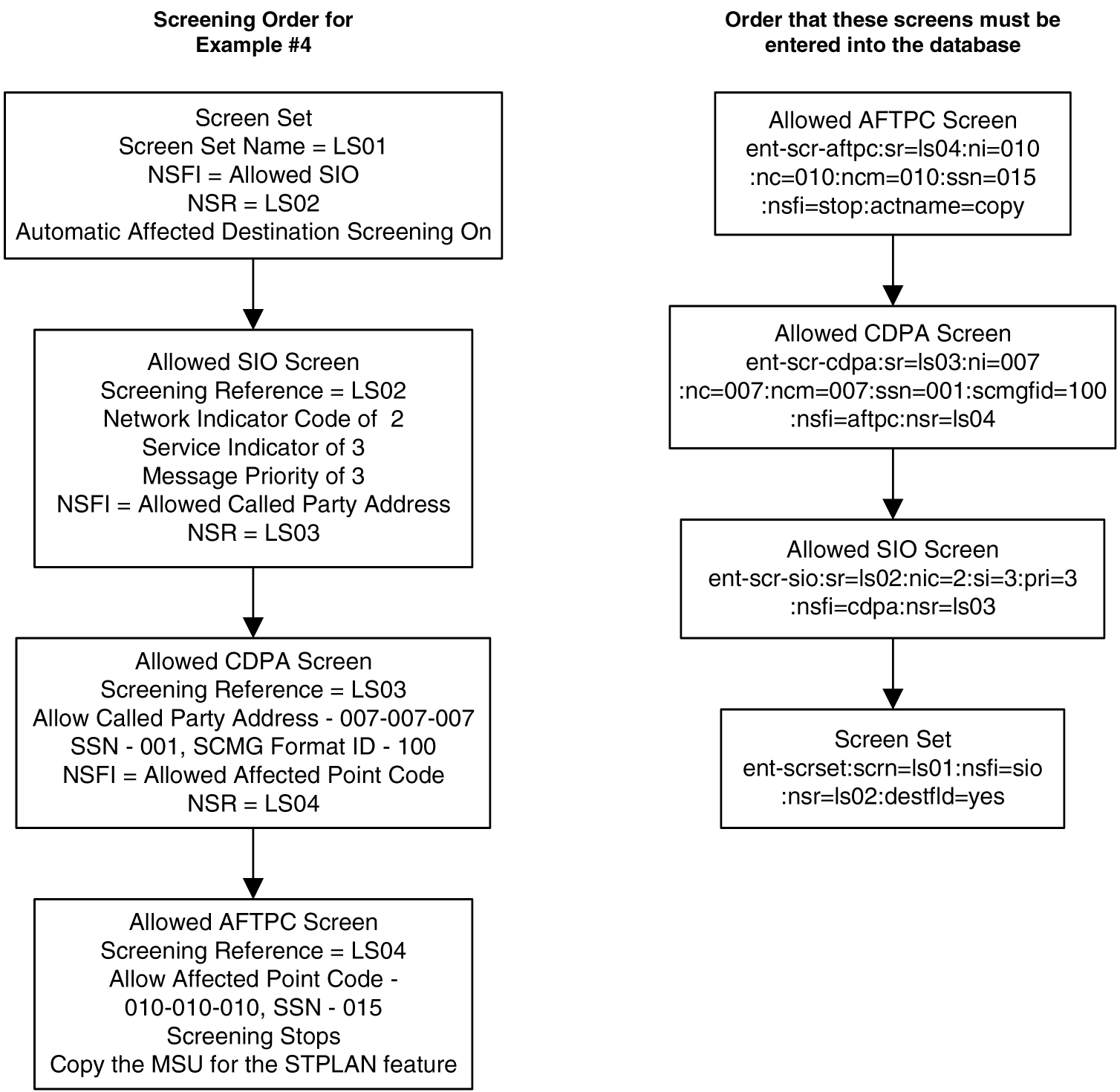

Figure 2-6 Gateway Screening Configuration - Example 4
