Testing the RMC Converter
Test that the RMC is converting properly by playing a G.729 recording through the ISR Dashboard.
To test the RMC converter:
-
Enter the IP
address of the
ISR Dashboard. For
example:
http://172.54.66.7
The Login page displays.
-
Enter your email
and password, respectively, in the
Email and
Password fields.
The default user name and password are:
User name: isradmin@acmepacket.com
Password: admin123
The following page displays.
-
From the Main Menu,
click

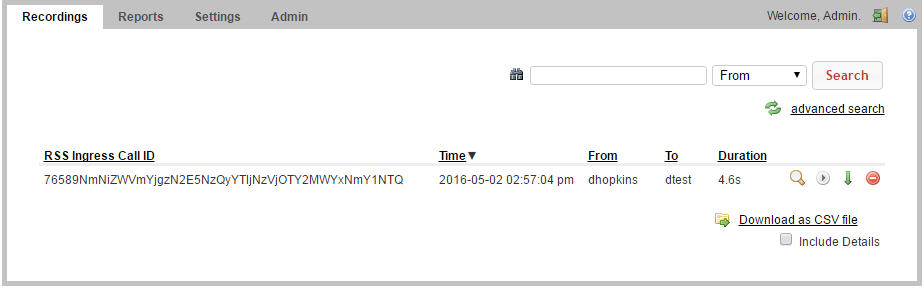

Recordings. The
following page displays.
-
Select a recording
that has a file name in the format .rpdd and then click the
.

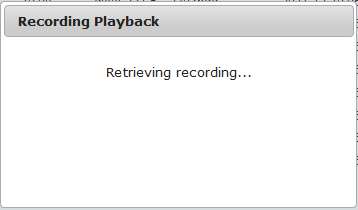

If the RMC conversion process was successful (recording is converted from a ".rpdd" file to a .wav file), the recording opens and an audible playback of the recording is heard.

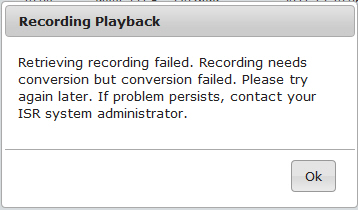

If the RMC conversion process was unsuccessful, the following message displays:
Converter logs can be found on the RSS host in /opt/isr/logs/converter/ for troubleshooting.
