Update Devices for a Route Set

You can update the devices for route sets that are displayed in the Associated Devices tab. Check the Needs Updating column to identify any route sets that require updating. If there are no route sets with devices requiring an update, the Update Device button remains gray (inactive).

1. Expand the Route Manager slider, and click Devices.
2. In the Associated Devices tab, select the route set (see the Route sets column) that has devices which require an update.
3. Click Update Device.
4. In the Add Update Task dialog box, complete the following fields:

   Name field	The default update task displays. You can enter a new task name for this field.
   Note field	(Optional) The description of the update task.

5. In the Route Set Devices box, select the device from the folder hierarchy and click Add to add it to the Devices to Update table.
6. Repeat the previous step to select additional devices that need to be updated for the route set.
7. In the If failure occurs with any one device update section, select from the following radio button options:
   • Roll back all successfully updated devices
   • Abort the entire job
   • Skip the failed device update and continue.
8. Click OK.

   The Update Task Details dialog box appears and displays the update process.

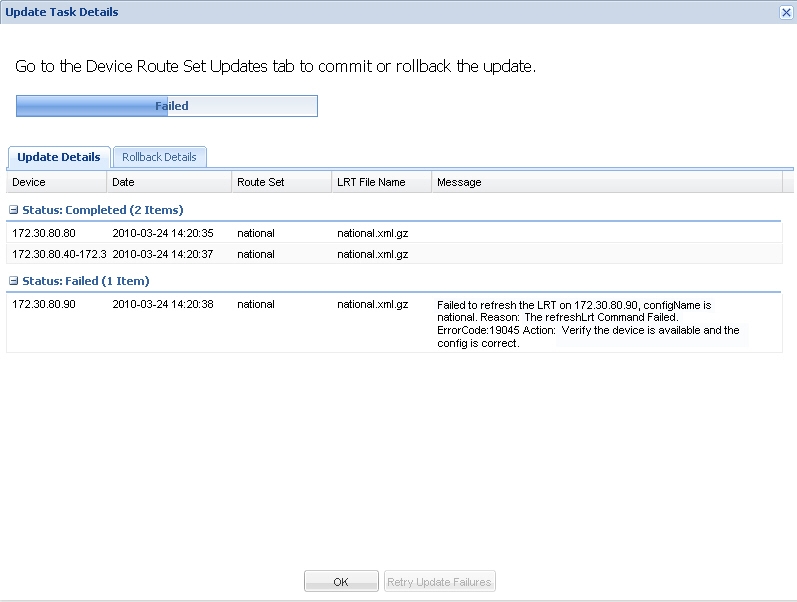

   If the update task fails, the progress bar reflects the failed status and a message appears in the Update Details table. For example:

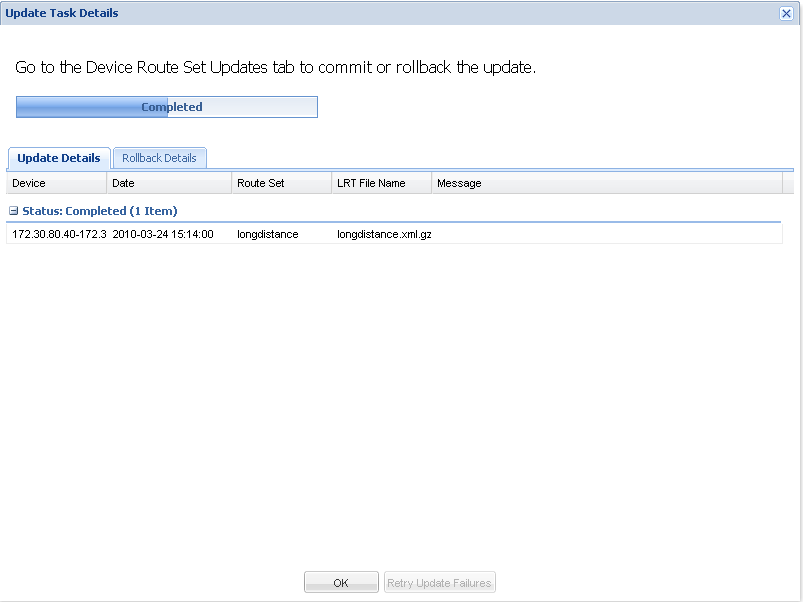

   If the update task succeeds, the progress bar reflects the completed status and the devices appear under the Status:Completed section of the table. For example:


9. Click OK.
10. In the Device Route Set Updates tab, click Commit to save the device updates.
