Chapter - 7 : Deploying ACORD_AML Libraries

In August 2017, ACORD stopped making the AML specification available to non-members. As a consequence of this and the associated licensing changes, OIDX cannot include the AML XSD as part of its deployments. The user must independently acquire a copy of the AML XSD distribution (ACORD Asia Pacific GI XML - 1.2.0 - Members.zip) and install the schema resources into the OIDX service virtualization deployment.

XSD Installation

Follow these steps:

  1. Log in to SB console and start an update session.

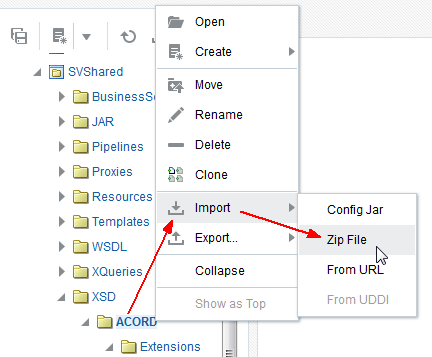

  2. Scroll down to SVShared/XSD/ACORD (the ACORD folder will not contain any child folders, unlike the following screenshot).
    Right click ACORD and select import from ZIP.
    Image represents importing ZIP file.
    Figure 7.1 - Import Zip File

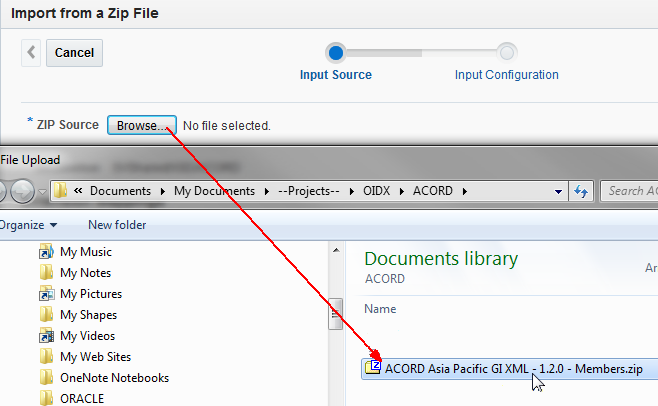

  3. Click 'Browse' and select the ACORD AML schema ZIP from your local drive.
    Image represents secelting zip file from your local drive.
    Figure 7.2 - Import from Local Drive

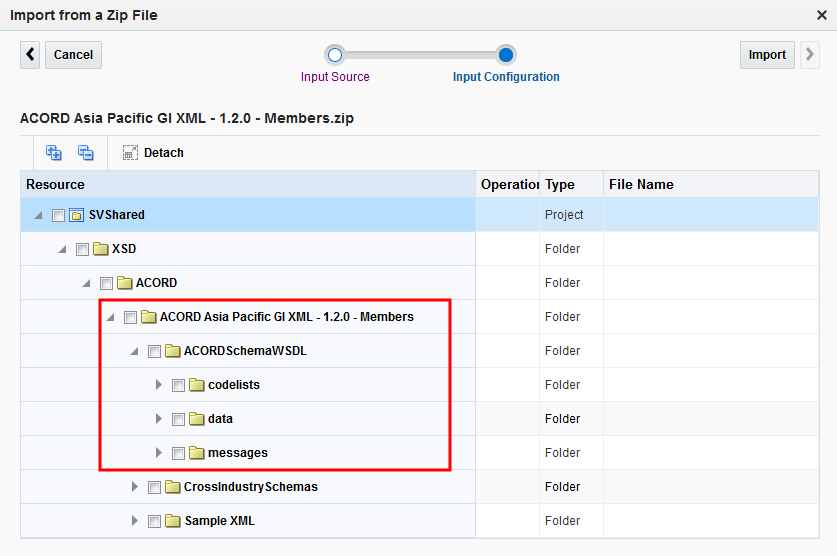

  4. Following hierarchy will display.
    Image represents imported heirarchy.
    Figure 7.3 - Hierarchy

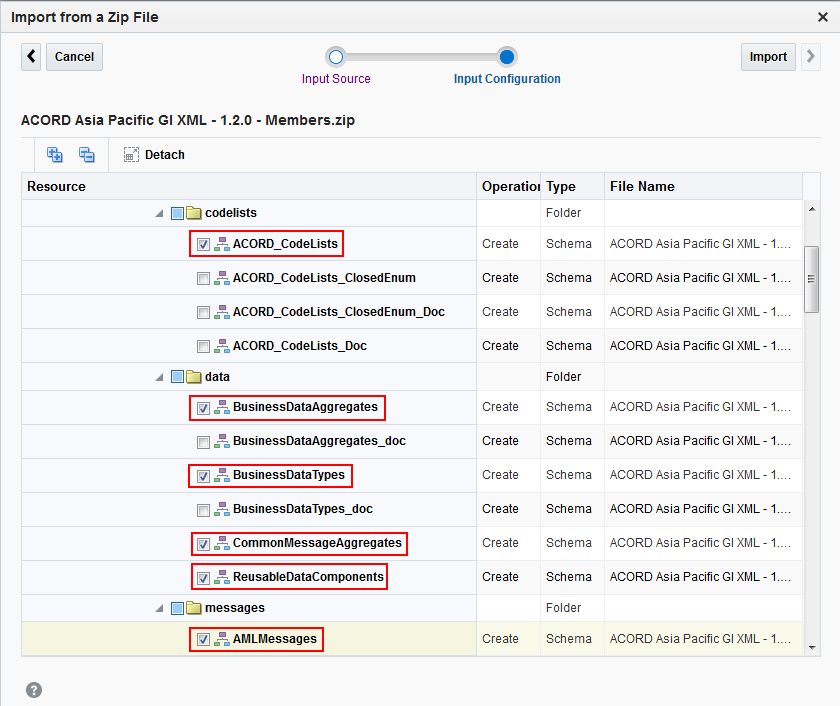

  5. Deselect all files except codelists/ACORD_CodeLists, data/BusinessDataAggregates, data/BusinessDataTypes, data/CommonMessageAggregates, data/ReusableDataComponents, and messages/AMLMessages.
    Image represents select all except highlighted files.
    Figure 7.4 - Highlighted Items Selected
  6. Click Import.
  7. Initially, the “root” AML folder is created with a name that’s not required in the project structure.
    Image represents the root aml folder structure.
    Figure 7.5 - Root AML Folder Structure
    Rename it to 'AUGI230'.
    Image represents rename option
    Image represents rename AUGI230
    Figure 7.6 - Rename Option
  8. Click 'Activate' to apply the changes.
