Chapter - 8 : OIDG Release Upgrade

---

This chapter includes following topics:

• OIDG Release Upgrade Prerequisite
• OIDG Release Deployment / Un-Deployment Process
• OIDG Release Un-Deployment Process
• OIDG Release Deployment Process

---

OIDG Release Upgrade Prerequisite

Delete old files from the following locations and replace them with the new release files:

1. Copy the following files from the OIDG release package to /<user home base>/Chef/OIDG
• AdminView.ear
• log4j-api-2.9.1.jar
• log4j-core-2.9.1.jar
• OIDX_POC_DSL.ear
• OIDX_PrcOrch_cfgplan.xml
• OSBCoreCustomizationFile.xml
• QuickView.ear
• IDXPORTAL.ear
• sca_ResultProcessing.jar
• ResultProcessing_cfgplan.xml
• sca_OIDX_PrcOrch.jar
• SVCore_SrvVirt.sbar
2. Copy the files below from the OIDG release package to /user home base/Chef/OIDG/config
   • o adapter-oidx-cache-config.xml
   • configfilesecurity.key
   • oidx_dsl_log4j.xml
   • PIIConfig.xml

OIDG Release Deployment / Un-Deployment Process

1. Navigate to /OIDG-CoreInstallation/chef/ and run: sh dep_undep_app_config.sh from root.

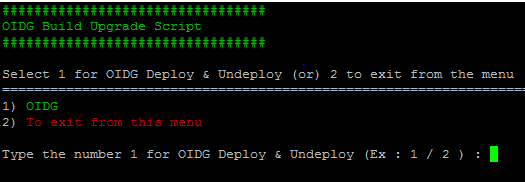

2. Select 1 for OIDG Deploy/Un-Deploy (or) 2 for Exit

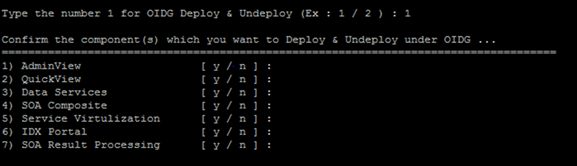

3. Select the components you want to undeploy and replace from the new release package.
   1) AdminView             [ y / n ] : (y/n)
   2) QuickView               [ y / n ] : (y/n)
   3) Data Services          [ y / n ] : (y/n)
   4) SOA Composite          [ y / n ] : (y/n)
   5) Service Virtualization [ y / n ] : (y/n)
   6) IDX Portal             [ y / n ] : (y/n)
   7) SOA Result Processing  [ y / n ] : (y/n)

4. Provide the Linux user/group and Middleware Home details.
   • Linux Username:
     • Example: oracle (the user you installed Fusion Middleware with)

   • Linux Groupname:
     • Example: oinstall or dba (the group you installed Fusion Middleware with)
   • FMW Middleware Home:
     • Middleware home path including Oracle_Home
       Example: /Path/Oracle/Middleware/Oracle_Home
   • All the inputs given are Correct? (y/n) : (y/n)

   • WebLogic User Password

5. Check the Confirmation.


OIDG Release Undeployment Process

1. Navigate to /OIDG-CoreInstallation/chef/ and run: sh install_undep_app.sh from root

2. Check the status of Chef Script: Finished or Failed


Please verify the status of Undeployment components from WebLogic console and EM.

OIDG Release Deployment Process

1. Navigate to /OIDG-CoreInstallation /chef/ and run: sh install_dep_app.sh from root.

2. Check the status of Chef Script: Finished or Failed.


Please verify the status of deployed components from the WebLogic and EM consoles.
