Activating the XUDT UDT Conversion Feature

This procedure is used to enable and turn on the XUDT UDT Conversion feature using the feature’s part number and a feature access key.

The feature access key for the XUDT UDT Conversion feature is based on the feature’s part number and the serial number of the EAGLE, making the feature access key site-specific.

The enable-ctrl-feat command enables the feature by inputting the feature’s access key and the feature’s part number with these parameters.

:fak – The feature access key provided by Oracle. The feature access key contains 13 alphanumeric characters and is not case sensitive.

:partnum – The Oracle-issued part number of the XUDT UDT Conversion feature, 893035301.

The enable-ctrl-feat command requires that the database contain a valid serial number for the EAGLE, and that this serial number is locked. This can be verified with the rtrv-serial-num command. The EAGLE is shipped with a serial number in the database, but the serial number is not locked. The serial number can be changed, if necessary, and locked once the EAGLE is on-site, with the ent-serial-num command. The ent-serial-num command uses these parameters.

:serial – The serial number assigned to the EAGLE. The serial number is not case sensitive.

:lock – Specifies whether or not the serial number is locked. This parameter has only one value, yes, which locks the serial number. Once the serial number is locked, it cannot be changed.

Note:

To enter and lock the EAGLE’s serial number, the ent-serial-num command must be entered twice, once to add the correct serial number to the database with the serial parameter, then again with the serial and the lock=yes parameters to lock the serial number. You should verify that the serial number in the database is correct before locking the serial number. The serial number can be found on a label affixed to the control shelf (shelf 1100).

This feature cannot be temporarily enabled (with the temporary feature access key).

Once this feature has been enabled, the feature must be turned on with the chg-ctrl-feat command. The chg-ctrl-feat command uses these parameters.

:partnum – The Oracle-issued part number of the XUDT UDT Conversion feature, 893035301.

:status=on – used to turn the XUDT UDT Conversion feature on.

Once the XUDT UDT Conversion feature has been turned on, it be cannot be turned off.

The status of the features in the EAGLE is shown with the rtrv-ctrl-feat command.

  1. Display the features that are enabled by entering the rtrv-ctrl-feat command. The following is an example of the possible output.
    rlghncxa03w 10-12-28 21:15:37 GMT EAGLE5 43.0.0
    The following features have been permanently enabled:

    Feature Name              Partnum    Status  Quantity
    Command Class Management  893005801  on      ----
    LNP Short Message Service 893006601  on      ----
    Intermed GTT Load Sharing 893006901  on      ----
    HC-MIM SLK Capacity       893012707  on      64

    The following features have been temporarily enabled:
    Feature Name              Partnum    Status  Quantity     Trial Period Left
    Zero entries found.

    The following features have expired temporary keys:

    Feature Name              Partnum
    Zero entries found.

    If the XUDT UDT Conversion feature is enabled and turned on, no further action is necessary. This procedure does not need to be performed.

    If the XUDT UDT Conversion feature is enabled and but not turned on, continue the procedure with 7.

    If the XUDT UDT Conversion feature is not enabled, continue the procedure with 6 if the rtrv-ctrl-feat output in 1 shows any controlled features. If the rtrv-ctrl-feat output shows only the HC-MIM SLK Capacity feature with a quantity of 64, 2 through 5 must be performed.

  2. Display the serial number in the database with the rtrv-serial-num command. This is an example of the possible output.
    rlghncxa03w 10-12-28 21:15:37 GMT EAGLE5 43.0.0
    System serial number = nt00001231

    System serial number is not locked.

    rlghncxa03w 10-12-28 21:15:37 GMT EAGLE5 43.0.0
    Command Completed.

    Note:

    If the serial number is correct and locked, continue the procedure with 6. If the serial number is correct but not locked, continue the procedure with 5. If the serial number is not correct, but is locked, this feature cannot be enabled and the remainder of this procedure cannot be performed. Contact the Customer Care Center to get an incorrect and locked serial number changed. Refer to My Oracle Support (MOS) for the contact information. The serial number can be found on a label affixed to the control shelf (shelf 1100).
  3. Enter the correct serial number into the database using the ent-serial-num command with the serial parameter.

    For this example, enter this command.

    ent-serial-num:serial=<EAGLE’s correct serial number>

    When this command has successfully completed, the following message should appear.

    rlghncxa03w 10-12-28 21:15:37 GMT EAGLE5 43.0.0
    ENT-SERIAL-NUM:  MASP A - COMPLTD
  4. Verify that the serial number entered into 3 was entered correctly using the rtrv-serial-num command. This is an example of the possible output.
    rlghncxa03w 10-12-28 21:15:37 GMT EAGLE5 43.0.0
    System serial number = nt00001231

    System serial number is not locked.

    rlghncxa03w 10-12-28 21:15:37 GMT EAGLE5 43.0.0
    Command Completed.

    If the serial number was not entered correctly, repeat 3 and 4 and re-enter the correct serial number.

  5. Lock the serial number in the database by entering the ent-serial-num command with the serial number shown in 2, if the serial number shown in 2 is correct, or with the serial number shown in 4, if the serial number was changed in 3, and with the lock=yes parameter.

    For this example, enter this command.

    ent-serial-num:serial=<EAGLE’s serial number>:lock=yes

    When this command has successfully completed, the following message should appear.

    rlghncxa03w 10-12-28 21:15:37 GMT EAGLE5 43.0.0
    ENT-SERIAL-NUM:  MASP A - COMPLTD
  6. Enable the XUDT UDT Conversion feature with the enable-ctrl-feat command specifying the part number for the XUDT UDT Conversion feature and the feature access key. Enter this command.

    enable-ctrl-feat:partnum=893035301:fak=<XUDT UDT Conversion feature access key>

    Note:

    The XUDT UDT Conversion feature cannot be enabled with a temporary feature access key.

    Note:

    The values for the feature access key (the fak parameter) are provided by Oracle. If you do not have the feature access key for the XUDT UDT Conversion feature, contact your Oracle Sales Representative or Account Representative.

    When the enable-crtl-feat command has successfully completed, this message should appear.

    rlghncxa03w 10-12-28 21:15:37 GMT EAGLE5 43.0.0
    ENABLE-CTRL-FEAT: MASP B - COMPLTD

    If you do not wish to turn the XUDT UDT Conversion feature on at this time, continue the procedure with 8.

    If you wish to turn the XUDT UDT Conversion feature on at this time, continue the procedure with 7.

    Caution:

    If the XUDT UDT Conversion feature is not turned on, provisioning for XUDT UDT Conversion cannot be performed.
  7. Turn the XUDT UDT Conversion feature on with the chg-ctrl-feat command specifying the part number for the XUDT UDT Conversion feature and the status=on parameter.

    Enter this command.

    chg-ctrl-feat:partnum=893035301:status=on

    When the chg-crtl-feat command has successfully completed, this message should appear.

    rlghncxa03w 10-12-28 21:15:37 GMT EAGLE5 43.0.0
    CHG-CTRL-FEAT: MASP B - COMPLTD
  8. Verify the changes by entering the rtrv-ctrl-featcommand with the XUDT UDT Conversion feature part number. Enter this command.

    rtrv-ctrl-feat:partnum=893035301

    The following is an example of the possible output.

    rlghncxa03w 10-12-28 21:15:37 GMT EAGLE5 43.0.0
    The following features have been permanently enabled:

    Feature Name              Partnum   Status Quantity
    XUDT UDT Conversion       893035301 on     ----

    The following features have been temporarily enabled:

    Feature Name              Partnum    Status  Quantity     Trial Period Left
    Zero entries found.

    The following features have expired temporary keys:

    Feature Name              Partnum
    Zero entries found.
  9. Back up the new changes using the chg-db:action=backup:dest=fixed command. These messages should appear, the active Maintenance and Administration Subsystem Processor (MASP) appears first.
    BACKUP (FIXED) : MASP A - Backup starts on active MASP.
    BACKUP (FIXED) : MASP A - Backup on active MASP to fixed disk complete.
    BACKUP (FIXED) : MASP A - Backup starts on standby MASP.
    BACKUP (FIXED) : MASP A - Backup on standby MASP to fixed disk complete.

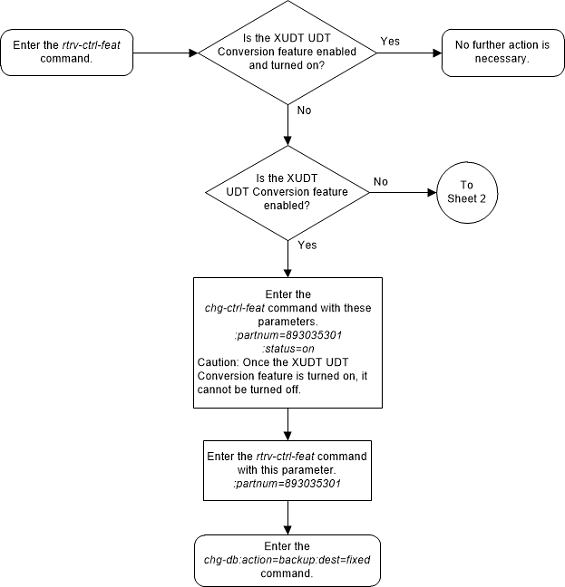

Figure 5-73 Activate the XUDT UDT Conversion Feature - Sheet 1 of 3

Figure 5-74 Activate the XUDT UDT Conversion Feature - Sheet 2 of 3

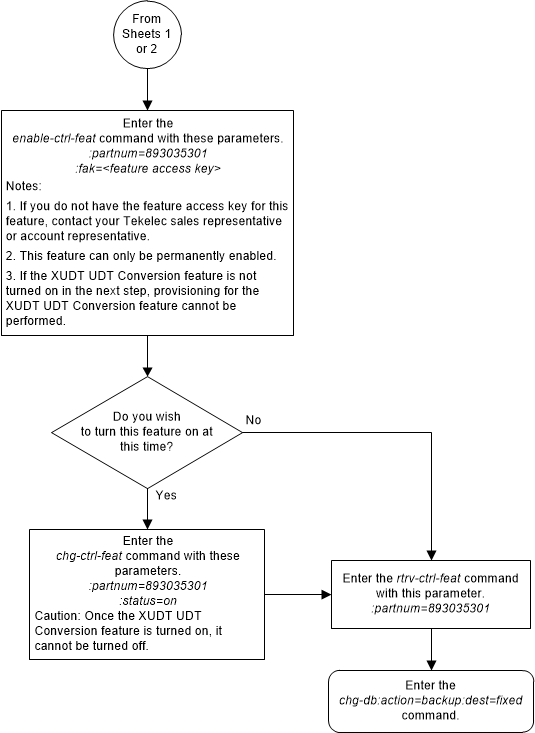

Figure 5-75 Activate the XUDT UDT Conversion Feature - Sheet 3 of 3
