Turning the MO SMS B-Party Routing Feature Off

This procedure is used to turn off the MO SMS B-Party Routing feature using the chg-ctrl-feat command.

The chg-ctrl-feat command uses the following parameters:

:partnum - The part number of the MO SMS B-Party Routing feature, 893024601.

:status=off – used to turn off the MO SMS B-Party Routing feature.

The status of the MO SMS B-Party Routing feature must be on and is shown with the rtrv-ctrl-feat command.

Caution:

If the MO SMS B-Party Routing feature is turned off, provisioning for MO SMS B-Party Routing can be performed with the chg-gsmsmsopts, chg-is41smsopts, ent-srvsel, dlt-srvsel, and chg-srvsel commands. The EAGLE will not perform global title translation on the MAP B-Party digits of the message.

1. Display the status of the MO SMS B-Party Routing feature by entering the rtrv-ctrl-feat:partnum=893024601 command.

   The following is an example of the possible output.

   rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
   The following features have been permanently enabled:

   Feature Name              Partnum    Status  Quantity
   MO SMS B-Party Routing    893024601  on      ----

   The following features have been temporarily enabled:

   Feature Name              Partnum    Status  Quantity     Trial Period Left
   Zero entries found.

   The following features have expired temporary keys:

   Feature Name              Partnum
   Zero entries found.

   If the status of the MO SMS B-Party Routing feature is off, or if the MO SMS B-Party Routing feature is not enabled, this procedure cannot be performed.

2. Turn off the MO SMS B-Party Routing feature by entering the chg-ctrl-feat command with the status=off parameter.

   For example, enter this command.

   chg-ctrl-feat:partnum=893024601:status=off

   When this command has successfully completed, the following message should appear.

   rlghncxa03w 08-09-28 21:16:37 GMT EAGLE5 39.1.0
   CHG-CTRL-FEAT: MASP A - COMPLTD

3. Verify the MO SMS B-Party Routing feature has been turned off by using the rtrv-ctrl-feat:partnum=893024601 command. The following is an example of the possible output.

   rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
   The following features have been permanently enabled:

   Feature Name              Partnum    Status  Quantity
   MO SMS B-Party Routing    893024601  off     ----

   The following features have been temporarily enabled:

   Feature Name              Partnum    Status  Quantity     Trial Period Left
   Zero entries found.

   The following features have expired temporary keys:

   Feature Name              Partnum
   Zero entries found.

4. Back up the new changes using the chg-db:action=backup:dest=fixed command.

   These messages should appear, the active Maintenance and Administration Subsystem Processor (MASP) appears first.

   BACKUP (FIXED) : MASP A - Backup starts on active MASP.
   BACKUP (FIXED) : MASP A - Backup on active MASP to fixed disk complete.
   BACKUP (FIXED) : MASP A - Backup starts on standby MASP.
   BACKUP (FIXED) : MASP A - Backup on standby MASP to fixed disk complete.

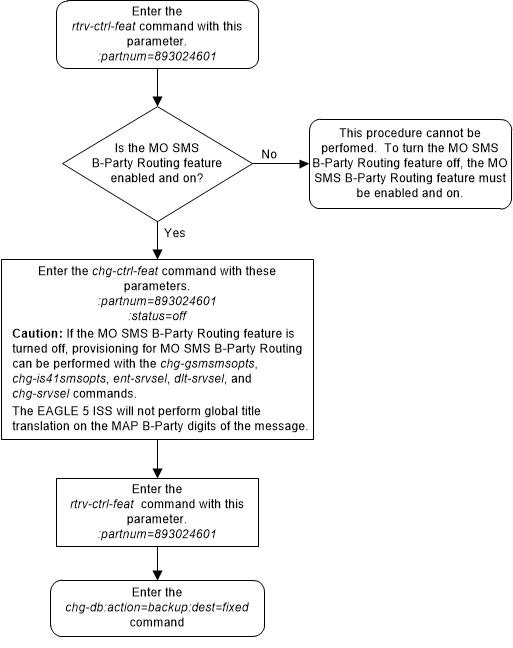

Figure A-12 Turn the MO SMS B-Party Routing Feature Off
