Changing the Attributes of a Service Selector Entry for the MO SMS B-Party Routing Feature

This procedure is used to provision an entry in the service selector table for the MO SMS B-Party Routing feature using the chg-srvsel command.

The chg-srvsel command uses these parameters.

:gti/gtia/gtii/gtin/gtin24 – The global title indicator. The GTI defines the domain as

  • gti and gtia (ANSI) with GTI=2
  • gtii (ITU international) with GTI=2 or GTI=4, and
  • gtin and gtin24 (ITU national) with GTI=2 or GTI=4.

The gti and gtia parameters are equivalent.

:nserv – the DSM service - smsmr.

:tt – The global title translation type value shown in the rtrv-srvsel output for the service selector that is being changed.

:ssn – The subsystem number shown in the rtrv-srvsel output for the service selector that is being changed.

:ndfltact - The default action identifier that is associated with the service selector entry. This parameter has one of these values.
  • A GTT action identifier shown in the rtrv-gttact output whose ACTION value is either disc, udts, or tcaperr.
  • fallback - Fallback to the relay data. The relayed MSU is routed according to the routing data provided by the service.
  • falltogtt - Fallback to GTT. If the gttselid parameter has a value other than none, and the GTT selector search fails, the GTT selector search is performed again using the gttselid=none parameter.

:on=gttrqd - Global title translation is required after the service execution is complete and the message is relayed by the service.

:off=gttrqd - Global title translation is not required after the service execution is complete and the message is relayed by the service.

:ngttselid - The GTT selector ID user for performing global title translation on messages that are relayed by the service. (0 - 65534, or none)

:nai or :naiv – The nature of address indicator shown in the rtrv-srvsel output for the service selector that is being changed. See Table A-7 for NAI/NAIV mapping.

Note:

The nature of address indicator parameters (naiv or nai) can be specified by supplying either a mnemonic or an explicit value. At no time may both the mnemonic and the explicit value be specified at the same time for the same parameter. You can specify either the naiv or nai parameter. Table A-7 shows the mapping between the naiv and the nai parameters.

:np or :npv– The numbering plan value shown in the rtrv-srvsel output for the service selector that is being changed. See Table A-8 for NP/NPV mapping.

Note:

The numbering plan parameters (npv or np) can be specified by supplying either a mnemonic or an explicit value. At no time may both the mnemonic and the explicit value be specified at the same time for the same parameter. You can specify either the npv or np parameter. Table A-8 shows the mapping between the npv and the np parameters.
:nsnai – The service nature of address indicator.
  • natl — National significant number
  • intl — International number
  • rnidn — Routing number prefix and international dialed/directory number
  • rnndn — Routing number prefix and national dialed/directory number
  • rnsdn — Routing number prefix and subscriber dialed/directory number
  • ccrndn — Country code, routing number, and national directory number
  • sub — Subscriber number

:nsnp – The service numbering plan - e164

Table A-7 NAIV/NAI Mapping

NAIV NAI Description
0 --- Unknown
1 Sub Subscriber Number
2 Rsvd Reserved for national use
3 Natl National significant number
4 Intl International number
5-127 --- Spare

Table A-8 NPV/NP Mapping

NPV NP Description
0 --- Unknown
1 E164 ISDN/telephony numbering plan
2 Generic Generic numbering plan
3 X121 Data numbering plan
4 F69 Telex numbering plan
5 E210 Maritime mobile numbering plan
6 E212 Land mobile numbering plan
7 E214 ISDN/mobile numbering plan
8 Private Private network or network-specific numbering plan
9-15 --- Spare

To perform this procedure, the MO SMS B-Party Routing feature must be enabled. Enter the rtrv-ctrl-feat command with the MO SMS B-Party Routing part number, 893024601, to verify whether or not the MO SMS B-Party Routing feature is enabled. If the MO SMS B-Party Routing feature is not enabled, perform the procedure Activating the MO SMS B-Party Routing Feature to enable MO SMS B-Party Routing feature.

  1. Display the service selector entries by entering this command rtrv-srvsel command.

    rtrv-srvsel:num=20992:force=yes

    The following is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0

GTIA    TT   NP       NAI   SSN  SNP   SNAI  SERV    GTTRQD
2       9    --       ---   *    e212  intl  gflex   off
DFLTACT=fallback  GTTSELID=9
2       10   --       ---   3    e164  intl  gflex   off
DFLTACT=fallback  GTTSELID=75
2       25   --       ----  50   e164  natl   smsmr  off
DFLTACT=action2   GTTSELID=3
2       253  --       ---   4    e214  natl  gflex   off
DFLTACT=fallback  GTTSELID=80

GTII    TT   NP       NAI   SSN  SNP   SNAI  SERV    GTTRQD
2       0    --       ---   2    e164  intl  gflex   off
DFLTACT=fallback  GTTSELID=56
2       18   --       ---   *    e164  rnsdn inpmr   on
DFLTACT=fallback  GTTSELID=80
2       35   --       ----  60   e164  intl   smsmr  off
DFLTACT=fallback  GTTSELID=none
4       0    e214     sub   *    e214  sub   gflex   off
DFLTACT=fallback  GTTSELID=98

GTIN    TT   NP       NAI   SSN  SNP   SNAI  SERV    GTTRQD
2       2    --       ---   3    e164  intl  gflex   off
DFLTACT=fallback  GTTSELID=8
2       9    --       --    *    ---   ---   inpq    ---
DFLTACT=--------- GTTSELID=-----
4       2    e164     natl  *    e164  rnndn inpmr   on
DFLTACT=fallback  GTTSELID=432
4       9    ---      ---   4    ---   ---   inpq    ---
DFLTACT=--------- GTTSELID=-----
4       45   e210     intl  75   e164  sub    smsmr  on
DFLTACT=fallback  GTTSELID=none

SRV SELECTOR table is (13 of 20992)   1 % full

    Note:

    If the rtrv-srvsel command is entered with no other parameters specified, a maximum of 50 entries are displayed. To display more than 50 entries, the force=yes parameter must be specified with the rtrv-srvsel command and the num parameter value must be greater than 50. Since there can be a maximum of 20992 service selectors in the database, to display all the service selectors in the database, the force=yes and num=20992 parameters must be specified with the rtrv-srvselcommand.

    If the value smsmr is shown in the SERV column of the rtrv-srvsel output, continue the procedure with 3.

    If the value smsmr is not shown in the SERV column of the rtrv-srvsel output, continue the procedure with 2.

  2. Verify the status of the MO SMS B-Party Routing feature by entering the rtrv-ctrl-featcommand with the MO SMS B-Party Routing feature part number. Enter this command.

    rtrv-ctrl-feat:partnum=893024601

    The following is an example of the possible output.

    rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
The following features have been permanently enabled:

Feature Name              Partnum    Status  Quantity
MO SMS B-Party Routing    893024610  on      ----

The following features have been temporarily enabled:

Feature Name              Partnum    Status  Quantity     Trial Period Left
Zero entries found.

The following features have expired temporary keys:

Feature Name              Partnum
Zero entries found.

    If the MO SMS B-Party Routing feature has not been enabled, perform the procedure Activating the MO SMS B-Party Routing Feature procedure to enable this feature.

  3. From the rtrv-srvsel output in 1, select the service selector that will be removed. Record all the values for this service selector. These values and the new values for the snp, snai, and serv parameters will be used in 8 with the rtrv-srvsel command to verify the changes that will be made to the service selector.
    Continue the procedure by performing one of these steps.
    • Continue the procedure with 7 if:
      • The off=gttrqd parameter will be specified for the service selector entry, or
      • The on=gttrqd parameter will be specified value for the service selector entry and the rtrv-srvsel output contains entries whose GTTRQD value is on, and
      • The ndfltact value will be either fallback or falltogtt.
    • Continue the procedure with 6 if:
      • The off=gttrqd parameter will be specified for the service selector entry, or
      • The on=gttrqd parameter will be specified value for the service selector entry and the rtrv-srvsel output contains entries whose GTTRQD value is on, and
      • The ndfltact value will be a GTT action identifier.
    • Continue the procedure with 4 if the on=gttrqd parameter will be specified value for the service selector entry and the rtrv-srvsel output contains no entries whose GTTRQD value is on.
  4. Enter this command to verify if any DSMs or SLICs are in the database.

    rtrv-stp:gpl=vsccp

    This is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0
Card  Part Number  Rev Serial Number  Type     DB     APPL     GPL Version
----  -----------  --- -------------  ----     --     ----     -----------
1101  870-1275-01  W    10245689323    DSM     4096M  VSCCP    133-029-000
1201  870-1275-01  W    10245689337    DSM     4096M  VSCCP    133-029-000
1301  870-1275-01  W    10245689353    DSM     4096M  VSCCP    133-029-000

    If no entries are shown in the rtrv-stp output, continue the procedure with 5.

    If entries are shown in the rtrv-stp output, the EAGLE contains Legacy DSM cards. The on=gttrqd parameter cannot be specified if the EAGLE contains Legacy DSMs. To specify the on=gttrqd parameter, all the DSMs must be replaced by E5-SM4G or E5-SM8G-B cards. Contact My Oracle Support before replacing any service modules. Refer to My Oracle Support (MOS) for the contact information.

    After the DSMs have been replaced, continue the procedure by performing one of these steps.
    • Continue the procedure with 7 if the ndfltact value will be either fallback or falltogtt
    • Continue the procedure with 6 if the ndfltact value will be a GTT action identifier.
  5. Enter this command to verify if any E5-SM4G cards are in the database.

    rtrv-stp:gpl=sccphc

    This is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0
Card  Part Number  Rev Serial Number  Type     DB     APPL     GPL Version
----  -----------  --- -------------  ----     --     ----     -----------
1106  870-2860-01  W    10245689404    DSM     4096M  SCCPHC   133-029-000
1206  870-2860-01  W    10245689453    DSM     4096M  SCCPHC   133-029-000
1306  870-2860-01  W    10245689499    DSM     4096M  SCCPHC   133-029-000

    If entries no are shown in the rtrv-stp output, the EAGLE does not contains any DSM cards. To specify the on=gttrqd parameter, the EAGLE must contain DSM cards. Perform the Adding a Service Module procedure to add E5-SM4G or E5-SM8G-B cards to the database.

    If entries are shown in the rtrv-stp output or the Adding a Service Module procedure has been performed, continue the procedure by performing one of these steps.
    • Continue the procedure with 7 if the ndfltact value will be either fallback or falltogtt
    • Continue the procedure with 6 if the ndfltact value will be a GTT action identifier.
  6. Display the GTT action identifiers by entering the rtrv-gttact command.

    This is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0

ACTID      ACTION   ATCAPERR ITCAPERR UDTSERR UIMREQD
---------------------------------------------------------
action2    disc     ---      ---      ---     off

ACTID      ACTION   PCA           RI  SSN  MRNSET  MAPSET
-----------------------------------------------------------------------
action1    dup      002-002-002   gt  ---  DFLT    -----
     CDGTMODID = ---------  CGGTMODID = ---------
     USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---
action3    dup      003-003-003   gt  ---  1       -----
     CDGTMODID = ---------  CGGTMODID = ---------
     USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---

ACTID      ACTION   PCI           RI  SSN  MRNSET  MAPSET
-----------------------------------------------------------------------


ACTID      ACTION   PCN           RI  SSN  MRNSET  MAPSET
-----------------------------------------------------------------------


ACTID      ACTION   PCN24         RI  SSN  MRNSET  MAPSET
-----------------------------------------------------------------------


GTT-ACT  table is (3 of 2000) 1% full.

    The ndfltact parameter value must be a GTT action identifier (the ACTID value in the rtrv-gttact output) whose ACTION value is either disc, udts, or tcaperr.

    If the desired GTT action identifier is not shown in the rtrv-gttact output, add the desired GTT action identifier by performing the Adding a GTT Action procedure.

    If the desired GTT action identifier is shown in the rtrv-gttact output or the Adding a GTT Action procedure was performed, continue the procedure with 7.

  7. Change the service selector by entering the chg-srvsel command with the appropriate parameter combinations shown in Table A-9.

    Table A-9 Parameter Combinations for Changing Service Selectors for the MO SMS B-Party Routing Feature

    ANSI Service Selector ITU Service Selector
    Mandatory Parameters
    :gti/gtia = 2 :gtii/gtin/gtin24 = 2 :gtii/gtin/gtin24 = 4
    :tt = the value shown in the rtrv-srvsel output. :tt = the value shown in the rtrv-srvsel output. :tt = the value shown in the rtrv-srvsel output.
    :ssn = the value shown in the rtrv-srvsel output. :ssn = the value shown in the rtrv-srvsel output. :ssn = the value shown in the rtrv-srvsel output.
        :nai or :naiv - the value shown in the rtrv-srvsel output. See Note 1.
        :np or :npv - the value shown in the rtrv-srvsel output. See Note 1.
    Optional Parameters (See Note 2)
    :nserv = smsmr (See Note 3) :nserv = smsmr (See Note 3) :nserv = smsmr (See Note 3)
    :nsnp = e164 (See Note 3) :nsnp= e164 (See Note 3) :nsnp = e164 (See Note 3)
    :nsnai = sub, natl, intl, rnidn, rnndn, rnsdn, ccrndn :nsnai = sub, natl, intl, rnidn, rnndn, rnsdn, ccrndn :nsnai = sub, natl, intl, rnidn, rnndn, rnsdn, ccrndn
    :ndfltact = the disc/udts/tcaperr GTT action identifier shown in the rtrv-gttact output, fallback, or falltogtt. :ndfltact = the disc/udts/tcaperr GTT action identifier shown in the rtrv-gttact output, fallback, or falltogtt. :ndfltact = the disc/udts/tcaperr GTT action identifier shown in the rtrv-gttact output, fallback, or falltogtt.
    :on=gttrqd - This parameter cannot be specified if the off=gttrqd parameter is specified. :on=gttrqd - This parameter cannot be specified if the off=gttrqd parameter is specified. :on=gttrqd - This parameter cannot be specified if the off=gttrqd parameter is specified.
    :off=gttrqd - This parameter cannot be specified if the on=gttrqd parameter is specified. :off=gttrqd - This parameter cannot be specified if the on=gttrqd parameter is specified. :off=gttrqd - This parameter cannot be specified if the on=gttrqd parameter is specified.
    :ngttselid = 0 - 65534, or none. :ngttselid = 0 - 65534, or none. :ngttselid = 0 - 65534, or none.

    Notes:

    1. The nai and naiv, and the np and npv parameters cannot be specified together in the chg-srvsel command. Refer to Table A-7 for the nai and naiv parameter values. Refer to Table A-8 for the np and npv parameter values. The nai, naiv, np, and npv parameters can be specified only if the gtii/gtin/gtin24 parameter value is 4.

    2. A minimum of one optional parameter must be specified for the chg-srvsel command. The value of any optional parameter that is not specified is not changed.

    3. If the current SERV value is smsmr, the nserv and nsnp parameters cannot be specified. The SERV and SNP values cannot be changed.

    For this example, enter these commands.

    chg-srvsel:gtia=2:tt=25:ssn=50:nsnai=rnndn:on=gttrqd

    chg-srvsel:gtia=2:tt=253:ssn=4:nserv=smsmr:nsnp=e164:nsnai=rnidn :on=gttrqd:ndfltact=action2

    chg-srvsel:gtii=2:tt=35:ssn=60:nsnai=sub

    chg-srvsel:gtii=4:tt=0:ssn=*:nai=sub:np=e214:nserv=smsmr :nsnp=e164:nsnai=rnsdn :on=gttrqd:ngttselid=70

    chg-srvsel:gtin=4:tt=45:ssn=75:nai=intl:np=e210:nsnai=natl:ndfltact=action2:ngttselid=55

    chg-srvsel:gtin=2:tt=9:ssn=*:nserv=smsmr:nsnp=e164:nsnai=natl

    When each of these commands have successfully completed, the following message should appear.

    rlghncxa03w 08-09-28 21:15:37 GMT EAGLE5 39.1.0
CHG-SRVSEL: MASP A - COMPLTD
  8. Verify the changes using the rtrv-srvsel command and specifying the values that were recorded in 3 and the new values for the snp, snai, and serv parameters, as applicable..

    For this example, enter these commands.

    rtrv-srvsel:gtia=2:tt=25:ssn=50:snp=e164:snai=rnndn:serv:smsmr

    This is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0

GTIA    TT   NP       NAI   SSN  SNP   SNAI   SERV    GTTRQD
2       25   --       ----  50   e164  rnndn  smsmr   on
DFLTACT=action2   GTTSELID=3

SRV SELECTOR table is (13 of 20992)   1 % full

    rtrv-srvsel:gtia=2:tt=253:ssn=4:snp=e164:snai=rnidn:serv=smsmr

    This is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0

GTII    TT   NP       NAI   SSN  SNP   SNAI   SERV    GTTRQD
2       253  --       ----  4    e164  rnidn  smsmr   on
DFLTACT=action2  GTTSELID=80

SRV SELECTOR table is (13 of 20992)   1 % full

    rtrv-srvsel:gtii=2:tt=35:ssn=60:snp=e164:snai=sub:serv:smsmr

    This is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0

GTII    TT   NP       NAI   SSN  SNP   SNAI   SERV    GTTRQD
2       35   --       ----  60   e164  sub    smsmr   off
DFLTACT=fallback  GTTSELID=none

SRV SELECTOR table is (13 of 20992)   1 % full

    rtrv-srvsel:gtin=4:tt=0:ssn=*:snp=e164:snai=sub:nai=sub :np=e214:serv:smsmr

    This is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0

GTII    TT   NP       NAI   SSN  SNP   SNAI   SERV    GTTRQD
4       0    e214     sub   *    e164  rnsdn  smsmr   on
DFLTACT=fallback  GTTSELID=70

SRV SELECTOR table is (13 of 20992)   1 % full

    rtrv-srvsel:gtin=4:tt=45:ssn=75:snp=e164:snai=natl:nai=intl :np=e210:serv:smsmr

    This is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0

GTIN    TT   NP       NAI   SSN  SNP   SNAI   SERV    GTTRQD
4       45   e210     intl  75   e164  natl   smsmr   on
DFLTACT=action2  GTTSELID=55

SRV SELECTOR table is (13 of 20992)   1 % full

    rtrv-srvsel:gtin=2:tt=9:ssn=*:snp=e164:snai=natl:serv:smsmr

    This is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0

GTIN    TT   NP       NAI   SSN  SNP   SNAI   SERV    GTTRQD
2       9    --       ----  *    e164  natl   smsmr   off
DFLTACT=fallback  GTTSELID=none

SRV SELECTOR table is (13 of 20992)   1 % full
  9. Back up the new changes using the chg-db:action=backup:dest=fixed command. These messages should appear, the active Maintenance and Administration Subsystem Processor (MASP) appears first.
    BACKUP (FIXED) : MASP A - Backup starts on active MASP.
BACKUP (FIXED) : MASP A - Backup on active MASP to fixed disk complete.
BACKUP (FIXED) : MASP A - Backup starts on standby MASP.
BACKUP (FIXED) : MASP A - Backup on standby MASP to fixed disk complete.

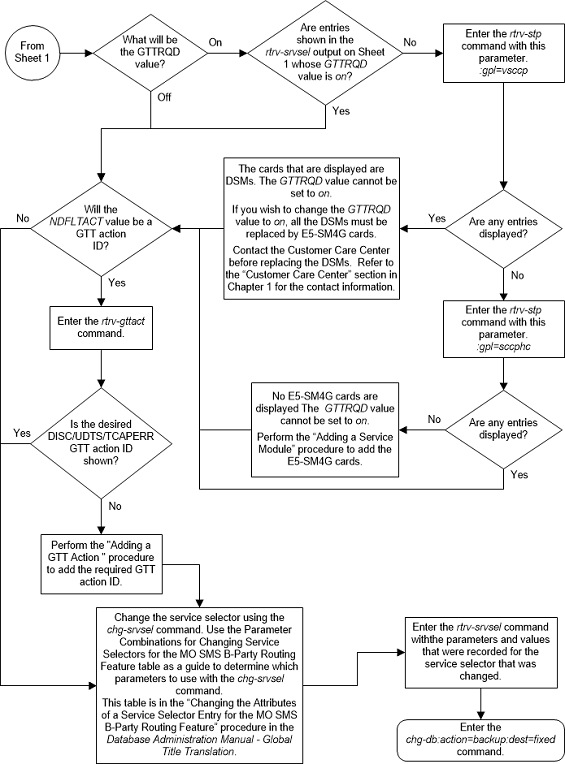

Figure A-10 Change the Attributes of a Service Selector Entry for the MO SMS B-Party Routing Feature - Sheet 1 of 2

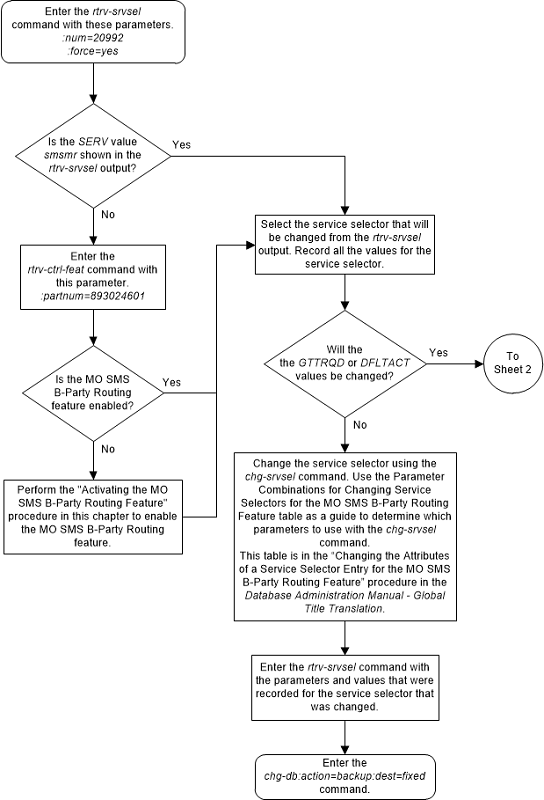

Figure A-11 Change the Attributes of a Service Selector Entry for the MO SMS B-Party Routing Feature - Sheet 2 of 2

Previous
Previous 		Next
Next
Go To Table Of Contents
Contents
