Allowed AFTPC Screening Actions

Figure 3-1 and Figure 3-2 show the screening actions of the allowed AFTPC screen.

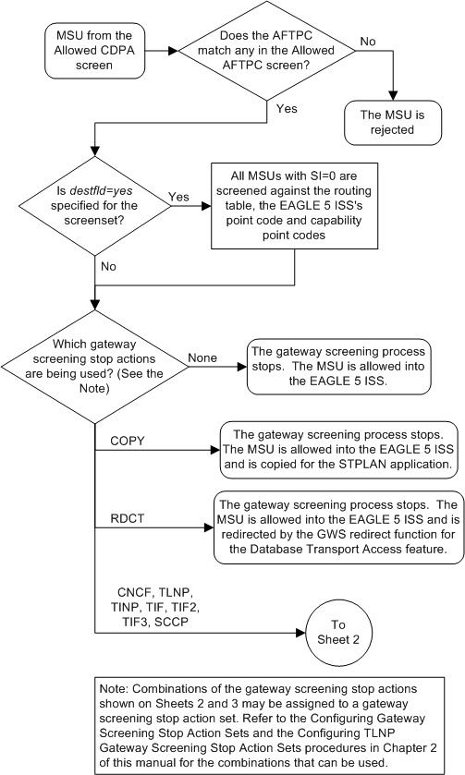

Figure 3-1 Allowed AFTPC Screening Actions - Sheet 1 of 2

img/allowed_aftpc_01_140964.jpg

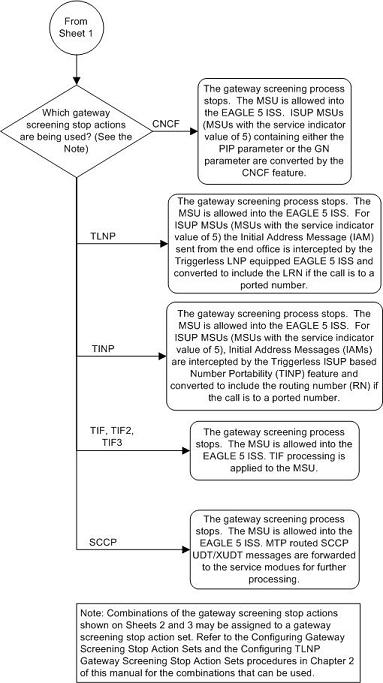

Figure 3-2 Allowed AFTPC Screening Actions - Sheet 2 of 2

img/allowed_aftpc_02_140964.jpg

Figure 3-3 Allowed Affected Point Code Screening Function

img/c_introduction_1a_dbags-fig2.jpg
