0107 - Minor IMT Failure Detected

A minor fault has been detected on one of the IMT buses. A minor fault consists of at least one card fault but no more than two card faults.

Example

RLGHNCXA21W 00-02-07 11:02:30 EST  EAGLE 35.0.0
*  0100.0107  * IMT BUS A                Minor IMT failure detected
                Card 1101, 1102

Alarm Level: Minor

Recovery

1. Visually check the IMTLEDS on the front of the cards.
   A red LED or LEDs denotes an IMT fault. If the top LED of the pair is red, there is a fault on IMT A. If the bottom LED is red, there is a fault on IMT B. See Figure 3-2.

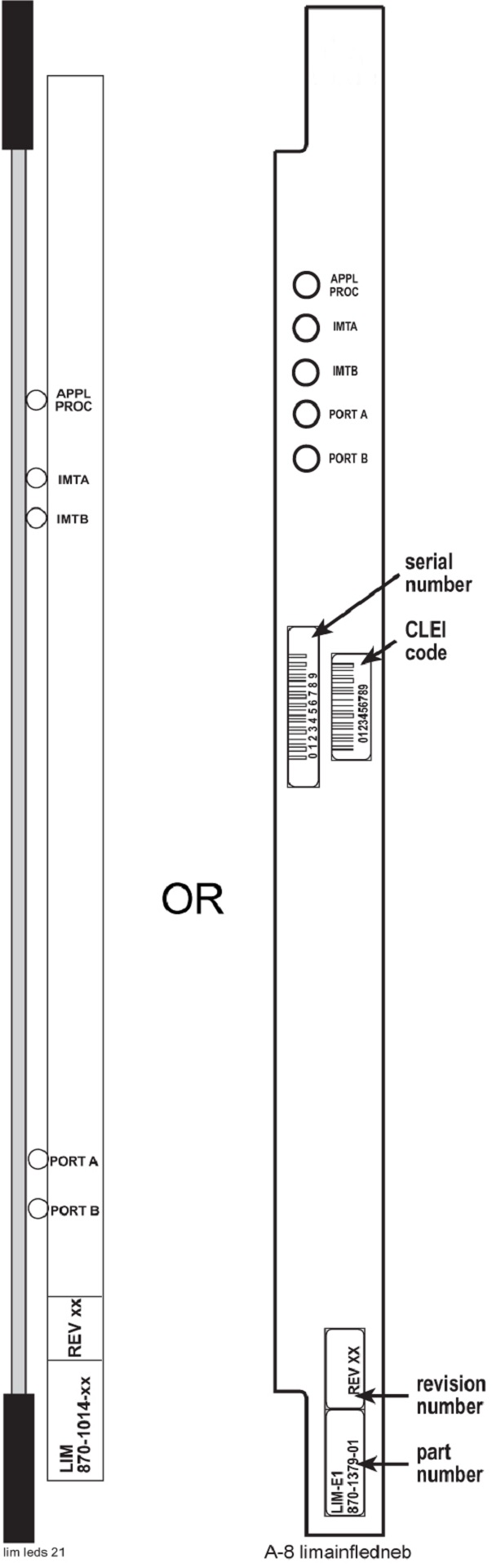

   Figure 3-2 Card LEDs


2. Note the card location or locations for cards with a red LED(s).
3. Using the card location(s) noted in 2, enter the following command to connect the card back to the IMT:
   conn-imt : loc =x : bus = y

   where x is the card location stenciled on the shelf of the system and y is the IMT bus to be returned to service.

   The following message appears using card location 1106 and IMT bus A:

   RLGHNCXA03W 00-02-07 11:02:30 EST  EAGLE 35.0.0
       Connect IMT Bus A command issued to card 1106

4. If the fault does not clear, reseat the affected card.

   warning:

   Reseating or replacing a LIM will cause both links on the card to fail. If the card is a LIM, place the links on the LIM out of service by entering the dact-slk command.
5. If the fault does not clear, replace the affected card.
6. If the fault does not clear, replace the IPMX card servicing the affected card.

   warning:

   Replacing an IPMX card causes the IMT to go down. (IPMX in Slot 09 affects IMT A and IPMX in Slot 10 affects IMT B.) Do not perform this step if the other bus also has a fault. Contact My Oracle Support (MOS).
7. If the fault has cleared and any of these cards are LIMs, place the links assigned to these cards back into service using the act-slk command.
8. If these steps do not clear the fault, contact My Oracle Support (MOS).
   Refer to the Maintenance Manual for card removal/replacement procedures.
