Oracle^® ZFS Storage ZS5-2 Getting Started Guide

Oracle^® ZFS Storage ZS5-2 Getting Started Guide

Contents

1 Oracle ZFS Storage ZS5-2 controller 2 Cable management arm 3 Slide rail kit 4 Four 6-meter Ethernet cables 5 Three 2.5-meter Ethernet cables 6 Four 3-meter SAS cables (up to eight 3-meter or 6-meter cables per customer request) 7 Two power cords

Front Panel Components

1 LEDs: Locator, Service, Power 2 System disk 1 3 Permanent HDD filler panels 4 Two USB 2.0 ports 5 RFID tag 6 System disk 0 7 Alert indicators

Back Panel Components

1 Power Supply Unit (PSU) 1 2 Second PCle option (slot 1) 3 Third PCle option (slot 3) 4 NET MGT port 5 First PCle option (slot 5) 6 Second 4x4 SAS HBA, or fourth PCle option (slot 6) 7 Four 10 Gb Ethernet ports 8 SER MGT port 9 Two USB 3.0 ports 10 Cluster interface card (slot 4) 11 First 4x4 SAS HBA (slot 2) 12 Power Supply Unit (PSU) 0

Install the Hardware

For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from http://docs.oracle.com/en/storage.

Connect System Cables

For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from http://docs.oracle.com/en/storage. If you have clustered controllers, connect the cables to both controllers. Do not connect power cables to the controllers or disk shelves until instructed to do so in "Power On and Configure the System."

Connect Clustered Controllers

If you have clustered controllers, connect the two controllers together. For detailed information, see the Oracle ZFS Storage Appliance Cabling Guide available from http://docs.oracle.com/en/storage.

Connect Disk Shelves

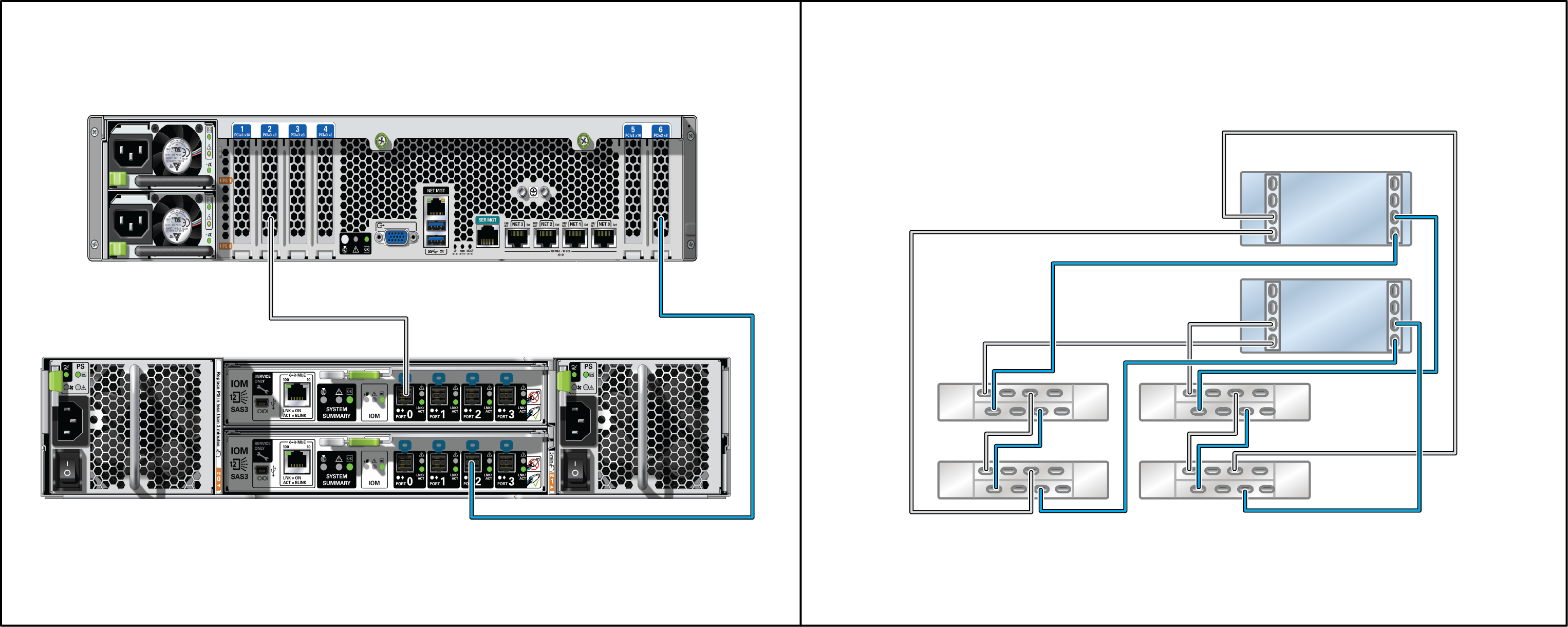

The following illustration shows clustered ZS5-2 controllers, each with two HBAs connected to four Oracle Storage Drive Enclosure DE3-24 disk shelves in two chains. For additional configuration options, see the Oracle ZFS Storage Appliance Cabling Guide available from http://docs.oracle.com/en/storage. Do not connect power cables to the disk shelves or controllers until instructed to do so in "Power On and Configure the System."

Power On and Configure the System

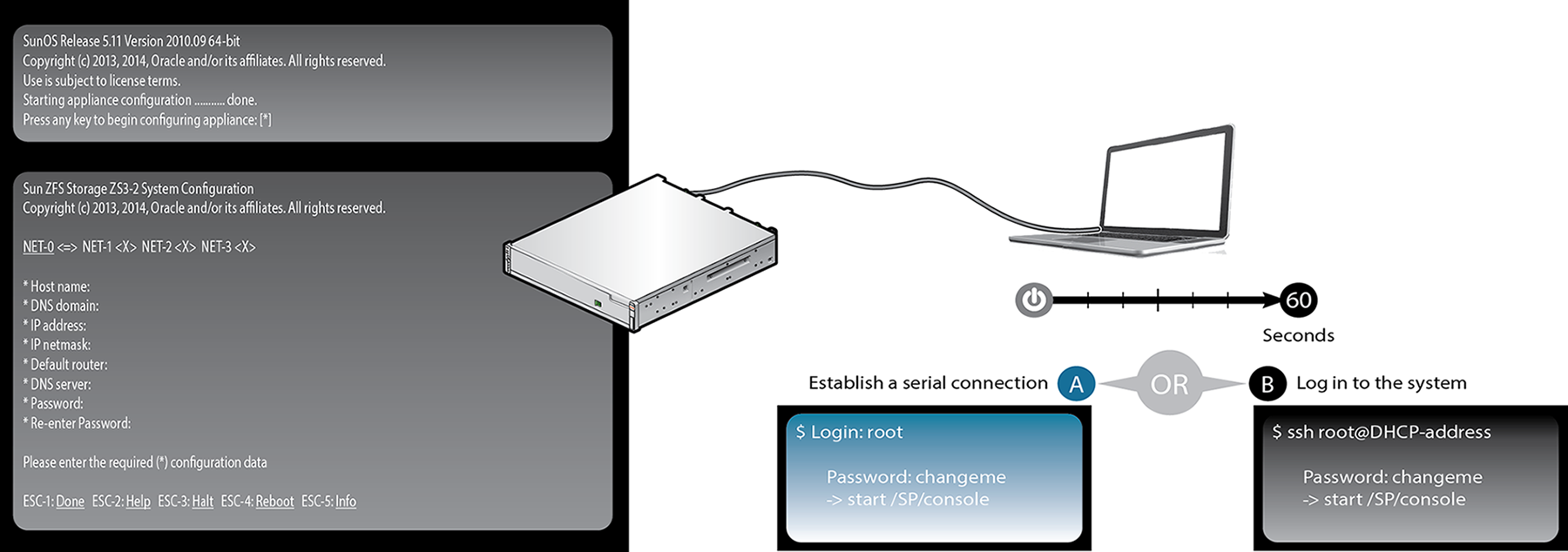

Required information: A) Network host name and port of your serial connection, or B) Network management port DHCP-assigned address. Connect disk shelf power cables, power on disk shelves, connect controller power cables, power on controllers, and configure the system as described in the Oracle ZFS Storage Appliance Installation Guide available from http://docs.oracle.com/en/storage.

Perform Initial Configuration

For detailed information, see the Oracle ZFS Storage Appliance Installation Guide available from http://docs.oracle.com/en/storage, including properly configuring the management interfaces and updating the controller software.
