About Mediation Capability

Mediation capability:

• Allows user to perform HTTP/2 signaling API message mediation with vendor-specific implementations and resolve interoperability issues for 5GC inter-NF communication
• Supports dynamic message transformation based on the configured policy rules

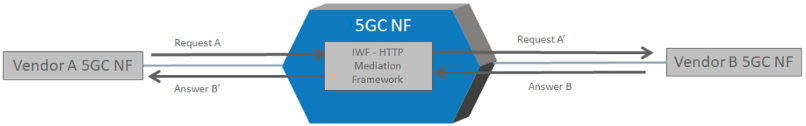

Figure 2-1 Mediation Capability

IWF mediation feature allows user to configure the mediation policies which shall be executed on incoming and outgoing NF messages.

IWF Mediation supports following capabilities:

• Header: Used to make custom changes to the request and/or response headers (add, remove, and modify)
• Body IEs: Used to make custom changes to HTTP message bodies
• Method/Status Code: Used to update the method name or status code in messages
• URL Rewriting: Modify any URLs in the API messages
• Transformation: Used to convert between JSON and XML
• Message Actions: Forward/Reject/Drop/Message Copy the messages based on configured rules
