Specifying the Layout of the Dialog Box

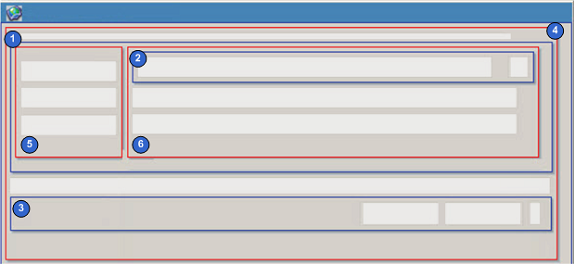

The following figure illustrates the layout of the dialog box that a page layout publisher displays when you create the layout for your custom dialog box. The layout can contain any combination of the following elements: horizontal layout section, vertical layout section, cells.

Explanation of Callouts

The Layout of the custom dialog box includes the following items:

1. A horizontal block that contains the controls.

2. A horizontal block that contains the autocomplete control and the button that Siebel CRM Desktop uses for the autocomplete control.

3. A horizontal block that contains the OK and Cancel buttons. This block sets the horizontal position for these buttons.

4. A vertical block that creates the start padding.

5. A vertical block that contains the controls for fields.

6. A vertical block that contains the controls for captions.

   You place the vertical blocks that contain controls for fields and captions in the first horizontal block.

For more information, see Guidelines for Sizing Controls in Cells.

To specify the layout of the dialog box

1. Use an XML editor to open the dialogs.xml file.

2. Add the following code. You enclose each block in a cell, and you include at least one cell that contains each control. This code starts with the first horizontal block. It also adds controls for the combobox, autocomplete list, buttons, button labels, and edge:

   <script><script>
   <dialog id="Competitor Dlg">
     <layout sizable="false" id="General" caption="#dlg_competitor_caption"
       small_icon="app_small_icon">
         <appearance height="130" width="350"position="parent_center">
         </appearance>
         <cell>
           <stack layout="horz" padding="5">
             <cell>
               <stack layout="vert" padding="5">
                 <cell size="5"/>
                 <cell>
                   <stack layout="horz" spacing="3">
                     <cell size="100">
                       <stack layout="vert" spacing="3">
                         <cell size="22">
                           <static id="lbl_competitor_name" tab_order="1">
                             <text>#head_competitor_name</text>
                           </static>
                         </cell>
                         <cell size="22">
                           <static id="lbl_relationship_role" tab_order="2">
                             <text>#lbl_relationship_role</text>
                           </static>
                         </cell>
                         <cell size="22">
                           <static id="lbl_reverse_relationship_role" tab_order="3">
                             <text>#lbl_reverse_relationship_role</text>
                           </static>
                         </cell>
                       </stack>
                     </cell>
                     <cell>
                       <stack layout="vert" spacing="3">
                         <cell size="22">
                           <stack layout="horz" spacing="2">
                             <cell>
                               <autocomplete id="CompetitorId" tab_order="4">
                                 <field>CompetitorId</field>
                                   <source type="Account"format=":[:(AccountName):]">
                                 </source>
                               </autocomplete>
                             </cell>
                             <cell size ="22" attraction="far">
                               <button id="btn_AccountId" image="lookup_button"
                               tab_order="5">
                                 <text>...</text>
                               </button>
                             </cell>
                           </stack>
                         </cell>
                         <cell size="22">
                           <combobox id="RelationshipRole" tab_order="6">
                             <field>RelationshipRole</field>
                             <items format=":[:(Label):]" value_column="Value"
                             has_null_item="true">
                              <source type="auto"
                               name="Opportunity.CompetitorRelationshipRolePicklist">
                             </source>
                             <order_by>
                               <order ascend="true">SortOrder</order>
                             </order_by>
                           </items>
                         </combobox>
                       </cell>
                         <cell size="22">
                             <combobox id="ReverseRelationshipRole" tab_order="7">
                           <field>ReverseRelationshipRole</field>
                             <items format=":[:(Label):]" value_column="Value"
                             has_null_item="true">
                             <source type="auto"
                        name="Opportunity.CompetitorReverseRelationshipRolePicklist">
                         </source>
                       <order_by>
                             <order ascend="true">SortOrder</order>
                         </order_by>
                       </items>
                     </combobox>
                   </cell>
                 </stack>
               </cell>
             </stack>
           </cell>
           <cell size="15">
             <edge id="close_border"/>
           </cell>
           <cell size="25">
             <stack layout="horz">
               <cell>
               </cell>
               <cell size="80">
                 <button id="btn_ok" tab_order="15">
                   <text>#btn_ok</text>
                 </button>
               </cell>
               <cell size="10"></cell>
               <cell size="80">
                 <button id="btn_cancel" tab_order="16">
                   <text>#btn_cancel</text>
                 </button>
               </cell>
             </stack>
           </cell>
         </stack>
        </cell>
       </stack>
      </cell>
     </layout>
   </dialog>
