Generic Vendor Download API

Purpose: Order Management System allows you to capture vendor information to download to another system, such as a retail store or warehouse management system.

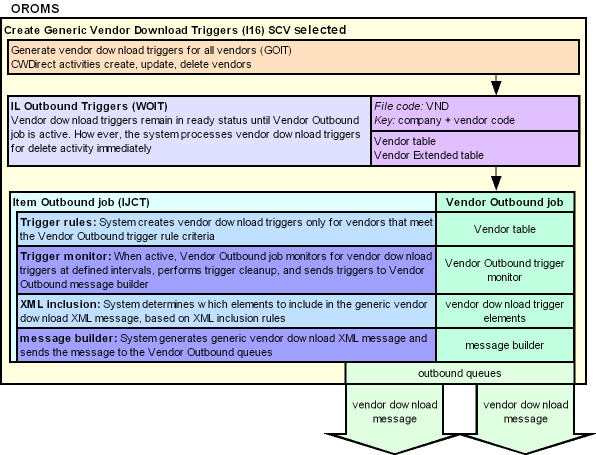

Vendor information flow: This flowchart explains how vendor information is downloaded from Order Management System.



In this chapter:

Vendor Download Process

- Identifying Vendor Download Triggers

- When are Vendor Download Triggers Created?

- Vendor Download Processing

- Vendor Outbound Trigger Activities

- Vendor Outbound Trigger Rules

- Vendor Trigger Cleanup

- Processing Vendor Delete Triggers

- Vendor Outbound XML Inclusion

Order Management System Setup for the Vendor API

- System Control Values

- Menu Options

- Periodic Function

Vendor Download XML Message (CWVendorOut)

Vendor Download Message: Sample XML

Vendor Download Process

The system creates vendor download triggers in the IL Outbound Trigger table when a vendor is created, updated, or deleted. The Vendor Outbound job in the Working with Integration Layer Processes (IJCT) menu option monitors the IL Outbound table for vendor download triggers to process and generates a Vendor Download XML Message (CWVendorOut) to send to the remote system.

Identifying Vendor Download Triggers

You can view all download triggers in the IL Outbound Trigger table at the Work with Outbound Interface Transactions Screen.

Each trigger in the IL Outbound Trigger table contains a:

File code: indicating the type of information to download and which IL process job processes the trigger. For vendor download triggers, the File code is VND.

Key: indicating the specific record to download. For vendor download triggers, the Key identifies the specific company and vendor associated with the vendor download trigger. For example, the Key 5550002006 indicates the vendor information is located in company 555 for vendor 2006.

Capture type: indicating the type of activity performed against the record:

- A = the vendor was created.

- C = the vendor was maintained. Note: The system removes any duplicate change triggers; see Vendor Trigger Cleanup.

- D = The vendor was deleted. Note: The system processes delete triggers immediately; see Processing Vendor Delete Triggers.

When are Vendor Download Triggers Created?

The Create Generic Vendor Download Trigger Records (I16) system control value controls whether the system creates vendor download triggers in the IL Outbound Trigger table.

• If this system control value is selected, certain actions in Order Management System triggers the system to create vendor download triggers in the IL Outbound Trigger table with a File code of VND. The IL Outbound Trigger table acts as a “to do” list for the vendor information that requires download.

• If this system control value is unselected, the system does not create vendor download triggers in the IL Outbound Trigger table.

You can also create a vendor download trigger for each vendor in your company using the Generating Outbound Interface Triggers (GOIT) menu option. Run this process to initially send vendors to the remote system.

Vendor Download Processing

To generate a vendor download message, the system:

1. Creates vendor download triggers, based on Order Management System activities that create, update, or delete vendors. See Vendor Outbound Trigger Activities for a list of the activities that create vendor download triggers.

2. Evaluates the trigger rules defined for the Vendor Outbound job to determine if the vendor download trigger is created. Vendor Outbound trigger rules define the criteria the vendor must meet in order for the system to create a vendor download trigger. See Vendor Outbound Trigger Rules.

3. When active, the trigger monitor defined for the Vendor Outbound job looks for unprocessed vendor download triggers to process at defined intervals, based on the Outbound delay time.

The Vendor Outbound trigger monitor:

• looks for vendor download triggers with the File code VND and a status of ready (R).

• removes duplicate vendor download triggers. See Vendor Trigger Cleanup.

• determines which vendor to download, based on the Key field for the vendor download trigger. The Key field for vendor download triggers consists of company + vendor code. For example, the Key 5550002006 indicates the vendor information is located in company 555 for vendor 2006.

• sends each vendor download trigger to the message builder defined for the Vendor Outbound job.

Note: The system creates a vendor download message for vendor outbound triggers with a delete (D) Capture type immediately, regardless if the Vendor Outbound job is active or inactive; see Processing Vendor Delete Triggers.

4. For each vendor download trigger, the message builder defined for the Vendor Outbound job determines which elements to include in the vendor download message, based on XML inclusion rules; see Vendor Outbound XML Inclusion.

5. The Vendor Outbound message builder sends the generated vendor download messages to the queues defined for the Vendor Outbound job whose Enabled field is selected. See Outbound Interface Queues.

Vendor Outbound Trigger Activities

This table indicates:

• which Order Management System activities create a vendor download trigger.

• which table the vendor download trigger references.

• the type of activity performed against the vendor:

- A = the vendor was created.

- C = the vendor was maintained.

- D = the vendor was deleted.

The system creates a vendor download trigger if the transaction updates any of the fields associated with the vendor, regardless if the updated field is included in the vendor download message. However, a vendor download trigger is not created when the system automatically updates a vendor, for example when a purchase order is accepted and the system updates the Vendor History table.

Note: Some activities may create duplicate triggers; however, the Vendor Trigger Cleanup will remove any duplicates before generating the Vendor Download XML Message (CWVendorOut).

You can review the vendor download triggers in the IL Outbound Trigger table at the Work with Outbound Interface Transactions Screen.

Note: The system creates a vendor download trigger for the activities listed below only if the vendor meets the criteria from the Vendor Outbound Trigger Rules.

Activity

Menu Option

Referenced Table

Trigger Type

Create a vendor

WVEN

Vendor

Vendor Extended

A

Create a vendor through Vendor Upload

LVUP

Vendor

Vendor Extended

A

Delete a vendor

WVEN

Vendor

Vendor Extended

D

Change a vendor

WVEN

Vendor

Vendor Extended

C

Change a vendor through Vendor Upload

LVUP

Vendor

Vendor Extended

C

Create or change a vendor discount

WVEN

Vendor Discount

C

Create, change, resequence, or delete a vendor contact

WVEN

Vendor Contact

C

Create, change, or delete a FOB address

WVEN

Vendor Contact

C

Create or change a vendor note

WVEN

Vendor Notes

C

Create, change, or delete a vendor user field

WVEN

Vendor User Field

C

Generate vendor download triggers

GOIT

IL Outbound Trigger

C

Vendor Outbound Trigger Rules

Vendor Outbound trigger rules define the criteria a vendor must meet in order for the system to create a vendor download trigger.

• If the vendor meets the Vendor Outbound trigger rule criteria, the system creates a vendor download trigger.

• If the vendor does not meet the Vendor Outbound trigger rule criteria, the system does not create a vendor download trigger.

You can define Vendor Outbound trigger rules for fields in the Vendor table that are included in the Vendor Download XML Message (CWVendorOut). If you define more than one criterion, the vendor must meet all of the criteria defined in order to generate a trigger.

Example: You define the following trigger rules for the Vendor Outbound job.

Vendor Outbound Trigger Rules

Vendor table criteria

Results

The Company field must equal 135 or 555.

The system creates a vendor download trigger only if the vendor being created, updated, or deleted is in company 135 or 555.

The Company field must equal 135 or 555.

The Type field must equal ’V’ (vendor).

The system generates a vendor download trigger only if the vendor being created, updated, or deleted is in company 135 or 555 and the type of vendor is V (vendor) and not M (manufacturer).

The Vendor # is not 2006 or 3242006.

The system generates a vendor download trigger only if the vendor being created, updated, or deleted is not vendor 2006 or vendor 3242006.

no criteria defined

The system generates a vendor download trigger any time a vendor is created, updated, or deleted.

You can define trigger rules for the Vendor Outbound job at the Outbound Interface Trigger Rules Screen; see Defining Outbound Interface Trigger Rules.

Note: When you create trigger rules, the system does not validate that your entry is a valid value for the field or is within the maximum field positions. Refer to your Field/Table Listing to review field attributes for the Vendor table.

Vendor Trigger Cleanup

Before processing the vendor download triggers, the Vendor Outbound job looks for duplicate unprocessed vendor download triggers.

Duplicate vendor download triggers exist if more than one trigger has the same:

File code VND

Capture type (C (change) or A (add))

Key (company + vendor code)

If duplicate vendor download triggers exist, the system removes duplicates, leaving only the most recent vendor download trigger for that capture type.

Example: The following change vendor download triggers exist in the IL Outbound table.

File

Type

Status

Key

Results

VND

C

R

5550002006

The system deletes 2 of these vendor download triggers, leaving only one change trigger to process.

VND

C

R

5550002006

VND

C

R

5550002006

Note: If both an add (Capture type A) and a change (Capture type C) vendor download trigger exists for the same Key, the system generates a Vendor Download XML Message (CWVendorOut) for both triggers.

Processing Vendor Delete Triggers

The system creates a vendor download message for vendor download triggers in the IL Outbound Trigger table with a delete (D) Capture type immediately, regardless if the Item Outbound job is active or inactive.

The system immediately:

• updates the Original process date field and Original process time field.

• updates the Status field to X (closed).

• generates the Vendor Download XML Message (CWVendorOut). The vendor download message for delete transactions only contains the Vendor element and its attributes.

However, if one or more unprocessed vendor download triggers exist in the IL Outbound Trigger table for the same Key, the system:

• if one of the matching vendor download triggers is an add (A) Capture type: does not create the delete vendor download trigger and removes any other matching vendor download triggers (add and change). Since the remote system never received the add trigger, you do not want to send a delete trigger or any other triggers.

Note: However, if an Original processed date and time exist for the add vendor download trigger (indicating the trigger was previously downloaded and then reset to reprocess again), the system generates a vendor download message for the delete vendor download trigger and removes any other matching vendor download triggers (add and change). Since the remote system previously received the add vendor download trigger, you want to send a delete notification to the system.

• if the matching vendor download trigger is a change (C) Capture type: generates a vendor download message for the delete vendor download trigger and removes any other matching change vendor download triggers. Since the remote system is receiving a delete trigger, you do not need to send any change triggers.

Example 1: When the system processes the delete vendor download trigger, an unprocessed add and change vendor download trigger exists in the IL Outbound table.

Vendor Key

Type

Status

Results

5550002006

A

R

Since the vendor has never been downloaded, the system does not create the delete vendor download trigger and instead removes the add and change triggers from the IL Outbound Trigger table.

5550002006

C

R

Example 2: When the system processes the delete vendor download trigger, a change vendor download trigger exists that has not been processed.

Vendor Key

Type

Status

Results

5550002006

C

R

The system immediately generates a vendor download message for the delete vendor download trigger. The system removes the change vendor download trigger from the IL Outbound Trigger table (don’t bother sending the change since the vendor has now been deleted).

You can review vendor download triggers at the Work with Outbound Interface Transactions Screen.

Vendor Outbound XML Inclusion

For each vendor download trigger, the Vendor Outbound message builder determines which elements to include in the Vendor Download XML Message (CWVendorOut), based on XML inclusion rules.

You can define Vendor Outbound XML inclusion rules at the Outbound Interface XML Inclusion Screen.

XML inclusion defines which elements to include in the Vendor Download XML Message (CWVendorOut).

• If the element is included, that element and its parents are included in the generated vendor download message.

• If the element is excluded, that element and its children are excluded from the generated vendor download message.

This table indicates which elements in the vendor download message are included, based on which elements you flag to include or exclude.

Include element in XML message?

Element

Selected = Include Vendor

Unselected = Exclude Vendor and all of its children, Discount, Contact, Note, and UserField; the system sends a message with only the Message element and its attributes

Vendor

Selected = Include Discount and its parent, Vendor

Unselected = Exclude Discount



Discount

Selected = Include Contact and its parent, Vendor

Unselected = Exclude Contact



Contact

Selected = Include Note and its parent, Vendor

Unselected = Exclude Note



Note

Selected = Include UserField and its parent, Vendor

Unselected = Exclude UserField



UserField

Order Management System Setup for the Vendor API

Before you can generate vendor download messages, you must perform the necessary Order Management System setup and processing.

Information requiring setup includes:

System Control Values

Menu Options

Periodic Function

System Control Values

System Control Value

Description

Create Generic Vendor Download Trigger Records (I16)

Select this field to create vendor triggers in the IL Outbound Trigger table for certain actions in Order Management System.

Outbound Interface Trigger File Purge Days (I14)

Enter the number of days to retain records in the IL Outbound Trigger table before purging them. Run the PURGIJT periodic function (program name ILR0026) to delete any records if: Last processed date is less than the current system date by the number of purge days and Status is X. You can also use the Purge option at the Work with Outbound Interface Transactions Screen to purge records.

Example: Today is 2/07 and you have set this value to 1. Any record whose Last processed date is 2/06 or earlier is purged.

Menu Options

Menu Option

Description

Generating Outbound Interface Triggers (GOIT)

Allows you to create an IL outbound trigger record for each vendor in your company. Run this process to initially send vendors to the remote system.

Working with Outbound Interface Transactions (WOIT)

Allows you to review, delete, or resend IL outbound trigger records.

Working with Integration Layer Processes (IJCT)

When active, the Vendor Outbound job creates a Vendor Download XML Message (CWVendorOut) for each unprocessed vendor trigger in the IL Outbound Trigger table.

You can also define:

• trigger rules; see Vendor Outbound Trigger Rules

• XML inclusion rules; see Vendor Outbound XML Inclusion

• the queues where the vendor download message is sent; see Work with Integration Layer Process Queues Screen.

Periodic Function

Periodic Function

Description

Purge IJCT Download (program name ILR0026)

Run this periodic function to purge processed IL outbound triggers, based on the Outbound Interface Trigger File Purge Days (I14) system control value: Last processed date is less than the current system date by the number of purge days and Status is X

Vendor Download XML Message (CWVendorOut)



The vendor download message contains vendor information to send from Order Management System to another system, such as a retail store or warehouse management system. See Generic Vendor Download API for an overview.

Message formatting specific to vendor download:

• A separate message is generated for each vendor you create, change, or delete.

• Delete transactions only contain the Vendor element and its attributes (based on Vendor Outbound XML Inclusion)

• If you exclude the element Vendor and all of its children (using the Vendor Outbound XML Inclusion rules), the system sends a vendor download message including only the Message element and its attributes.

See Generic Download Message Formatting for more information on how the system formats all download messages.

Vendor download message: See Vendor Download Message: Sample XML for a sample message.

Attribute Name

Type

Length

Comments

Message



source

alpha

25

Identifies the source of the XML message. RDC indicates the XML message is from Order Management System.

target

alpha

25

Identifies the target of the XML message.

type

alpha

25

Identifies the type of information in the XML message. CWVENDOROUT indicates the message contains vendor download information.

Vendor

Each vendor download message contains one Vendor element. For example, if you update 2 vendors, the system generates a separate vendor download message for each vendor.

transaction_type

alpha

1

Indicates the type of vendor information being downloaded.

A (add): new vendor.

C (change): changed vendor.

D (delete): deleted vendor.

company

numeric

3

The Order Management System company where the vendor is located.

From the Company field in the Vendor table.

vendor_nbr

numeric

7

The vendor code whose information you are downloading.

From the Vendor # field in the Vendor table.

type

alpha

1

Identifies whether the vendor is an actual vendor or a manufacturer.

V = This person is a vendor.

M = This person is a manufacturer.

From the Type field in the Vendor table.

name

alpha

30

The name of the vendor or the vendor’s company.

From the Name field in the Vendor table.

address_1

alpha

32

The vendor’s street address.

From the Address line 1 field in the Vendor table.

address_2

alpha

32

The vendor’s second address line.

From the Address line 2 field in the Vendor table.

address_3

alpha

32

The vendor’s third address line.

From the Address line 3 field in the Vendor table.

address_4

alpha

32

The vendor’s fourth address line.

From the Address line 4 field in the Vendor table.

ship_to_city

alpha

25

The city of the vendor’s address.

From the City field in the Vendor table.

country

alpha

3

The country of the vendor’s address.

From the RPR country field in the Vendor table.

country_name

alpha

30

The name of the country on the vendor’s address.

From the Description field in the Country table.

state

alpha

2

The state code of the vendor’s address.

From the VND state field in the Vendor table.

state_name

alpha

25

The name of the state on the vendor’s address.

From the Description field in the State table.

zip

alpha

10

The postal code of the vendor’s address.

From the Zip field in the Vendor table.

email_address

alpha

50

The vendor’s email address.

From the VND email address field in the Vendor table.

email_po

alpha

1

Indicates whether to email purchase orders to the vendor, or to produce a .PDF file for printing. Valid values:

Y = Send the purchase order as an attachment to the Purchase Order email

N = Generate the purchase order as a .PDF file for printing

From the Email PO field in the Vendor table.

Note: Emailing the purchase order is available only if the Email Purchase Order (K80) system control value is selected. See that system control value for more information.

Available in: 2.0 in release 2.5 of Order Management System.

remit_name

alpha

30

The name of the person or company you send payment to for vendor invoices.

From the Remit name field in the Vendor table.

remit_address_1

alpha

32

The remit to vendor’s street address.

From the Remit address 1 field in the Vendor table.

remit_address_2

alpha

32

The remit to vendor’s second address line.

From the Remit address 2 field in the Vendor table.

remit_address_3

alpha

32

The remit to vendor’s third address line.

From the Remit address 3 field in the Vendor table.

remit_address_4

alpha

32

The remit to vendor’s fourth address line.

From the Remit address 4 field in the Vendor table.

remit_city

alpha

25

The city of the remit to vendor’s address.

From the Remit city field in the Vendor table.

remit_country

alpha

3

The country of the remit to vendor’s address.

From the Remit to country field in the Vendor table.

remit_country_name

alpha

30

The name of the country on the remit to vendor’s address.

From the Description field in the Country table.

remit_state

alpha

2

The state code of the remit to vendor’s address.

From the VND remit state field in the Vendor table.

remit_state_name

alpha

25

The name of the state on the remit to vendor’s address.

From the Description field in the State table.

remit_zip

alpha

10

The postal code of the remit to vendor’s address.

From the Remit zip field in the Vendor table.

remit_email_address

alpha

50

The remit to vendor’s email address.

From the VND remit email address field in the Vendor table.

contact_name

alpha

30

The name of your primary contact at the vendor site.

From the Contact name field in the Vendor table.

drop_ship_pick

alpha

1

Indicates whether to process drop ship orders by printing picks, printing purchase orders, or transmitting information through the Order Broker Drop Ship interface for internet-based drop ship processing. Drop ship merchandise is merchandise you sell but do not stock.

P = Print drop ship pick slips for the vendor.

O = Print drop ship purchase orders for the vendor.

L = Use Order Broker’s Drop Ship Manager module for retailers and vendors to share and process information related to drop ship orders.

From the Drop ship pick field in the Vendor table.

edi_file

alpha

10

Indicates whether you transmit purchase order information electronically to the vendor using EDI (electronic data interchange) telecommunications.

The first position indicates if you would like to wait for Advanced Shipment Notice from the EDI service provider (Y = yes, N = no).

The second position indicates if you would like to include held invoices in the EDI transmission (Y = yes, N = no).

From the EDI file field in the Vendor table.

print_po

alpha

1

Indicates whether purchase order forms print for the vendor.

Y = Print purchase orders for the vendor.

N = Do not print purchase orders for the vendor.

From the Print PO field in the Vendor table.

factor

alpha

1

Indicates whether you are sending payment to a factor.

Y = Payment on invoices go to a factor.

N = Payment on invoices goes directly to the vendor.

From the Factor field in the Vendor table.

rating

numeric

5.2

The vendor’s quality rating.

From the Rating field in the Vendor table.

telephone_number

numeric

14

The vendor’s telephone number.

From the Telephone number field in the Vendor table.

extension

alpha

4

The telephone number extension.

From the Ext field in the Vendor table.

fax_number

alpha

14

The vendor’s fax number.

From the Fax number field in the Vendor table.

user_field_1

alpha

10

Vendor user field 1.

From the User field 1 field in the Vendor table.

user_field_2

alpha

10

Vendor user field 2.

From the User field 2 field in the Vendor table.

user_field_3

alpha

10

Vendor user field 3.

From the User field 3 field in the Vendor table.

surcharge_pct

numeric

5.2

A standing surcharge added to purchases from the vendor.

From the Surcharge % field in the Vendor table.

discount_pct

numeric

5.2

The primary discount percentage applied towards purchases from the vendor.

From the Disc % field in the Vendor table.

fax_flag

alpha

1

Indicates whether purchase orders or drop ship pick slips can be faxed to the vendor.

Y = Faxing purchase orders or drop ship pick slips is allowed.

N = Do not fax purchase orders or drop ship pick slips to the vendor.

From the Fax? field in the Vendor table.

Note: Faxing purchase orders or drop ship pick slips is not currently implemented.

edi_flag

alpha

1

Indicates whether you transmit purchase order information electronically to the vendor using EDI (Electronic Data Interchange) telecommunications.

Y = Use EDI telecommunications.

N = Do not use EDI telecommunications.

From the EDI? field in the Vendor table.

interface_vendor_

code

alpha

10

The vendor code on your Accounts Payable system.

From the Interface vendor code field in the Vendor table.

price_currency_

type

alpha

1

Indicates whether the prices from the vendor are in the system’s currency or the vendor’s currency.

S (system) = The price from the vendor is in your local currency.

V (vendor) = The price from the vendor is in the vendor’s currency.

N (no conversion) = The price from the vendor is in the current currency.

From the VND price currency type field in the Vendor table.

vat_number

alpha

20

A number used when calculating foreign currency.

From the Vat number field in the Vendor table.

eft_account_nbr

alpha

20

The electronic fund transfer account number for the vendor.

From the EFT account # field in the Vendor table.

terms_code

numeric

2

Not implemented.

terms_description

alpha

30

Not implemented.

terms_short_description

alpha

10

Not implemented.

terms_type

alpha

1

Not implemented.

terms_category

alpha

1

Not implemented.

terms_gross_due_

days

numeric

3

Not implemented.

terms_net_due_days

numeric

3

Not implemented.

terms_discount_

percent

numeric

5.2

Not implemented.

currency_code

alpha

3

Identifies the type of currency.

From the CUR currency code field in the Vendor table.

currency_description

alpha

30

A description of the currency.

From the CUR currency description field in the Currency table.

ship_via_code

numeric

2

Identifies the shipper used for shipping merchandise to your company from the vendor.

From the VND VIA ship via code field in the Vendor table.

ship_via_description

alpha

30

A description of the shipper.

From the Description field in the PO Ship Via table.

ship_via_lead_days

numeric

3

The number of days it takes the shipper to deliver merchandise to your company.

From the POV lead days field in the PO Ship Via table.

priority

numeric

1

The cash disbursement priority, in a range from 9 (highest priority) to 0 (lowest priority).

From the Priority field in the Vendor Extended table.

disc_calc_method

alpha

1

Defines the calculation method used for the vendor discounts.

C (Combine discount) = Combine the total dollar amount of the discounts to determine the net cost.

T (Tiered discount) = Calculate the largest discount against the purchase order’s gross cost, then the second largest discount is calculated against the net result of the first discount, and the third largest discount is calculated against the net result of the second discount.

From the VNE discount calc method field in the Vendor Extended table.

unit_discount_amt_1

numeric

9.4

The dollar amount the system subtracts from the unit cost of an item on the purchase order for vendor discount 1.

From the VNE unit discount amt 1 field in the Vendor Extended table.

unit_discount_amt_2

numeric

9.4

The dollar amount the system subtracts from the unit cost of an item on the purchase order for vendor discount 2.

From the VNE unit discount amt 2 field in the Vendor Extended table.

unit_discount_amt_3

numeric

9.4

The dollar amount the system subtracts from the unit cost of an item on the purchase order for vendor discount 3.

From the VNE unit discount amt 3 field in the Vendor Extended table.

unit_discount_pct_1

numeric

5.2

The percentage the system applies against the unit cost of an item on the purchase order for vendor discount 1.

From the VNE unit discount pct 1 field in the Vendor Extended table.

unit_discount_pct_2

numeric

5.2

The percentage the system applies against the unit cost of an item on the purchase order for vendor discount 2.

From the VNE unit discount pct 2 field in the Vendor Extended table.

unit_discount_pct_3

numeric

5.2

The percentage the system applies against the unit cost of an item on the purchase order for vendor discount 3.

From the VNE unit discount pct 3 field in the Vendor Extended table.

parent_vendor_nbr

numeric

7

A code for a company that is made up of one or more subsidiary vendors.

If the vendor code defined in this field matches the code in the vendor_nbr field, the vendor represents a parent (the main) vendor.

If the vendor code defined in this field does not match the code in the vendor_nbr field, the vendor represents a child (a subsidiary) vendor.

From the VNE parent vendor number field in the Vendor Extended table.

drop_ship_batch_size

numeric

7

The number of pick slips that print in one drop ship batch before the system creates a new batch.

From the VNE drop ship batch size field in the Vendor Extended table.

send_rtn_to_

collaborate

alpha

1

Indicates whether the system should send return and return authorization information for the vendor to a drop ship application.

Y = Automatically send return and return authorization information to a drop ship application for the vendor.

N = Do not send return or return authorization information to a drop ship application for the vendor.

From the Send returns to CDC field in the Vendor Extended table.

Discount

The Discount element and its attributes repeat for each discount defined for the vendor in the Vendor Discount table. You can define up to 3 discounts for a vendor in the Vendor Discount table.

discount_seq_nbr

numeric

3

The sequence number assigned to the vendor discount.

From the VDS seq # field in the Vendor Discount table.

Note: If you define a percent or unit amount for one vendor discount and do not define a percent or unit amount for the other vendor discounts, the system still displays the discount_seq_nbr for the other discounts.

discount_percent

numeric

5.2

The percentage the system applies against the unit cost of an item on the purchase order.

From the VDS discount pct field in the Vendor Discount table.

discount_unit_amount

numeric

9.4

The dollar amount the system subtracts from the unit cost of an item on the purchase order.

From the VDS unit discount field in the Vendor Discount table.

Contact

The Contact element and its attributes repeat for each vendor contact defined for the vendor in the Vendor Contact table.

There are 2 types of vendor contacts:

• contacts you define at the Work with Vendor Contacts screen in Work with Vendors (WVEN).

• contacts you define at the Work with Vendor FOB Address screen in Work with Vendors (WVEN).

contact_type

alpha

2

Indicates the type of contact.

A = This is a vendor contact address.

F = This is a FOB (freight on board) address.

From the VCT contact type field in the Vendor Contact table.

Note: If you delete all vendor contact addresses, the system continues to display any FOB addresses. Likewise, if you delete all FOB addresses, the system continues to display any vendor contact address.

contact_sequence_nbr

numeric

3

The sequence number assigned to the vendor contact.

From the VCT sequence # field in the Vendor Contact table.

contact_title

alpha

30

The contact’s title within the company.

From the VCT contact title field in the Vendor Contact table.

contact_name

alpha

30

The name of the vendor contact.

From the VCT contact name field in the Vendor Contact table.

contact_address_1

alpha

32

The vendor contact’s street address.

From the VCT address line 1 field in the Vendor Contact table.

contact_address_2

alpha

32

The vendor contact’s second address line.

From the VCT address line 2 field in the Vendor Contact table.

contact_address_3

alpha

32

The vendor contact’s third address line.

From the VCT address line 3 field in the Vendor Contact table.

contact_city

alpha

25

The city of the vendor contact’s address.

From the VCT city field in the Vendor Contact table.

contact_country

alpha

3

The country of the vendor contact’s address.

From the VCT country field in the Vendor Contact table.

contact_country_

name

alpha

30

The name of the country on the vendor contact’s address.

From the Description field in the Country table.

contact_state

alpha

2

The state code of the vendor contact’s address.

From the VCT state field in the Vendor Contact table.

contact_state_name

alpha

25

The name of the state on the vendor contact’s address.

From the Description field in the State table.

contact_zip

alpha

10

The postal code of the vendor contact’s address.

From the VCT zip field in the Vendor Contact table.

contact_email_

address

alpha

50

The vendor contact’s email address.

From the VCT internet address field in the Vendor Contact table.

contact_telephone_

number

alpha

14

The vendor contact’s telephone number.

From the VCT telephone number field in the Vendor Contact table.

contact_telephone_

extension

alpha

4

The telephone number extension.

From the VCT telephone extension field in the Vendor Contact table.

contact_fax_

number

alpha

14

The vendor contact’s fax number.

From the VCT fax number field in the Vendor Contact table.

contact_fax_

extension

alpha

4

The fax number extension.

From the VCT fax extension field in the Vendor Contact table.

contact_address_type

alpha

1

The type of address defined for the vendor contact.

From the VCT address type field in the Vendor Contact table.

contact_sort_sequence

numeric

3

The sort sequence number assigned to the vendor contact.

From the VCT sort sequence field in the Vendor Contact table.

contact_fob_freight_terms

alpha

10

The freight terms defined for this vendor address.

This field displays only if the Contact_type is F (FOB).

From the VCT FOB freight terms field in the Vendor Contact table.

contact_fob_type

alpha

1

Identifies the FOB address as an origin or destination type.

O (Origin) = The FOB address specifies the location from which merchandise is being shipped.

D (Destination) = The FOB address specifies the location to which merchandise is being shipped.

This field displays only if the Contact_type is F (FOB).

From the VCT FOB type field in the Vendor Contact table.

Note

The Note element and its attributes repeat for each vendor note defined for the vendor in the Vendor Notes table.

note_seq_nbr

numeric

3

The sequence number assigned to the vendor note.

From the Seq # field in the Vendor Notes table.

note_line

alpha

60

The note defined for the vendor.

From the Note field in the Vendor Notes table.

note_print_flag

alpha

1

Indicates whether the vendor note prints on the purchase order.

From the Print field in the Vendor Notes table.

note_entry_date

numeric

8

The date the vendor note was entered, in MMDDYYYY format.

From the Entry date field in the Vendor Notes table.

note_user

alpha

10

The user ID of the user who entered the vendor note.

From the User field in the Vendor Notes table.

UserField

The UserField element and its attributes repeat for each user field defined for the vendor in the Vendor User Field table.

user_seq_nbr

numeric

3

The sequence number assigned to the vendor user field.

From the Seq# field in the Vendor User Field table.

user_date

numeric

8

The date defined for the vendor user field, in MMDDYYYY format.

From the Date field in the Vendor User Field table.

user_text

alpha

30

The text defined for the vendor user field.

From the Text field in the Vendor User Field table.

user_number

numeric

16

The number defined for the vendor user field.

From the Number field in the Vendor User Field table.

user_display_sequence

numeric

3

The sequence number assigned to the vendor user field, controlling its placement on the screen.

From the Display sequence field in the Vendor User Field table.

user_file_code

alpha

3

The code representing the table to which the user-defined field is linked. For vendor user fields, the file code is VND.

From the VND UDF file code field in the Vendor User Field table.

user_field_label

alpha

15

The field label that appears on a screen for the vendor user field.

From the Field label field in the User Defined Field Detail table.

user_field_type

alpha

1

A code that identifies the type of field.

D = Date field.

N = Number field.

T = Text field.

From the Field type field in the User Defined Field Detail table.

user_field_usage

alpha

1

A code that identifies whether you are collecting the field information for the user-defined field.

I (Input): you can enter information in this field.

O (output): you cannot enter information in this field.

From the Field usage field in the User Defined Field Detail table.

Vendor Download Message: Sample XML

A sample of the Vendor Download XML Message (CWVendorOut) is presented below.

<Message source="RDC" target="IDC" type="CWVENDOROUT">

<Vendor transaction_type="C" company="5" vendor_nbr="11" type="V" name="1A VENDOR NAME 11" address_1="1A MAIN ST" address_2="1A SECOND ADDRESS LINE" address_3="1A THIRD ADDRESS LINE" ship_to_city="NATICK" country="USA" country_name="UNITED STATES" state="MA" state_name="MASSACHUSSETS" zip="01760" email_address="1a@vendor.com" remit_name="1A REMIT TO NAME" remit_address_1="1A REMIT ST" remit_address_2="1A REMIT 2ND ADDRESS LINE" remit_address_3="1A REMIT 3RD ADDRESS LINE" remit_city="FRAMINGHAM" remit_country="USA" remit_country_name="UNITED STATES" remit_state="MA" remit_state_name="MASSACHUSSETS" remit_zip="01701" remit_email_address="1a@remit.com" contact_name="MR. JOHN SMITH" drop_ship_pick="P" edi_file="NN" print_po="Y" print_checks="Y" factor="N" rating="500" telephone_number="5085550104" extension="1234" fax_number="5085550105" surcharge_pct="1000" discount_pct="500" fax_flag="N" edi_flag="N" price_currency_type="V" terms_code="30" terms_description="NET 30 DAYS" terms_short_description="N30" terms_type="1" terms_category="B" terms_gross_due_days="30" currency_code="USD" currency_description="UNITED STATES DOLLARS" ship_via_code="11" ship_via_description="1A PO SHIP VIA DESCRIPTION" ship_via_lead_days="6" disc_calc_method="T" drop_ship_batch_size="10" send_rtn_to_collaborate="N">

<Discounts>

<Discount discount_seq_nbr="1" discount_pct="500" />

<Discount discount_seq_nbr="2" discount_unit_amount="20000" />

<Discount discount_seq_nbr="3" discount_pct="300" />

</Discounts>

<Contacts>

<Contact contact_type="A" contact_sequence_nbr="1" contact_title="WAREHOUSE DISTRIBUTOR" contact_name="BERNADETTE MIRANDA" contact_address_1="1A MAIN ST" contact_address_2="1A SECOND ADDRESS LINE" contact_address_3="1A THIRD ADDRESS LINE" contact_city="NATICK" contact_country="USA" contact_country_name="UNITED STATES" contact_state="MA" contact_state_name="MASSACHUSSETS" contact_zip="01760" contact_email_address="bmiranda@example.com" contact_telephone_number="5085550106" contact_fax_number="5085550107" />

</Contacts>

<Notes>

<Note note_seq_nbr="1" note_line="Double wrap fragile items." note_print_flag="N" note_entry_date="10182006" note_user="KBROWN" />

</Notes>

<UserFields>

<UserField user_seq_nbr="1" user_date="10182006" user_display_sequence="1" user_file_code="VND" user_field_label="Date" user_field_type="D" user_field_usage="O" />

<UserField user_seq_nbr="2" user_display_sequence="2" user_file_code="VND" user_field_label="Text" user_field_type="T" user_field_usage="O" />

<UserField user_seq_nbr="3" user_display_sequence="3" user_file_code="VND" user_field_label="Number" user_field_type="N" user_field_usage="O" />

</UserFields>

</Vendor>

</Message>

ST01_04 OMSCS 19.0 December 2019 OHC
