Configuration Roadmap

This chapter provides an illustrative example of configuring the ACORD XML connector.

The Siebel Connector for ACORD XML is made up of four pre-built business services:

FINS ACORD XML Transaction Manager
FINS ACORD XML Data Transformation Engine
FINS ACORD XML Converter
FINS ACORD XML Dispatcher

The Siebel Connector for ACORD XML can be configured to support several types of IFX Business Object Model packages. The following illustrates the main steps in configuring the Siebel Connector for ACORD XML, which are as follows:.

FINS ACORD Wizard. Use FINS IAA Wizard to build an integration object, then external/internal/envelope integration objects, then build a data transformation map, then map external integration object to an internal integration object, then configure the workflow process, then instantiation.
Data Mapper. Use to build a data transformation map, then map external integration object to an internal integration object, then configure the workflow process, then instantiation.
Workflow Manager. Use to configure the workflow process, then instantiation.

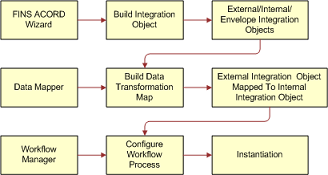

Main Steps to Configure the Siebel Connector for ACORD XML. This image is described in surrounding text.

This chapter presents the scenario of adding a new Auto Policy through a Siebel front-end application for outbound communication and receiving a request to add an auto policy during inbound communication. This operation corresponds to <PersAutoPolicyAddRq> and <PersAutoPolicyAddRs> commands in ACORD XML. The example uses the MQSeries Server Transport mechanism, though there is no specific transport mechanism required for Siebel Connector for ACORD XML.

The following checklist shows the high-level procedure for configuring your system to use the Siebel Connector for ACORD XML.

Checklist
	Create the integration objects in Siebel Tools. For details, see Creating Integration Objects in Siebel Tools.
	Configure the ACORD XML business services in Siebel Tools. For details, see Configuring the Connector Components.
	Configure the transformation maps in Siebel Client. For details, see Configuring the Data Transformation Maps.
	For outbound communication, configure the outbound Siebel Connector for ACORD XML for sending an ACORD XML message. For details, see Configuring an Outbound Siebel Connector for ACORD XML.
	For inbound communication, configure the inbound Siebel Connector for ACORD XML for receiving an ACORD XML message. For details, see Configuring an Inbound Siebel Connector for ACORD XML.
	For outbound communication, configure events to trigger the workflow process in real time according to user input using Runtime Event Manager. For details, see Configuring Runtime Events.
	For inbound communication, configure server tasks to dispatch the message to the workflow. For details, see Configuring Server Tasks.

Note: When generating integration objects, be certain to use the appropriate version of the ACORD DTD, version 1.0.0. It is available from www.acord.com.

Creating Integration Objects in Siebel Tools

Integration objects define the intermediate format of the data so that it can be used by the connector components to translate between Siebel data formats and ACORD XML data formats.

You use the FINS ACORD Wizard to create the envelope, internal, and external integration objects, as well as the dispatcher map.

The following table shows the pre-setup user properties for the FINS ACORD Wizard.

Name	Value	Comments
DispatcherMapName	ACORDDispMap	The Dispatcher Map Name. The wizard will use this map to update the key and value.
HasUIControl	Y	Internal use.
Integration Object Wizard	Y	Internal use.
Integration Object Base Object Type	Siebel Business Object	Internal use.
Operation KeyWord Match:0	Add/SAUpsert	Internal use. This means that when the wizard generates an external integration object for an Add message, it defines the operation in the transaction manager as SAUpsert. The operation name will be recorded in the dispatcher map.
Operation KeyWord Match:1	Inq/SAQuery	Internal use. This means that when the wizard generates an external integration object for an Inq message, it defines the operation in the transaction manager as SAUpsert. The operation name will be recorded in the dispatcher map.
Default Envelope Tag	ACORD	Value for Envelope Tag.

Note: You can define a new Operation KeyWord Match:X if you need to. For example, if the ACORD DTD in the future supports the delete operation, you can define Operation KeyWord Match:2 as Delete/SADelete.

Locking the Project and Selecting the DTD File

Whenever you create integration objects, you must lock the project you are working with and associate the appropriate DTD file with the object.

To lock the project and select the DTD file

Start Siebel Tools.
Lock the appropriate project.
The FINS ACORD XML Wizard requires a locked project.
From the application-level menu, choose File, and then New Object.
The New Object Wizards dialog box appears.

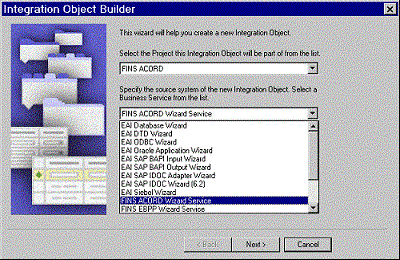

Select the EAI tab and double-click Integration Object.
The Integration Object Builder wizard appears.
Fill in the two fields.
1. Select the project you have locked.
2. Select FINS ACORD Wizard Service from the Business Service list.
Click Next.
You may receive a warning about a missing dispatcher map.
This warning offers to write to a temporary dispatcher map, which you can merge with the connector dispatcher map later on.
Choose the DTD file you want to use, and then click Next.
If you are using the file received from the ACORD Web site, the filename is ACORD_PC_XML_V1_0_0.dtd. This filename indicates that this is version 1.00 of ACORD DTD.
It takes some time for the wizard to parse the DTD file and to display the next page.

Creating an Envelope Integration Object

An envelope integration object provides the envelope and header information needed by the ACORD XML hierarchy.

The following procedure shows how to create an envelope integration object that works with external and internal integration objects. Note that the wizard provides the option of creating an envelope integration object that stands alone, which can be used for authentication.

The example provides the steps for creating a user-defined envelope, which allows you to create a customized authentication mechanism. You can also create a default envelope from the wizard. The default envelope provides the user name, password, and session key authentication mechanism that conforms to the ACORD standard.

To create an envelope integration object

Lock the project and select the DTD file for the object.
As described in the previous section, you select the ACORD_PC_XML_V1_0_0.dtd file.
After the wizard parses the DTD file, it displays the next page so that you can create an envelope integration object.

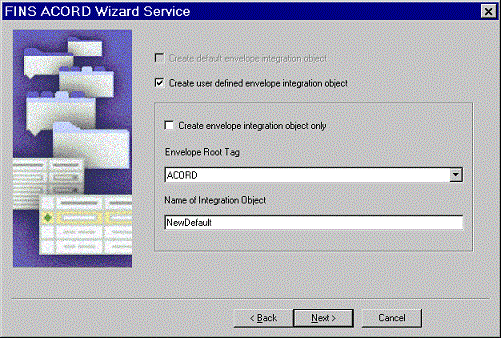

For this example, select the Create user defined envelope check box, fill in the name of the integration object, and click Next.

If you wanted to create a standalone envelope, you would select the Create envelope integration object only check box. A standalone envelope integration object can be used by any integration objects later on.
Click Next.

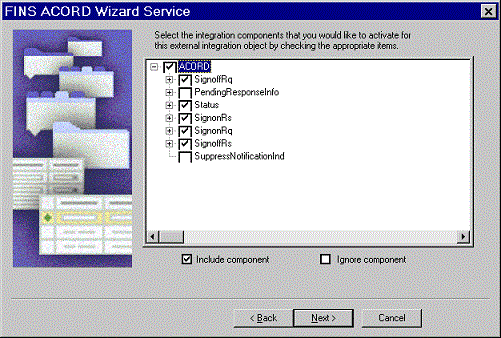

The wizard displays a visual selection hierarchy so that you can select the elements you want to include in the header.
These elements include <Signon> and <Signoff> elements for both request and response.
For the example, deselect PendingResponseInfo and SuppressNotification.
Verify that the required check boxes are selected, and click Next.
The wizard displays the first screen in the sequence to create an external integration object.

Creating External Integration Objects

An external integration object establishes the hierarchy for an ACORD XML message. Each type of message under a service needs its own integration object that defines the body portion of the XML document.

When you create an external integration object, you create a pair of such objects, one for the request portion of the cycle and one for the response portion of the cycle.

Each external integration object is paired with an internal integration object when you configure the DTE map.

To create an external integration object

Lock the project and select the DTD file for the object.
You select the ACORD_PC_XML_V1_0_0.dtd file.
Create a default or user-defined envelope integration object.
The steps are described in the preceding section.
Choose a Request Service and Response Service pair.

For an external integration object, you need to specify a request service and a response service, for example <InsuranceSvcRq> and <InsuranceSvcRs>. These are the service aggregate elements.

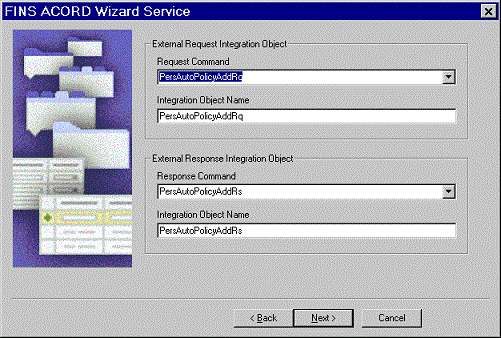

Click Next, and then choose the Request Command and Response Command you want to use.

This screen uses Request Command to identify the ACORD request message. The request message you select is automatically paired with an appropriate response message. For this example, you choose <PersAutoPolicyAddRq>; it is automatically paired with <PersAutoPolicyAddRs>.

Note: Make a note of the integration object names. You will need to know the names when you configure the DTE map.
You can change the Integration Object Name for the request and response integration objects for administrative convenience. You should consider establishing a set of naming conventions to make groups of objects easy to recognize. This example uses the default names.
Click Next to display the integration components screen in which you select the message elements to include.
You will select message elements for the request integration object in this screen, and you will select the message elements for the response integration object in the next screen.

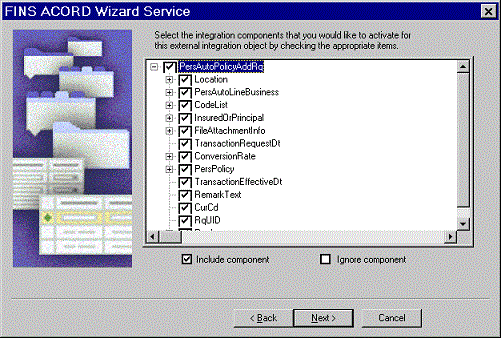

Click the plus symbol (+) to display the message elements.

This screen displays a visual hierarchy of the message structure. It provides all the available aggregates and elements for the message. The screen starts with all of these selected (included).
Choose the ACORD message components that you want to activate for this integration object.

Click to select each item. Notice that if you deselect the parent, all the child items are deselected. Reselecting the parent does not reselect the child items, so you can select just a subset of child items.
Click Next to display the second integration components screen, and choose the ACORD message components you want to activate for the response integration object.
Click Next to display the Select Internal Integration Object screen.

Creating Internal Integration Objects

An internal integration object creates a structure that matches the data structure of a Siebel business object.

You can choose an already-created internal integration object, if one has been created. Siebel integration objects are interfaces for outside systems to interact with internal Siebel data.

This example uses the FINS ACORD Wizard to create a new internal integration object, as shown in the following procedure.

To create an internal integration object

Lock the project and select the DTD file for the object.
You select the ACORD_PC_XML_V1_0_0.dtd file.
Create an envelope integration object and a pair of external integration objects.
The steps are described in the preceding sections.

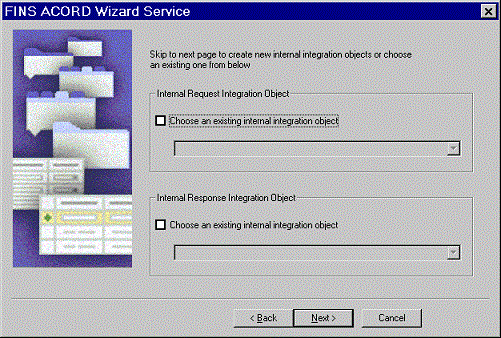

In the Select Internal Integration Object screen, do not select either check box, and click Next to display the New Integration Object screen.

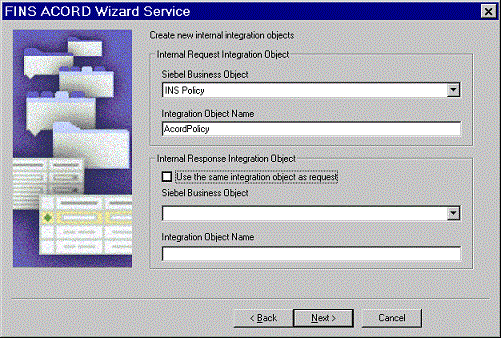

In the Internal Request Integration Object area, choose the business object that contains the information that the connector will exchange, and enter the name of the integration object.
For the Internal Response Integration Object, select the Use the same integration object as request check box.
The entry boxes are not available for selection.

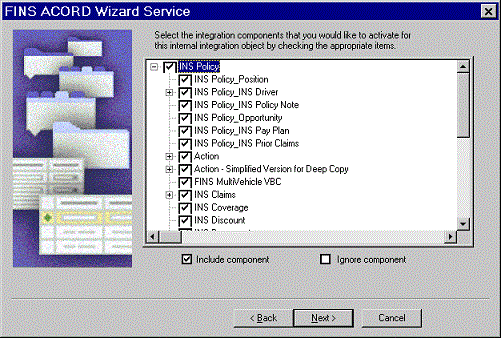

Click Next to display the integration components available from the business object you selected on the previous screen.

This screen displays a visual hierarchy of the business object structure. It provides all the available aggregates and elements for the message.
Deselect the elements you do not want to include, and then click Next.
The screen displays a warning telling you that it may take some time to create the integration objects.
Click Yes to create the integration objects.
After the wizard creates the integration objects, it shows the objects that have been created.
Click Finish.
The wizard guides you to the Integration Objects view, which displays a list of integration objects that includes the ones you have just created.

Viewing the Dispatcher Map

When it creates the paired external and internal integration objects, the FINS ACORD Wizard creates a pair of new or updated entries in the dispatcher map.

The FINS ACORD XML dispatcher map is an integration object that contains the rule sets used by the FINS ACORD XML Dispatcher. The default ACORD dispatcher map is ACORDDispMap. If you have the correct project locked, the wizard updates the user properties of the default ACORD dispatcher map. Otherwise, the wizard creates a new ACORD dispatcher map with the following name format and updates its user properties:

ACORDDispMap_<currently locked project name>

To view the Dispatcher Map user properties

From Siebel Tools, choose Object Explorer, and then Integration Object.
Query for the dispatcher map name, for example ACORDDispMap.

Navigate to the user properties of the dispatcher map to see its user properties.

The following table shows the rule sets created by the wizard for the Add Policy scenario.

Name	Value
ACORD/ InsuranceSvcRq/ PersAutoPolicyAddRq	ACORD/InsuranceSvcRq/ PersAutoPolicyAddRq;PersAutoPolicyAddRq_ERqIRqMapIn;PersAutoPolicy AddRq_IRsERsMapOut;PersAutoPolicyAddRq;AcordPolicy;SAUpsert
ACORD/ InsuranceSvcRs/ PersAutoPolicyAddRs	ACORD/InsuranceSvcRs/ PersAutoPolicyAddRs;PersAutoPolicyAddRs_ERsIRsMapIn;PersAutoPolicy AddRs_IRqERqMapOut;PersAutoPolicyAddRs;AcordPolicy;SAUpsert

Name

Value

ACORD/
InsuranceSvcRq/
PersAutoPolicyAddRq

ACORD/InsuranceSvcRq/
PersAutoPolicyAddRq;PersAutoPolicyAddRq_ERqIRqMapIn;PersAutoPolicy
AddRq_IRsERsMapOut;PersAutoPolicyAddRq;AcordPolicy;SAUpsert

ACORD/
InsuranceSvcRs/
PersAutoPolicyAddRs

ACORD/InsuranceSvcRs/
PersAutoPolicyAddRs;PersAutoPolicyAddRs_ERsIRsMapIn;PersAutoPolicy
AddRs_IRqERqMapOut;PersAutoPolicyAddRs;AcordPolicy;SAUpsert

The name of the user property represents the rule the dispatcher tries to match and the value represents the value the dispatcher needs to insert. For example, the name:

ACORD/InsuranceSvcRq/PersAutoPolicyAddRq

is the path the dispatcher uses to locate the message received, and if it finds the match then it uses the information in the value column,

ACORD/InsuranceSvcRq/PersAutoPolicyAddRq;PersAutoPolicyAddRq_ERqIRqMapIn;
PersAutoPolicyAddRq_IRsERsMapOut;PersAutoPolicyAddRq;AcordPolicy;SAUpsert

to determine the action it needs to take.

The following is a description of the meaning of each of the parts of the information in the value column.

Each value is made up of six tokens that are separated by semicolons (;), and each token represents specific information.

The first token is the location to insert the remaining five tokens at runtime. For example, ACORD/InsuranceSvcRq/PersAutoPolicyAddRq.
The second token is the name of the data transformation map for mapping the external request integration object indicated by ERq to the internal request integration object indicated by IRq. For example, PersAutoPolicyAddRq_ERqIRqMapIn.
The third token is the name of the data transformation map for mapping the internal response integration object IRs to the external response integration object ERs. For example, PersAutoPolicyAddRq_IRsERsMapOut.
The fourth token is the external request integration object. For example, PersAutoPolicyAddRq.
The fifth token is the internal response integration object. For example, AcordPolicy.
The sixth token is the operation corresponding to the <PersAutoPolicyAddRq> message, for example SAUpsert. This token will be used as the key to operation for FINS ACORD XML Transaction Manager.

The data transformation map names must be used when configuring the transformation maps. For details, see Configuring the Data Transformation Maps. The map names have to be unique and you need to modify the dispatcher map entries to reflect the new name. The same principle applies to all the tokens.

Note: Deliver the changes to the integration branch.

Configuring the Connector Components

Siebel Connector for ACORD XML provides four prebuilt business services that you can configure for your specific use:

FINS ACORD XML Transaction Manager
FINS ACORD XML Data Transformation Engine
FINS ACORD XML Converter
FINS ACORD XML Dispatcher

Each business service has its own user properties. The values of these user properties are decided by configuration time. However, you can also override those values in the workflow by entering a run-time value. The meanings of the user properties are described in Siebel Connector for ACORD XML This section shows the configuration of the user properties for each of these business services.

FINS ACORD XML Transaction Manager

Several prebuilt operations have been defined in the transaction manager. These operations are sufficient to support most needs in Oracle’s Siebel Connector for ACORD XML. It is recommended that you not change these values unless you want to add new operations.

Operation Name	Value
SAQuery	EAI Siebel Adapter/Query/
SARowIdQuery	EAI Siebel Adapter/Query/PrimaryRowId;!SiebelMessage;
SASynchronize	EAI Siebel Adapter/Synchronize/
SAUpsert	EAI Siebel Adapter/Upsert/
SAUpsert_ROLL_BACK	EAI Siebel Adapter/Delete/RollbackOnSame;
SAOperation_FIND	FINS Industry BC Facility- Service/HierarchySearchSpec/!SiebelMessage;IntObjectName=>SiebelFINSRespIntObjName;

The following are examples of how the values in the table are interpreted:

SAQuery means the operation will execute the EAI Siebel Adapter’s Query method.
SAUpsert means the operation will execute the EAI Siebel Adapter’s Upsert method.

The basic format for the value entry is as follows:

Service/Method/Argument;Argument;
/Method/Argument;Argument;
Service, method, and argument are separated by a slash (/).
Each argument ends with a semicolon (;).
The default Service name is EAI Siebel Adapter.
The default argument name is SiebelMessage.

FINS ACORD XML Data Transformation Engine

You do not have to provide any new values in the pre-built business service.

FINS ACORD XML Converter

Please set the user property values according to the following table. These values will appear in the pre-header section of an ACORD message.

Name	Value
XMLEnvIntObjectName	NewDefaultEnv (Just created by the Wizard)
EscapeNames	TRUE
PI_Parameter:version	v1.0.0 (ACORD version)
PI_Parameter:newfileuid	(default empty)
PI_Parameter:oldfileuid	(default empty)
PI_Type	ACORD

FINS ACORD XML Dispatcher

Two user properties need to be set to new values for your specific case, as listed in the following table. In the dispatcher user properties, fill in the names of the dispatcher map and envelope integration objects that are created by FINS ACORD Wizard.

Name	Value
DispatcherMapName	ACORDDispMap
XMLEnvIntObjectName	NewDefaultEnv
XMLFaultObject_0	//IOI/MsgStatus/MsgErrorCd

Configuring the Data Transformation Maps

Configuring the integration objects associates the fields in an internal integration object with the message elements in an external integration object. The result is the creation of the DTE map that will be used by the data transformation engine.

All entries created by the wizard are stored in the Integration Object User Properties of the Dispatcher Map.

In the example, there are four maps that need to be configured to have a complete outbound/inbound transaction route available. Each one can be found in the user properties entry in the ACORDDispMap dispatcher map integration object.

The integration object for the server entry is ACORD/InsuranceSvcRq/PersAutoPolicyAddRq, and it has two maps, as follows:

PersAutoPolicyAddRq_ErqIRqMapIn (server receiving an inbound request)
PersAutoPolicyAddRq_IrsERsMapOut (server sending an inbound response)

The integration object for the client is ACORD/InsuranceSvcRs/PersAutoPolicyAddRs, and it has two maps, as follows:

PersAutoPolicyAddRs_IRqERqMapOut (client sending an outbound request)
PersAutoPolicyAddRs_ErsIRsMapIn (client receiving an outbound response)

If you wish, you can change the map name in the Dispatcher Map list, then use the new name for the DTE map.

To configure the DTE map

Start Siebel Financial Services.
Navigate to the Administration - Integration screen, then Data Map Editor, and then Integration Object Map view.
In the Integrated Object Map applet, create a new map.
- Name. This name must be the same as the DTE map name created by the wizard and stored in the Dispatcher Map list.
Select the Internal Integration Object and the External Integration Object.
These objects have been created during the process of creating the integration objects with the wizard. Keep the following definitions in mind:
- Source Object. For an message that will be sent out, the source object is the internal integration object; for a message that will be received, the source object is the external integration object.
- Target Object. For a message that will be sent out, the target object is the external integration object; for a message that will be received, the target object is the internal integration object.
Map the source components and the target components.
Map fields to fields.
For detailed information, see the following Siebel EAI documents: the chapter on creating and using dispatch rules in Siebel Financial Services Enterprise Application Integration Guide, and the chapter on data mapping and the data mapper in Business Processes and Rules: Siebel Enterprise Application Integration.

Configuring the Workflow Process

The example in this section shows how to create an outbound workflow and an inbound workflow that handle an ACORD XML message.

Configuring an Outbound Siebel Connector for ACORD XML

The following procedure shows how to construct a workflow to handle an outbound message.

To create an outbound connector

Start Siebel Financial Services.
Navigate to the Administration - Business Process screen, then Workflow Processes, and then Workflow Processes view.
Create a new record in the Workflow Processes view.
The keyboard shortcut is CTRL+N.
Give the workflow a name.
The name must be unique within the project. The other values are optional, so for this example, they remain blank.
In the example, the name is ACORD Add Auto Policy Outbound Workflow. The complete workflow is included in Sample Workflows.
Click the Process Designer tab.
The Process Designer provides a blank working space onto which you will move the step symbols and connectors that create the workflow.
For complete details about using this working space, and information about workflows in general, see Siebel Business Process Framework: Workflow Guide.
Move Start, Stop, and Business Service steps onto the work area, and name them appropriately.
Use connector arrows to connect the Start and Business Service steps.
Continue until you have created a workflow with the required components. The following image shows the structure of the finished workflow: FINS ACORD XML Transaction Manager, FINS ACORD XML DTE, FINS ACORD XML Converter, XML Hierarchy Converter.

Adding Process Property Values

You need to create Process Property values for the workflow, to be used in later configurations.

To create process properties

Click the Process Properties tab.
Enter the values shown in the following table.

Name	Data Type	Default String
ACORD Client Application Name	String	Siebel Financial Services
ACORD Client Application Operation	String	Oracle
ACORD Client Application Version	String	8.0
ACORD DOCTYPE	String
ACORD DispMap Integration Object Name	String	ACORDDispMap
ACORD Message Full Name	String	ACORD/InsuranceSvcRs/PersAutoPolicyAddRs
ACORD Service Provider Name	String	Siebel Partner
ACORD Signoff	String	FALSE
Error Code	String
Error Message	String
Object Id	String
PropSet Converter Out	Hierarchy
PropSet DTE Out	Hierarchy
PropSet TransMgr Out	Hierarchy
SiebelFINSOperation Out	String	SARowIdQuery
XML Document	String
initsignon	String	initsignon
sessionsignon	String	sessionsignon
signoffRq	String	signoffRq

Configuring the FINS ACORD XML Transaction Manager

Now that the workflow structure exists, you can configure the components. The first outbound component is the transaction manager.

To configure the transaction manager

Name the transaction manager appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the FINS ACORD XML Transaction Manager.
Choose the method.
The example uses the Execute Outbound method because the data is being sent out from the Siebel data source.

Establish the input and output arguments.

As for all Siebel business services, create a new record (CTRL+N) for a new argument. Select from the available input arguments. Add all required arguments first, then go on to any optional arguments. See Siebel Connector for ACORD XML for input and output specifications.

The following are the input argument settings for the example transaction manager configuration.

Input Arguments	Type	Property Name	Property Data Type
DispatcherMapName	Process Property	ACORD DispMap Integration Object Name	String
IXMLMapPath	Process Property	ACORD Message Full Name	String
PrimaryRowId	Process Property	Object Id	String
SiebelFINSOperationOut	Process Property	SiebelFINSOperationOut	String

The following are the output argument settings for the example transaction manager configuration.

Property Name	Type	Value	Output Argument
PropSet TransMgr Out	Output Argument		XML Hierarchy

Configuring the FINS ACORD XML Data Transformation Engine

The second component is the data transformation engine (DTE).

To configure the DTE

Name the DTE appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the FINS ACORD XML DTE.
Choose the method.
The example uses the Transform to External Hierarchy method because the data is moving from a Siebel internal system to an external system.

Set the input and output arguments.

These arguments include the DTE map name, created during the configuration of the internal and external integration objects.

The following are the input argument settings for the example DTE configuration.

Input Arguments	Type	Value	Property Name	Property Data Type
XML Property Set	Process Property		PropSet TransMgr Out	Hierarchy

The following are the output argument settings for the example DTE configuration.

Property Name	Type	Value	Output Argument
PropSet DTE Out	Output Argument		XML Property Set

Configuring the FINS ACORD XML Converter

The third component is the converter.

To configure the converter

Name the converter appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the FINS ACORD XML Converter.
Choose the method.
The example uses PropSetToXMLPropSet because the converter is converting a property set from the DTE into a standard XML property set.

Set the input and output arguments.

The following are the input argument settings for the example converter configuration.

Input Argument	Type	Property Name	Property Data Type
Client Application Name	Process Property	ACORD Client Application Name	String
Client Application Operation	Process Property	ACORD Client Application Operation	String
Client Application Version	Process Property	ACORD Client Application Version	String
Is Signoff	Process Property	ACORD Signoff	String
Service Provider Name	Process Property	ACORD Service Provider Name	String
XML Property Set	Process Property	PropSet DTE Out	Hierarchy
initsignon	Process Property	initsignon	String
sessionsignon	Process Property	sessionsignon	String
signoffRq	Process Property	signoffRq	String

The following are the output argument settings for the example converter configuration.

Property Name	Type	Value	Output Argument
PropSet Converter Out	Output Argument		XML Property Set

Configuring an XML Hierarchy Converter

The fourth component is a hierarchy converter. For information about Siebel hierarchy converters, see XML Reference: Siebel Enterprise Application Integration.

To configure an XML hierarchy converter

Name the hierarchy converter appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the XML Hierarchy Converter.
Choose the method.
This example uses the XML Hierarchy to XML Document method because, for an outgoing message, the final conversion is from an XML hierarchy to an XML document that can be accepted by any XML-compliant converter at the external location.

Set the input and output arguments, XML Hierarchy name, and XML document name.

The following are the input argument settings for the example hierarchy converter configuration.

Input Argument	Type	Value	Property Name	Property Data Type
XML Header Text	Process Property		ACORD DOCTYPE	String
XML Hierarchy	Process Property		PropSet Converter Out	Hierarchy

The following are the output argument settings for the example hierarchy converter configuration.

Property Name	Type	Value	Output Argument
XML Document	Output Argument		XML Document

Configuring a Transport Mechanism (Optional)

The fifth component is a transport mechanism. Although not shown on the diagram, this example uses the MQSeries transport. For information about transport mechanisms supported by Oracle, see Transports and Interfaces: Siebel Enterprise Application Integration.

To configure an MQSeries transport

Name the transport component appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the EAI MQSeries Server Transport.
Choose the method.
This example uses the Send method.

Set the input and output arguments, including the Physical Queue Name, the Queue Manager Name, and the Message Text.

The following are the input argument settings for the example MQSeries transport configuration.

Input Argument	Type	Value	Property Name	Property Data Type
Message Text	Process Property		XML Document	String
Physical Queue Name	Literal	TO_ACORD_QUEUE
Queue Manager Name	Literal	SHAN

This step completes the outbound workflow. The outbound ACORD XML connector can be used as the basis for any workflow that is used to send an outbound request message.

Configuring an Inbound Siebel Connector for ACORD XML

For an inbound message, one that originates in an external application, the following shows the structure of a workflow that receives a request and sends back a response. The example workflow is the ACORD Server Policy Package Workflow included in the sample workflows.

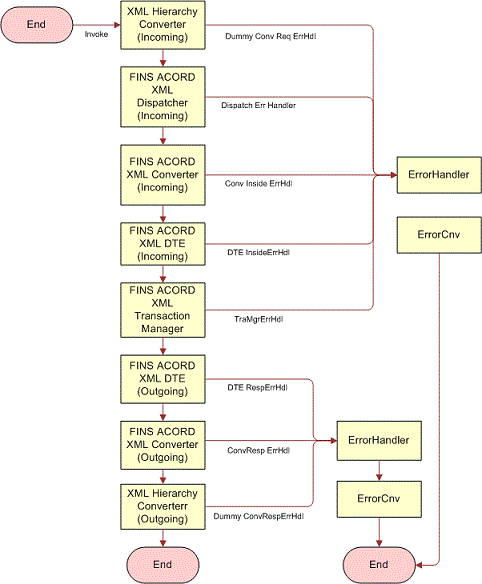

ACORD Server Policy Package Workflow. This image is described in surrounding text.

The steps in this workflow are as follows:

Convert XML Hierarchy (Dummy Conv Req ErrHdl)
- FINS ACORD XML Dispatcher (Incoming). (Dispatch Err Handler)
- FINS ACORD XML Converter (Incoming) (Conv Inside ErrHdl)
- FINS ACORD XML DTE (Incoming) (DTE InsideErrHdl)
- FINS ACORD XML Transaction Manager (TraMgrErrHdl)
FINS ACORD XML DTE (Outgoing) (DTE RespErrHdl)
- FINS ACORD XML Converter (Outgoing) (ConvResp ErrHdl)
- XML Hierarchy Converter (Outgoing) Dummy ConvRespErrHdl
ErrorHandler
ErrorCnv

Note: The error handling conditions and business services (for example ErrorHandler and ErrorCnv) on the side of the diagram are necessary to handle any rare processing errors. The sample workflow provides information about how they are configured.

Adding Process Property Values

You need to create Process Property values for the workflow, to be used in later configurations.

To create process properties

Click the Process Properties tab.

Enter the values shown in the following image.

Name	Data Type	Default String
<Value>	String	<Value>
ACORD Client Application Name	String	Siebel Financial Services
ACORD Client Application Operation	String	Oracle
ACORD Client Application Version	String	8.0
ACORD DOCTYPE	String
ACORD DispMap Integration Object Name	String	ACORDDispMap
ACORD Envelope Integration Object Name	String	Newdefault
ACORD Service Provider Name	String	Siebel Partner
ACORD Signoff	String	FALSE
Error Code	String
Error Message	String
IsClient	String	FALSE
Object Id	String
PropSet Converter Out (Incoming)	Hierarchy
PropSet Converter Out (Outgoing)	Hierarchy
PropSet DTE Out (Incoming)	Hierarchy
PropSet DTE Out (Outgoing)	Hierarchy
PropSet Dispatcher Out (Incoming)	Hierarchy
PropSet TransMgr Out (Outgoing)	Hierarchy
PropSet XML Converter Out (Incoming)	Hierarchy
SiebelFINSOperation	String
SignonRsEcho	Hierarchy
XML Document Response	String

Configuring an XML Hierarchy Converter (Incoming)

The first connector component in the inbound sequence is a hierarchy converter. For information about Siebel hierarchy converters, see XML Reference: Siebel Enterprise Application Integration.

To configure an XML hierarchy converter

Name the hierarchy converter appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the XML Hierarchy Converter.
Choose the method.
This example uses the XML Document to XML Hierarchy method because, for an incoming message, the conversion is from an XML document to an XML hierarchy that can be used by the FINS ACORD XML Dispatcher.

Set the input and output arguments, XML Hierarchy name, and XML document name.

The following are the input argument settings for the example hierarchy converter incoming configuration.

Input Argument	Type	Value	Property Name	Property Data Type
XML Document	Process Property		<Value>	String

The following are the output argument settings for the example hierarchy converter incoming configuration.

Property Name	Type	Value	Output Argument
PropSet XML Converter Out (Incoming)	Output Argument		XML Hierarchy

Configuring the FINS ACORD XML Dispatcher (Incoming)

The second connector component is the dispatcher.

To configure the dispatcher

Name the dispatcher appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the FINS ACORD XML Dispatcher.
Choose the method.
The example uses the Dispatch Message method.

Set the input and output arguments.

The following are the input argument settings for the example dispatcher incoming configuration.

Input Argument	Type	Property Name	Property Data Type
DispatcherMapName	Process Property	ACORD DispMap Integration Object Name	String
XMLEnvIntObjectName	Process Property	ACORD Envelope Integration Object Name	String
XML Property Set	Process Property	PropSet XML converter Out (Incoming)	Hierarchy

The following are the output argument settings for the example dispatcher incoming configuration.

Property Name	Type	Value	Output Argument
PropSet Dispatcher Out (Incoming)	Output Argument		XML Property Set

Configuring the FINS ACORD XML Converter (Incoming)

The third connector component is the converter.

To configure the converter

Name the converter appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the FINS ACORD XML Converter.
Choose the method.
The example uses XMLPropSetToPropSet, because the converter is converting an XML property set from the dispatcher into a Siebel-hierarchy-based property set.

Set the input and output arguments.

The following are the input argument settings for the example converter incoming configuration.

Input Argument	Type	Property Name	Property Data Type
IsClient	Process Property	IsClient	String
XMLEnvIntObjectName	Process Property	ACORD Envelope Integration Object name	String
XML Property Set	Process Property	PropSet Dispatcher Out (Incoming)	Hierarchy

The following are the output argument settings for the example converter incoming configuration.

Property Name	Type	Value	Output Argument
PropSet Converter Out (Incoming)	Output Argument		XML Property Set
SignonRsEcho	Output Argument		SignonRsEcho

Configuring the FINS ACORD XML Data Transformation Engine (Incoming)

The fourth connector component is the data transformation engine (DTE).

To configure the DTE

Name the DTE appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the FINS ACORD XML DTE.
Choose the method.
The example uses the Transform to Siebel Hierarchy method because the data is moving from an external system to a Siebel internal system.

Set the input and output arguments.

The following are the input argument settings for the example DTE incoming configuration.

Input Argument	Type	Value	Property Name	Property Data Type
XML Property Set	Process Property		PropSet Converter Out (Incoming)	Hierarchy

The following are the output argument settings for the example DTE incoming configuration.

Property Name	Type	Value	Output Argument
PropSet DTE Out (Incoming)	Output Argument		XML Property Set

Configuring the FINS ACORD Transaction Manager

The fifth connector component is the transaction manager.

To configure the transaction manager

Name the transaction manager appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the FINS ACORD XML Transaction Manager.
Choose the method.
The example uses the Execute Transaction method because the data is being received from the external data source and must be delivered to the Siebel application.

Establish the input and output arguments.

The following are the input argument settings for the example transaction manager configuration. Notice that the data flow within the connector changes direction at this point from incoming to outgoing.

Input Argument	Type	Value	Property Name	Property Data Type
Only product Integration Object Instance	Literal	true
Report Error in Message	Literal	true
Rollback In Error	Literal	false
SiebelFINSOperationOut	Process Property		Siebel FINS Operation	String
Status Object	Literal	true
XML Property Set	Process Property		PropSet DTE Out (Incoming)	Hierarchy

The following are the output argument settings for the example transaction manager configuration.

Property Name	Type	Value	Output Argument
PropSet TransMgr Out (Outgoing)	Output Argument		XML Property Set

Configuring the FINS ACORD XML Data Transformation Engine (Outgoing)

The sixth connector component is the data transformation engine (DTE).

To configure the DTE

Name the DTE appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the FINS ACORD XML DTE.
Choose the method.
The example uses the Transform to External Hierarchy method because the data is moving from the Siebel internal system to an external system.

Set the input and output arguments.

The following are the input argument settings for the example DTE outgoing configuration.

Input Argument	Type	Value	Property Name	Property Data Type
XML Property Set	Process Property		PropSet TransMgr Out (Outgoing)	Hierarchy

The following are the output argument settings for the example DTE outgoing configuration.

Property Name	Type	Value	Output Argument
PropSet DTE Out (Outgoing)	Output Argument		XML Property Set

Configuring the FINS ACORD XML Converter (Outgoing)

The seventh connector component is the converter.

To configure the converter

Name the converter appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the FINS ACORD XML Converter.
Choose the method.
The example uses PropSetToXMLPropSet because the converter is converting a property set from the DTE into a standard XML property set.

Set the input and output arguments.

The following are the input argument settings for the example converter outgoing configuration.

Input Argument	Type	Property Name	Property Data Type
Client Application Name	Process Property	ACORD Client Application Name	String
Client Application Organization	Process Property	ACORD Client Application Organization	String
Client Application Version	Process Property	ACORD Client Application Version	String
Is Client	Process Property	IsClient	String
Is Signoff	Process Property	ACORD Signoff	String
Service Provider Name	Process Property	ACORD Service Provider Name	String
SignonRsEcho	Process Property	SignonRsEcho	Hierarchy
XMLEnvIntObjectName	Process Property	ACORD Envelope Integration Object	String
XML Property Set	Process Property	PropSet DTE Out (Outgoing)	Hierarchy

The following are the output argument settings for the example converter outgoing configuration.

Property Name	Type	Value	Output Argument
PropSet Converter Out (Outgoing)	Output Argument		XML Property Set

Configuring an XML Hierarchy Converter (Outgoing)

The eighth connector component is a hierarchy converter. For information about Siebel hierarchy converters, see XML Reference: Siebel Enterprise Application Integration.

To configure an XML hierarchy converter

Name the hierarchy converter appropriately (it must be unique within the workflow).
Choose the type of business service from the multi-value group (MVG) window.
For this component, choose the XML Hierarchy Converter.
Choose the method.
This example uses the XML Hierarchy to XML Document method because, for an outgoing message, the final conversion is from an XML hierarchy to an XML document that can be accepted by any XML-compliant converter at the external location.

Set the input and output arguments, XML Hierarchy name, and XML document name.

The following are the input argument settings for the example hierarchy converter outgoing configuration.

Input Argument	Type	Value	Property Name	Property Data Type
XML Header Text	Process Property		ACORD DOCTYPE	String
XML Hierarchy	Process Property		PropSet Converter Out (Outgoing)	Hierarchy

The following are the output argument settings for the example hierarchy converter outgoing configuration.

Property Name	Type	Value	Output Argument
<Value>	Output Argument		XML Document

This step completes the inbound workflow. The inbound ACORD XML connector can be used as the basis for any workflow that is used to receive an inbound request message.

Configuring Runtime Events

Oracle supports triggering workflows based on runtime events. Using a runtime event allows you to incorporate configured workflow functions into actual applications. For complete information about runtime events, see Siebel Events Management Guide.

The example in this section describes a runtime event that adds an auto policy when the Sub Status field changes in an INS Policy business component record. In the following procedure, a runtime event is defined and linked to an action that starts the example outbound workflow. It sends the active record as an ACORD XML message in the example connector.

To create a runtime event

Start the Siebel client.
Navigate to the Administration - Runtime Events screen, then Events, and then Events view.
Create a new event record, and enter the following values:
- Action Set Name = ACORDDemo
- Object Type = BusComp
- Object Name = INS Policy
- Event = SetFieldValue
- Subevent = Sub Status
Enter the following condition expression:
([Sub Status] = LookupValue (‘INS_POLICY_SUBSTATUS’, ‘Submitted’))
This expression instructs the Siebel application to initiate the action set ACORDDemo when the Sub Status field value changes to Submitted. Typically, this will occur when the user selects Submitted from the value list.
Create a new record for Action Sets/Actions, with the following parameters:
- Actions Type = BusService
- Business Service Name = Workflow Process Manager
- Business Service Method = RunProcess
- Business Service Context = “ProcessName,” ACORD Add Auto Policy Outbound Workflow (the name of the configured workflow that handles outbound messages).

Configuring Server Tasks

A server task is an instantiation of a server component. To run a server task, you need to run a component request, which will request that one or more server tasks run.

The following example describes how to configure a server task for the EAI MQSeries Server Transport. The Siebel EAI MQSeries Server Transport is designed to provide a messaging solution to help you integrate data between Oracle’s Siebel Business Applications and external applications that can interface with the IBM MQSeries. The IBM MQSeries Server Transport transports messages to and from IBM MQSeries queues.

In order to run this server task successfully you need to first configure two named subsystems.

To configure named subsystems

Start the Siebel client.
Navigate to the Administration - Server Configuration screen, then Profile Configuration, and then Profile Configuration view.
Create a new record in the Component Profiles list and provide the required information.
- Name. Name of the named subsystem, for example ACORDMQConnSubsys
- Type. Type of the named subsystem, MQSeriesServerSubsys
Note: The subsystem type that you select should have a checkmark in the Is Named Enabled field.
Save the record.
In the Enterprise Profile Configuration list, modify parameters.
- MqPhysicalQueueName. <Queue name from which to receive inbound request message>
- MqQueueManagerName. <Name of the queue manager who owns the queues>
- MqRespPhysicalQueueName. <Queue name to which to send the response message>
- MqSleepTime. 100 <or longer if needed>
Save the record.
Create another Named Subsystem with the following name and parameters:
- Name. Name of the named subsystem, for example ACORDMQDataSubsys
- Type. EAITransportDataHandlingSubsys
Save the record.
In the Enterprise Profile Configuration list, modify the parameters.
- DispatchWorkflowProcess. ACORD Server Party Package Workflow

After creating and configuring the named subsystems, you need to configure MQSeries Receiver.

To configure MQSeries Receiver

Start the Siebel client.
Navigate to the Administration - Server Configuration screen, then Enterprises, and then Component Definitions view.
Query for MQSeries Server Receiver and set the following:
- Receiver Connection Subsystem. ACORDMQConnSubsys <the name from step 4 in the previous procedure>
- Receiver Data Handling Subsystem. ACORDMQDataSubsys <the name from step 8 in the previous procedure>
- Receiver Method Name. ReceiveDispatch <or ReceiveDispatchSend>
- Default Tasks. 1 <or number of tasks desired>
Restart the Siebel server and make sure that the MQSeries Server Receiver server component is running.

Note: For details on creating and configuring server tasks, see Siebel System Administration Guide and for details on configuring MQSeries, see Transports and Interfaces: Siebel Enterprise Application Integration.

Sample Workflows

This chapter has provided an example configuration roadmap. To demonstrate the entire process, the ACORD Policy Package is included in the sample database for Oracle’s Siebel Financial Services. The package contains all the workflows, integration objects and DTE Maps needed. The package supports the following functions:

Sending out standard ACORD request messages from a Siebel client application to add (Add) or query (Inquiry) ACORD-compatible insurance policy records.
The messages can be sent from the Auto Policies view, the Property Policies view, and the PUL Policies view.
For a Siebel server receiving an ACORD request message (from step 1), executing the proper database transaction and sending back a standard ACORD response message.
For a Siebel client application receiving an ACORD response message (from step 2), executing the proper database transaction.

The package includes the following integration objects:

Data Transformation Maps (DTE maps)
Including 24 Maps for Siebel ACORD Policy Messages

The package includes several workflows to minimize your custom configuration tasks. These workflows can be used as templates to customize or configure to become your own workflows.

Workflows are categorized as follows:

Clients: Ready for use

ACORD Client Auto Policy Package Workflow (comprehensive)
- ACORD Add Auto Policy Outbound Workflow
- ACORD Inquiry Auto Policy Outbound Workflow
ACORD Client Home Policy Package Workflow (comprehensive)
- ACORD Add Home Policy Outbound Workflow
- ACORD Inquiry Home Policy Outbound Workflow
ACORD Client PUL Policy Package Workflow (comprehensive)
- ACORD Add PUL Policy Outbound Workflow
- ACORD Inquiry PUL Policy Outbound Workflow
ACORD Policy Outbound Response Workflow No Rollback
ACORD Policy Outbound Response Workflow With Rollback

Server: Ready for use

ACORD Server Policy Package Workflow
