Payments

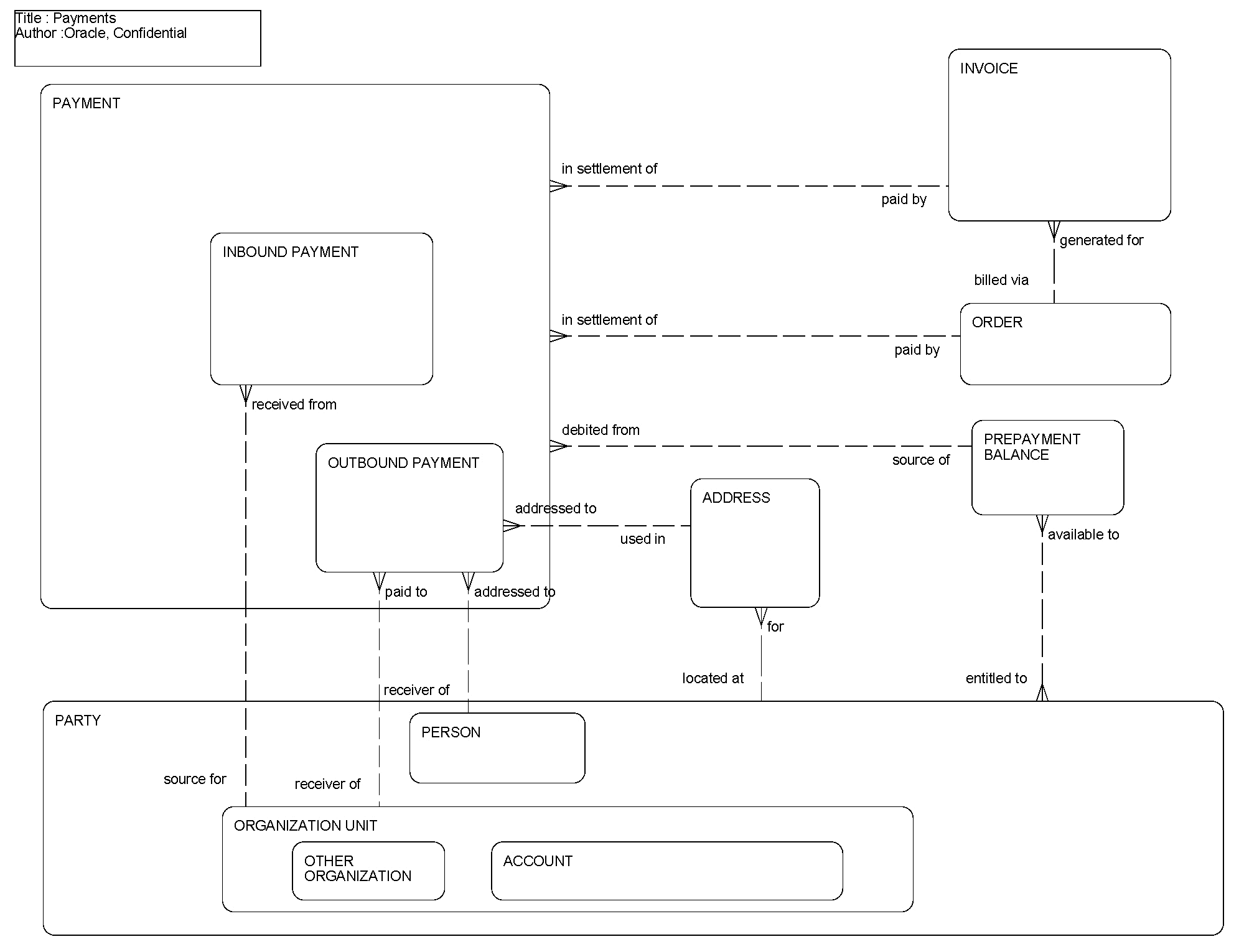

This ERD (see the following figure) illustrates the support for payments provided in the Siebel Data Model. The payment entity supports payments made by customers to the company, as well as payments made by the company to customers, vendors, or others. A payment can be made to directly settle an order or to settle one or more Invoices. An invoice can be paid through one or more payments. A payment can be taken as a deduction from a prepayment balance available to the paying party.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Address	S_ADDR_ORG (Siebel Cross-Industry Applications) S_ADDR_PER (Siebel Industry Applications)
Invoice	S_INVOICE
Order	S_ORDER
Organization Unit	S_ORG_EXT, S_PARTY
Party	S_PARTY
Payment	S_SRC_PAYMENT
Person	S_CONTACT, S_PARTY
Prepayment Balance	S_PREPAY_BAL
