PRM ANI Inbound Addressing Change Process Workflow

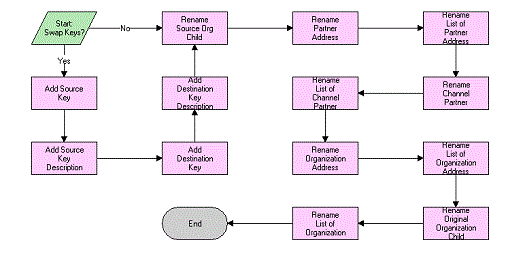

The PRM ANI Inbound Addressing Change Process workflow is shown in the following diagram.

PRM ANI Inbound Addressing Change Process Workflow: This image is described in the surrounding text.

As shown in this diagram, the following events happen when this workflow is called:

  • The first events take the information about the system keys, internal and external, and use it to judge whether to swap the source organization and destination channel partner information in the message.

  • If the key manipulation is handled elsewhere, the remaining steps are ignored.

  • If the key manipulation is not handled elsewhere, the next events swap the source organization and destination channel partner data as follows:

    • Because the fields (including the addresses) are the same, the names of the components are altered. For example, Channel Partner Address becomes Organization Address. No data is actually moved.

    • The hierarchy component names are kept in process properties to allow for greater flexibility. If an integration component is renamed, a small change in the process properties is all that is needed.
