The Safety Setup contains all the codes required in Standard Safety Drill and Advance Safety Drill modes. The setup varies depending on the mode defined in Parameter group, Safety, Advance Safety Drill (0=Standard Safety Drill / 1 = Advance Safety Drill).
In the following figures, you will see the list of codes available to Standard Safety Drill and Advanced Safety Drill mode.
Below are the function codes available to Standard Safety Drill mode where Parameter, Safety, Advance Safety Drill are set to zero.

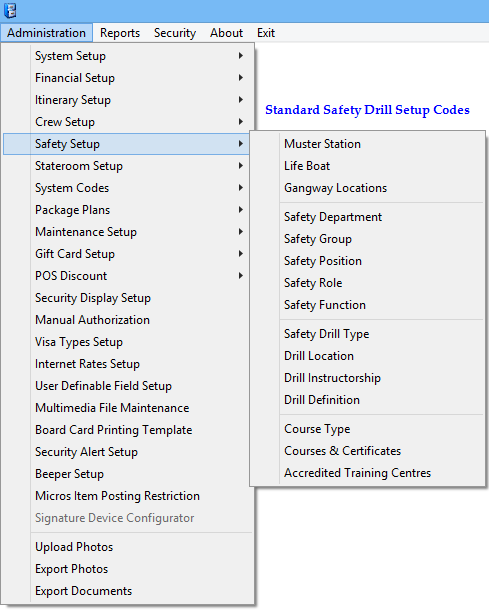

Figure 7-1 Standard Safety Drill Setup Codes

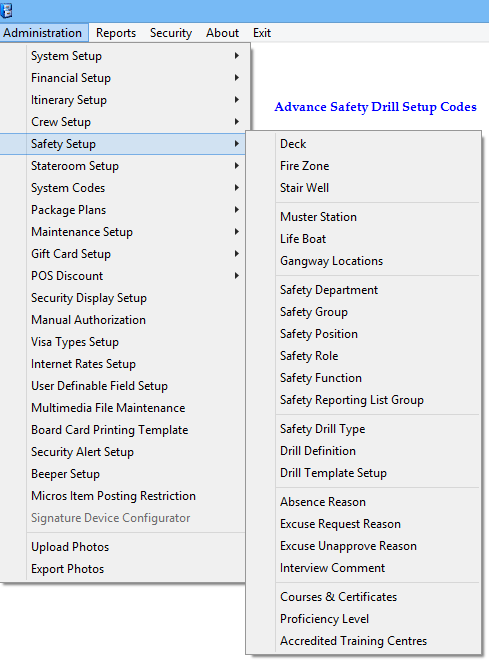

Figure 7-2 Advance Safety Drill Setup Codes
Table 7-1 Safety Setup Configuration Codes
Function Name | Definition |
---|---|
Deck Setup |
Define the deck location in Muster Station Setup. Available in Advance Safety Drill. |
Fire Zone Setup |
Define the Fire Zone for the drill in Muster Station Setup. Available in Advance Safety Drill. |
Stair Well Setup |
Define the stairwell location in Muster Station Setup. Available in Advance Safety Drill. |
Muster Station Setup (definable label - TYP_LBL = SFTMST) |

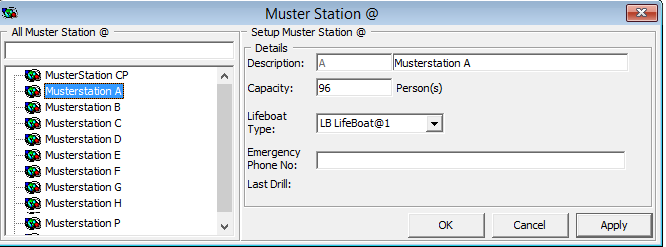

Define the assembly location. |
Lifeboat Setup (definable label - TYP_LBL = SFTBOT) |
Define the lifeboat or life raft capacity. |
Gangway Locations |
Define the location of gangway. |
Safety Department (definable label - TYP_LBL = SFTDIV) |
Define the department responsible for safety for each location. |
Safety Group (definable label - TYP_LBL = SFTSGP) |
Define the responsibilities and task of each safety group. |
Safety Position (definable label - TYP_LBL = SFTCRW) |
Define the position of the crew. |
Safety Role (definable label - TYP_CLBL = SFTROL) |
Define the role of the safety crew. |
Safety Function (definable label – TYP_LBL = SFTFCT) |
Define the role of crew in command of Survival Craft. |
Safety Drill Type |
Define the type of drills. |
Drill Location |
Define the location of the schedule drill. Available in Standard Safety Drill only. |
Drill Instructorship |
Define the instructor responsible for the scheduled drill. Available in Standard Safety Drill only. |
Drill Definition |
Definition of drills. |
Drill Template Setup |
Template for each drill type. |
Absence Reason |
Absent reason from attending safety drill. Available in Advance Safety Drill only. |
Excuse Request Reason |
Reason to be excused from attending safety drill. Available in Advance Safety Drill only. |
Excuse Unapproved Reason |
Reason for not approving the excuse request. Available in Advance Safety Drill only. |
Interview Comment |
A comment field used during interview as a predefined comment, or you can input using free text. Available in Advance Safety Drill only. |
Course & Certificates |
Type of Courses and Certification required for each drill type. |
Proficiency Level |
Proficiency level offered in Courses and Certification. |
Accredited Training Centers |
Reputable Safety training centers recognized by the ship. |
A lifeboat/liferaft has a maximum capacity and does require a number of qualified crew to handle them in the event of an emergency.

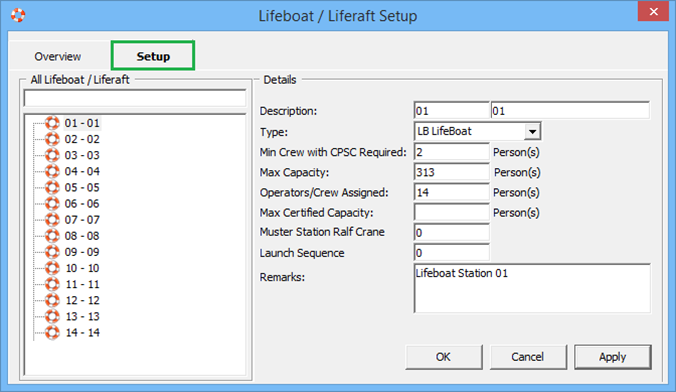

Figure 7-4 Lifeboat/Liferaft Setup
Table 7-2 Lifeboat/Liferaft Setup Field Definition
Field Name | Description |
---|---|
Description |
Short code and description of the lifeboat/liferaft. |
Type |
The type of lifeboat/liferaft. These codes are predefined and hard coded. |
Min. Crew with CPSC Required |
Minimum number of CPSC certified crew on lifeboat/liferaft. |
Max Capacity |
Maximum capacity allowed per lifeboat/liferaft. |
Operators/Crew Assigned |
Number of crew assigned to this lifeboat/raft. |
Max Certified Capacity |
Maximum certified capacity of the lifeboat/raft. |
Muster Station Raft Crane |
Raft crane the lifeboat is assigned to in Muster Station. |
Launch Sequence |
Launch sequence of the lifeboat. |
Remarks |
Additional remarks of the lifeboat. |
To set up the codes, repeat the steps in Setting Up Muster Station. You can also duplicate an existing Lifeboat code using the same steps.
Figure 7-5 Drill Definition Setup

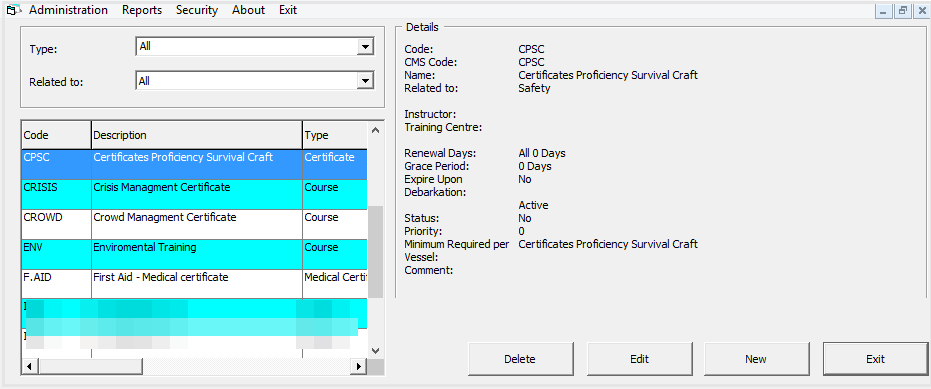

Figure 7-6 Course and Certificates Setup Window
Deck Setup
Fire Zone Setup
Stair Well Setup
Absence Reason
Excuse Request Reason
Excuse Unapprove Reason
Interview Comment
These functions is enabled with Safety, Advance Safety Drill parameter set to one.

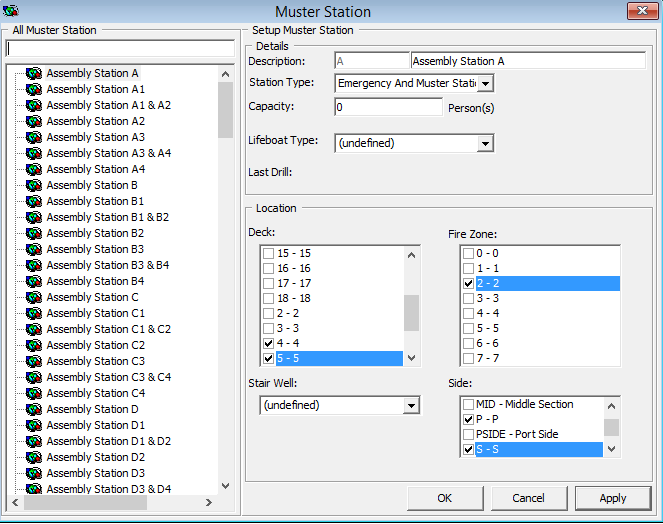

The majority of the screen layout and configuration of the codes are the same as Standard Safety Drill mode, with the exception of the below listed codes, which have additional fields or functions. The steps to create these codes are described in the following topic.
Muster Station
Lifeboat/Liferft
Safety Function
Drill Type
Drill Definition
Drill Template Setup
Courses & Certificates
See chapter Configuring Safety Codes in Standard Safety Drill on how to set up new Safety Drill codes
The Safety drill type defines the type of drills required based on the rules set forth, and the rules is applicable to Training Drills if the Apply Training Rule is checked.
Figure 7-8 Drill Type Setup
The Drill Definition code defines the type of drills, attendance requirements and identify whether drills are Course and Certificate related.

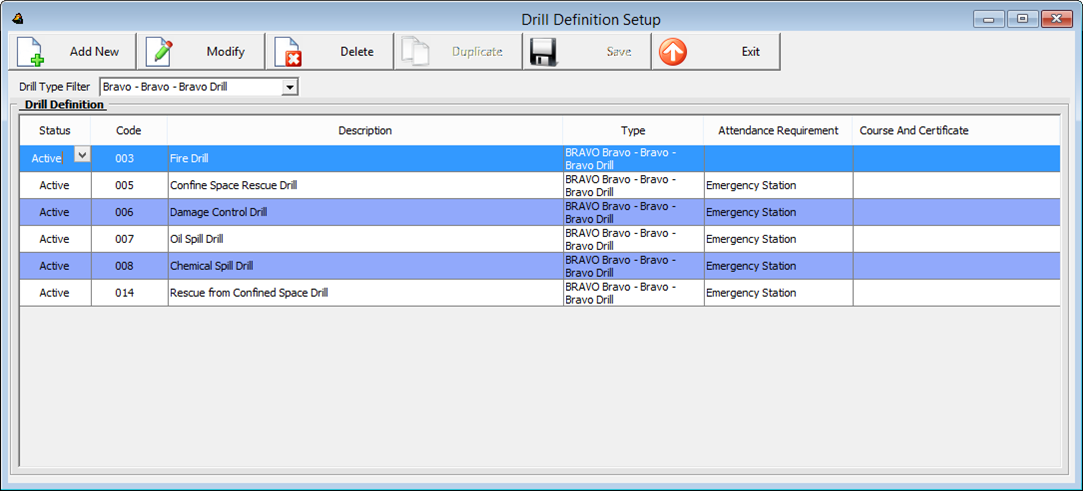

Figure 7-9 Drill Definition Window
A drill template is setup to assist you in generating a crew list under Proposed Crew section using the criteria defined when creating a drill.

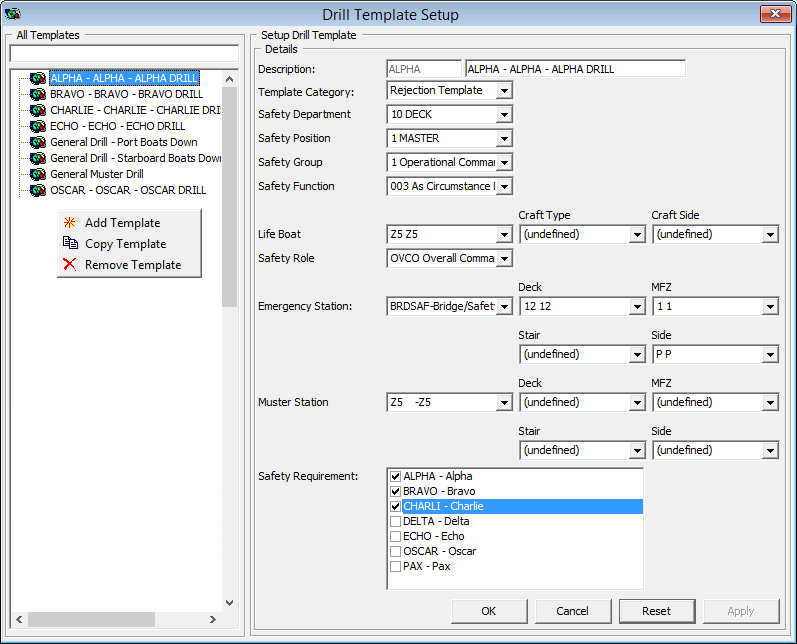

Figure 7-10 Drill Template Setup

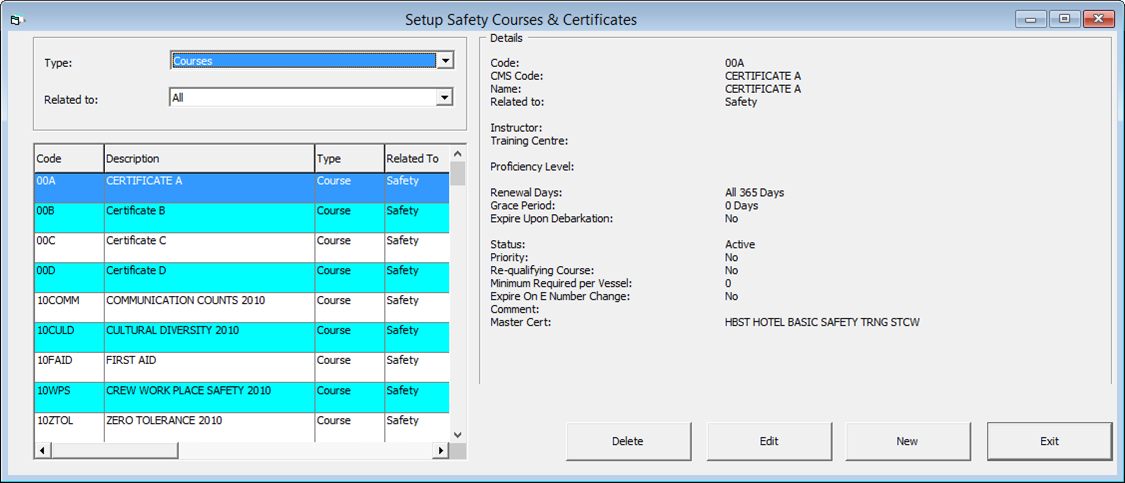

Figure 7-11 Course and Certificate Setup Advance Drill Mode

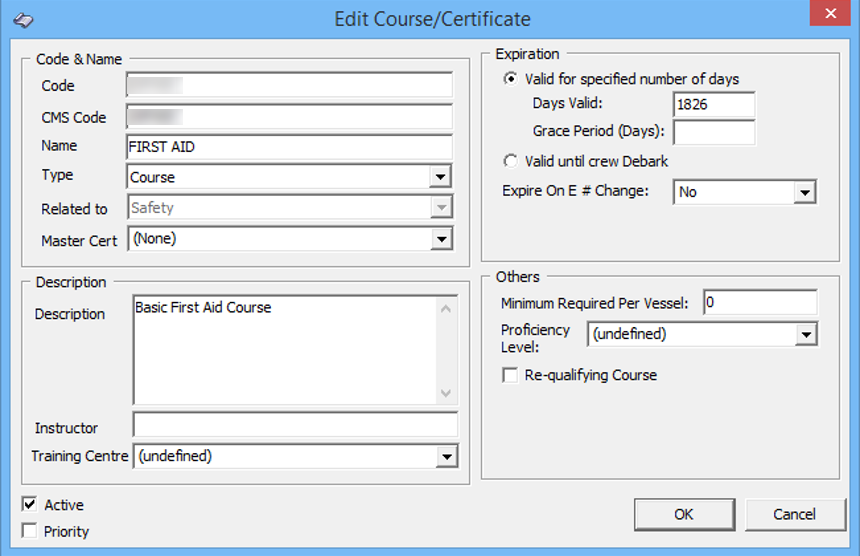

Figure 7-12 Edit Course/Certificate Window
