Organization

The code and name of the organization you selected at the Organizations and Preferences screen. Display-only.

Store Connect System

The code and name of the system flagged as the Store Connect Default for the organization. Display-only.

General tab

Associate UI Timeout

Enter the number of minutes that an inactive store associate session should remain open before timing out. Once an associate’s session times out, the associate is presented with the login screen. Your entry can be up to 3 positions. The default is 30 minutes. Required.

Lock Out

The number of unsuccessful, sequential login attempts that triggers Locate to disable a store associate account. When an associate attempts to log in with a disabled account, Locate displays a general error indicating that the login failed.

Example:  If you set this number to 4, an associate account is disabled after the entry of 4 incorrect passwords in a row.

Reset: An associate’s counter is reset:

•         after a successful login (for example, if there are 3 unsuccessful login attempts, followed by a successful login, the counter is reset to 0

•         when you re-enable the account at the Store Associate User Profiles screen or the Edit Store Associate User Profile screen

LDAP user? If the associate is flagged for LDAP authentication, the lockout counter does not apply, and the associate’s Store Connect user account is not disabled, even if the login attempts exceeds the Lock Out number; however, the associate’s general LDAP authority may be suspended based on the general LDAP settings, which effectively locks the associate out of Store Connect.

Your entry can be 1 to 99 login attempts. The default setting is 5. Required.

Order Age Alert

Order Age Hours

Enter the number of hours within which store associates should process new orders:

•         delivery orders should be shipped within this number of hours

•         pickup orders should be picked and ready for customer pickup within this number of hours

Your entry should be a whole number greater than 0 but not more than 999, or it should be blank. This setting is available at the Store Connect system level only.

Calculated how? The age is calculated based on the date and time when the oldest open (uncompleted) line was created:

•         delivery orders: the date and time when the oldest line still in polled, accepted, or picked status was created (that is, not yet shipped)

•         pickup orders: the date and time when the oldest line still in polled or accepted status was created (that is, not yet picked/customer notified that the order is ready for pickup)

When an order’s age exceeds this number of hours: The Age on Store Connect screens is displayed in red, bold text instead of black once the order’s age exceeds this limit, indicating that the order has exceeded your service level. For example, in the image below, the Order Age Hours is set to 1 hour.

If no Order Age Hours specified: If you leave this field blank, then the Store Connect screens never display the order age in red, bold text. You should either enter a number of hours or leave the field blank; 0 is not a valid entry.

Display of order age in Store Connect:

•         Screens where the store associate can search for orders or display multiple orders, such as the View New Orders screen, display the age as a whole number of hours. The time is truncated; for example, an age of 2 hour and 45 minutes is displayed as 2 hours. If the age is less than an hour, it is displayed as <1 hours.

•         Screens where the store associate can review details about the order, such as the View Order Detail screen, display the age as a whole number of hours and minutes: for example, if the order is 2 hours and 15 minutes old, this is how the age is displayed.

Creation time, not polled time: The order age is based on the date and time when the order line was created in Locate, not the date and time when the order’s status was changed to polled, making the order available to store associates for processing. See the New Order Polling Schedule tab (Schedule) for information on setting up polling schedules for delivery or pickup orders.

Reshopped orders: If the original store location assigned to fulfill a delivery order rejects the order, the order’s age is still calculated based on the original date and time. When the order is assigned to a different store location, the order age may be displayed in red, bold text even though the order is new to the second store.

Orders placed outside of a store location’s business hours: The calculation of order age does not reflect whether the order was placed during the store location’s regular business hours. For example, if the order is created at 6 o’clock, and the store location opens at 10 o’clock, the order’s age is listed as 4 hours.

Consolidated orders: Store Connect presents multiple request IDs as a single order if they have the same order number, order type, store location assignment, and carrier. For example, if the customer places an order for a backordered item in CWSerenade, then later adds another backordered item to the same order, the two lines create separate request IDs in Locate; however, Store Connect screens might display the two lines as a single order. In this situation, the order age displayed is based on when the first order line sent to Locate for fulfillment.

If Store Connect does not present the two lines as a consolidated order, then the order age displayed is based on the individual request ID. For example, if request ID 100 is assigned to store location 10, and request ID 101 is assigned to store location 20. The order age displayed for request ID 101 is based on its own creation date and time, and not the creation date and time of request ID 100.

Unclaimed Orders Hours

Enter the number of hours after a pickup order is picked that the order is considered unclaimed by the customer.

Your entry should be a whole number. This setting is available at the Store Connect system level only.

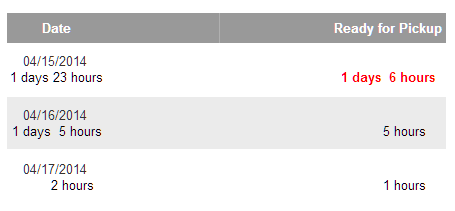

Identifying unclaimed orders in Store Connect: Once the specified number of hours has passed since the order was picked and the customer notified, the Ready for Pickup age displayed on Store Connect screens is in red, bold text instead of black, and the order is included on the View Unclaimed Pickup Orders screen. For example, in the image below, the Unclaimed Orders Hours is set to 24 hours.

Based on earliest picked, open line: If there are multiple lines on the pickup order and the lines were picked at different times, the Ready for Pickup age is based on the earliest date and time when an open line was picked.

Under review: The age is based on the date and time when the order or item was picked, regardless of whether the order was under review. When an order is under review it is not eligible for pickup, and no pickup notification email is generated to the customer until the Under Review indicator is cleared.

For example, at 2:00 an associate picks an order that is under review. At 8:00, the order’s Under Review indicator is cleared, and the customer is notified that the order is ready for pickup. The Ready for Pickup age displayed at 10:00 in Store Connect is 8 hours, although the customer was notified 2 hours ago.

Which screens display the Ready for Pickup age? The Ready for Pickup age is displayed on the:

•         View Pickup Ready Orders screen

•         Pick Up Order Detail screen

•         View Unclaimed Pickup Ready Orders screen

If no Unclaimed Order Hours specified: If you leave this field blank, then the Store Connect screens never indicate an order is unclaimed, and the View Unclaimed Pickup Ready Orders screen lists all pickup-ready orders. You should either enter a number of hours or leave the field blank; 0 is not a valid entry.

Logo URL

Enter the URL of the logo in the upper left corner of each Store Connect screen. The recommended logo size is 225 x 50 pixels.

Preview: Click the magnifying glass () to preview the logo as it will print on the form.

If you leave this field blank, then the screen does not include a logo.

If there is no logo at the specified URL, then the screen displays a broken image icon.

Pick/Pack Preferences tab (Pick Pack)

Pick Verification Preferences

These preferences control the screens and windows that a store associate uses to confirm that orders are picked and ready for shipment or pickup by selecting the Verify Orders Picked option at the home screen.

Pick Verify Method

Controls the steps a store associate uses to confirm that orders are picked and ready for shipment (delivery orders) or pickup (pickup orders). When the associate selects the Verify Orders Picked option at the home screen, if the Pick Verify Method is set to:

•         Immediate: The View Orders Ready for Picking screen opens, listing orders with at least one line eligible for pick verification. From this screen, the associate can select for an order:

•         Pick Order to open the Pick Order window, verifying that the entire order has been picked

•         Pick Items to advance to the Pick Order Detail screen, to verify that the entire order or individual items have been picked

•         Item: The Orders To Be Picked screen opens. The associate needs to enter a valid order number, for an order with at least one line whose next action is Pick, to advance to the Pick Order Detail - Item screen. From this screen, the associate can verify that the entire order or individual items have been picked.

The Pick Order Detail - Item screen is virtually identical to the Pick Order Detail screen, but the Item method requires the associate to view the order detail before confirming the items as picked.

•         Scan: The Orders To Be Picked screen opens. The associate needs to enter a valid order number, for an order with at least one line whose next action is Pick, to advance to the Scan Items To Pick screen. At this screen, the associate can enter item numbers or scan UPC codes, based on the Item Scan Type setting, to specify each item that is picked. If the Item Scan Type is set to UPC, Locate uses the Item Scan Length to determine when to validate the UPC code and increment the quantity picked by one.

For more information: See Pick Verification Options for a discussion.

Item Scan Type

Indicates the method of identifying picked items. Used only if the Pick Verify Method is set to Scan. Possible methods are:

•         Item: The associate enters the item (system product) code at the Scan Items to Pick screen.

•         UPC: The associate scans the universal product code at the Scan Items to Pick screen. A UPC record is required for each item in the product_barcode table, and the screen uses the Item Scan Length to determine when to validate the UPC and increment the picked quantity for the item. If the associate clicks DONE at this screen before completing the scan of all items, the Pick Order Warning window opens.

See the Item Scan Length, below, for more information on scanning by UPC.

Item Scan Length

The number of positions in the item UPC. When this number of positions is scanned, the Store Connect screen identifies the item that was picked. When using the UPC option, the screen increments the picked quantity by one each time the code is scanned.

Creating product_barcode records: You need to create records in the product_barcode table in order to have associates scan items by UPC. Each record includes:

•         the numeric product_id that identifies the produce in Locate. This numeric ID is not displayed on any screens, but you can use the system_product table to match your own item numbers to the product_id.

•         the barcode itself

•         a barcode_type, which should be set to 1.

Contact your MICROS project manager for more information.

Used only if the Item Scan Type is UPC.

Pick/Pack Preferences

These fields control the generation of the pick list pull sheet and the packing slip, including when to generate the forms, the programs to print them, and the logo and messages to include on the printed documents.

Pick List Pull Sheet Form

The Jasper program to use when generating the pick list pull sheet. The default form is PULLSHEET.jasper; see Pick List Pull Sheet information on form contents. Up to 20 positions.

Unique form? If you specify a unique pick list pull sheet form, you need to put the Jasper program file in C:\Locate\server\conf\packslips, where C: is the default drive of your Locate server (not the Store Connect server).

If you leave this field blank, or if your entry does not match a file in the folder listed above, no pick list pull sheet PDFs are generated in Store Connect.

Pack Slip Form

The Jasper program to use when generating the packing slip. The default program is PACKSLIP_STC.jasper; see the Store Connect online help for a sample and form contents. Up to 20 positions.

Sample: See the Packing Slip.

Unique form? If you specify a unique packing slip form, you need to put the Jasper program file in C:\Locate\server\conf\packslips, where C: is the default drive of your Locate server (not the Store Connect server).

If you leave this field blank, or if your entry does not match a file in the folder listed above, no packing slip PDFs are generated in Store Connect.

Print Pack Documents

Controls when the packing slip is generated for printing in Store Connect. Required. When this preference is set to:

•         Order Accept:

•         At Accept & Print: The pick list pull sheet and the packing slip are generated for printing.

•         On demand: The store associate has the option to generate either document at any point until verifying the order is fulfilled.

•         At pick verification: The store associate has an option to generate the packing slip at the Pick Order window that opens during pick verification.

•         At shipment or pickup: The packing slip is generated for printing.

•         Pick:

•         At Accept & Print: The pick list pull sheet is generated for printing, but not the packing slip.

•         On demand: The store associate has the option to generate the pick list pull sheet at any point until verifying the order is fulfilled, but cannot yet generate the packing slip.

•         At pick verification: The packing slip is generated for printing.

•         At shipment or pickup: The packing slip is generated for printing.

•         Order Accept and Pick:

•         At Accept & Print: The pick list pull sheet and the packing slip are generated for printing.

•         On demand: The store associate has the option to generate either document at any point until verifying the order is fulfilled.

•         At pick verification: The packing slip is generated for printing.

•         At shipment or pickup: The packing slip is generated for printing.

•         Fulfillment:

•         At Accept & Print: The pick list pull sheet is generated for printing, but not the packing slip.

•         On demand: The store associate has the option to generate the pick list pull sheet at any point until verifying the order is fulfilled, but cannot yet generate the packing slip.

•         At pick verification: No documents are generated for printing.

•         At shipment or pickup: The packing slip is generated for printing.

Note: The pick list pull sheet and packing slip are generated as described above only if the Pick List Pull Sheet Form or Pack Slip Form are specified at this screen.

Logo URL (packing slip)

Enter the URL of the logo that prints on the packing slip in Store Connect. The recommended logo size is 225 x 50 pixels.

Preview: Click the magnifying glass () to preview the logo as it will print on the form.

If you leave this field blank, or if there is no logo at the specified URL, then the packing slip does not include a logo.

Delivery Pack Slip Message

Optionally, enter a message to print on packing slips for delivery orders. The message prints below the addresses and above the items. Your entry can be up to 240 positions.

PickUp Pack Slip Message

Optionally, enter a message to print on packing slips for pickup orders. The message prints below the address and above the items. Your entry can be up to 240 positions.

Shipping Preferences tab (Shipping)

Shipping Service Configuration

Shipping preference hierarchy: In order to use ADSI at any Store Connect location, you need to specify the fields at this tab at the Store Connect system level. You must then set the Shipping Service preference at the system level, and can also set it at the location type or location level. The hierarchy is:

1.      Use the setting at the location, if any.

2.      If the setting for the location is Not Defined, use the setting at the location type, if any.

3.      If the setting for the location type is Not Defined, use the setting for the Store Connect system.

Navigational fields

These fields are in the left-hand side of the screen, below the heading information.

System

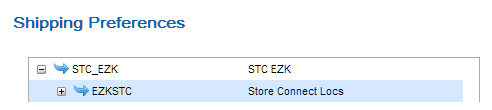

When you first advance to this tab, the location hierarchy is displayed in the left-hand pane, collapsed to the level of the Store Connect system for the organization you selected at the Organizations and Preferences screen.

Shipping Service specified? The system code and system name are displayed. A blue arrow () is always displayed next to the system, and is also displayed next to a location type or location to indicate if you have specified a Shipping Service of either ADSI or Manual at that level or lower.

Type

When you expand the System to highlight a location type in the left-hand pane, the location type’s code and name are displayed. A blue arrow next to the location type indicates that you have set a shipping preference at that level or lower.

This setting, if any, applies if there is no setting at the location level. If the setting is Not Defined at both the location and location type level, the setting for the Store Connect system applies.

Location

When you expand the location type to highlight a location in the left-hand pane, the location’s code and name are displayed.

If the Shipping Service is set to Not Defined at the location level, the location type-level setting, if any, applies; and if the Shipping Service is set to Not Defined at the location type level, the system-level setting applies.

Shipping Preference settings

Shipping Service

Set this field to:

•         ADSI to use integrated shipping

•         Manual to use manual shipping

•         Not Defined to check for a setting at the next higher level. If the Shipping Service is set to Not Defined at the location level, the location type-level setting, if any, applies; and if the Shipping Service is also set to Not Defined at the location type level, the system-level setting applies. Not a valid selection at the system level.

Shipping Service Configuration

Complete the following fields at the Store Connect system level to enable integrated shipping in Store Connect. If the Shipper URL and Shipper Name are not complete, integrated shipping will not be available at any store location, regardless of the setting of the Shipping Service.

This information typically comes from your contact at ADSI.

Shipper URL

Enter the URL to use for the integrated shipping system when the store associate confirms shipments through integrated shipping. Required if the Shipping Service is set to ADSI at any level.

Shipper Name

Enter the code that identifies you to the integrated shipping system. Required if the Shipping Service is set to ADSI at any level.

Shipping Label Return Address

Select the location to submit to ADSI as the return address for shipments:

•         Originating Location (default): The location that originated the order

•         Fulfilling Location: The store location fulfilling the order

•         Selected Location: Another location in your organization. If you select this option, the Location for Return Address field opens, so you can select the location to use as the return address.

Note:  The return address location must include:

•         contact name and company name

•         street address line 1

•         U.S. city, state/province, and postal code

•         phone number of 10 positions, plus any formatting (for example, (508) 555-1111). The store location phone number is used if there is not a day or evening phone number for the order shipping address.

See the Edit Location screen for more information on setting up locations.

Location for Return Address

Use this field to select the location in your organization to submit to ADSI as the return address for shipments. All locations for all systems within your organization are available for selection. This field is available only if you select Selected Location at the Shipping Label Return Address field.

New Order Polling Schedule tab (Schedule)

Use this tab to set up the schedule to change new orders from New Order status to Polled. Orders must be in Polled status before they are displayed on Store Connect screens and are available for processing by store associate users.

Schedule options:

•         You can schedule polling of new orders based on the Interval Method specified at the system level for delivery and pickup orders. Each type of order can use a different method:

•         Immediate: Orders go into Polled status immediately. If you select this method at the system level, there are no other fields to enter at this tab.

•         Minutes: A job that runs every 15 minutes evaluates whether the specified interval specified for the location, location type, or system has elapsed; and, if so, it changes any new orders to Polled status.

•         Times: A job that runs every 15 minutes evaluates whether the time specified for the location, location type, or system has passed; and, if so, it changes any new orders to Polled status.

•         After specifying the method for each order type, you can specify different details if the Interval Method is Minutes or Time. For example, if an Interval Method of Minutes is specified at the system level for an order type of Delivery, you can set a default of 30 minutes at the system or location type level, but override the default to 20 minutes for individual locations.

Schedule restrictions:

•         Single interval method for order type: You cannot set the Interval Method for an order type differently at different levels; the method is set for an order type at the system level only. For example, you cannot set the Interval Method to Minutes at the system level for delivery orders, but then override the method to Immediate for delivery orders for a location type or location; however, you could set the Interval Method to Time for delivery orders, and set it to Immediate for pickup orders.

•         No additional settings available when method is Immediate: If the Interval Method is Immediate, you cannot specify any other settings at the location type or location level. All new orders of the specified order type will be eligible for Store Connect processing immediately after creation.

•         Minutes must be 15 or more: If the Interval Method is Minutes, then you cannot set the Minutes to a number lower than 15, because the background job that evaluates whether to set new orders to Polled status runs only at 15-minute intervals.

Navigational fields

These fields are in the left-hand side of the tab, below the heading information.

System

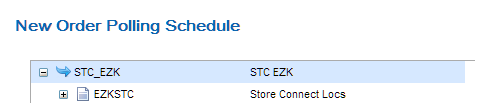

When you first advance to this tab, the location hierarchy is displayed in the left-hand pane, collapsed to the level of the Store Connect system for the organization you selected at the Organizations and Preferences screen.

Polling schedule specified? The system code and system name are displayed. A blue arrow () next to the system indicates if you have specified any scheduling options (for either order type) at that level or lower.

Type

When you expand the System to highlight a location type in the left-hand pane, the location type’s code and name are displayed. A blue arrow next to the location type indicates if you have specified any scheduling options at that level or lower.

If no scheduling options are specified at the location type level or the location level, the system-level setting applies. Location-level settings override settings at the location type or system level.

Polling schedule specified? The location type code and name are displayed. A blue arrow () next to the location type indicates if you have specified any scheduling options (for either order type) at that level or lower.

Location

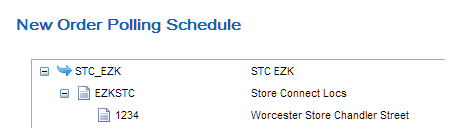

When you expand the location type to highlight a location in the left-hand pane, the location’s code and name are displayed.

If no scheduling options are specified at the location type level or the location level, the system-level setting applies. Location-level settings override settings at the location type or system level.

Polling schedule specified? The location code and name are displayed. A blue arrow () next to the location indicates if you have specified any scheduling options (for either order type) for the location.

Current Server Time

The current server time is indicated to help you determine the correct Daily Start Time, Daily End Time, and Times for scheduling, in case you do not use an Interval Method of Immediate.

Note:  The time is displayed here in the format for your local time; however, when you enter times in the Times, you need to enter the times in 24-hour format. For example, even if the time displayed is 3:41 Eastern Standard Time, you need to enter 4:00 PM as 16:00.

Delivery tab or Pickup tab

You can set up a different interval method and schedule for updating delivery and pickup orders to Polled. For example, you might want to process pickup orders immediately, or at short intervals throughout the day, but make delivery orders available only at mid-morning and mid-afternoon. See above for a discussion.

Interval Method

The method to use when evaluating whether to change new orders to Polled status for a Store Connect location, making the orders available for store associates to work with:

•         Immediate: Orders go into Polled status immediately. If you select this method at the system level, there are no other fields to enter at this tab.

•         Minutes: A job that runs every 15 minutes evaluates whether the specified interval specified for the location, location type, or system has elapsed; and, if so, it changes any new orders to Polled status.

•         Times: A job that runs every 15 minutes evaluates whether the time specified for the location, location type, or system has occurred; and, if so, it changes any new orders to Polled status.

System level only: This setting is available at the system level only for Pickup and Delivery order types. Each order type can use a different method.

Changing the interval method: When you change the interval method, your previous settings are lost. You will need to enter new interval settings.

If you enter any settings at the location or location type level for an order type, you must complete all required settings as described below for that level.

Any entry at the location level overrides any entry at the location type level. If there is no entry at the location level, the location type level overrides the system level.

Day of Week

Select one or more days of the week to change order status to Polled for the order type and the system, location type, or location.

This option is:

•         not available if the Interval Method for the system and order type is set to Immediate

•         available at the system, location type, and location level for each order type if the Interval Method is set to Minutes or Time

If the Interval Method is set to Minutes or Time, at least one day is required at the system level, and at any other level where you enter any settings.

Daily Start Time

Enter a daily start time in HH:MM, 24-hour format to indicate when to begin changing new orders to Polled status for the order type and the system, location type, or location.

This option is:

•         not available if the Interval Method for the system and order type is set to Immediate

•         available at the system, location type, and location level for each order type if the Interval Method is set to Minutes or Time

If the Interval Method is set to Minutes or Time, a daily start time is required at the system level, and at any other level where you enter any settings.

Daily End Time

Enter a daily end time in HH:MM, 24-hour format to indicate when to stop changing new orders to Polled status for the order type and the system, location type, or location.

This option is:

•         not available if the Interval Method for the system and order type is set to Immediate

•         available at the system, location type, and location level for each order type if the Interval Method is set to Minutes or Time

If the Interval Method is set to Minutes or Time, a daily end time is required at the system level, and at any other level where you enter any settings.

Times

Enter each time in HH:MM, 24-hour format, separated by commas and no spaces, to indicate when to change new orders to Polled status for the order type and the system, location type, or location.

This option is available only if the Interval Method is set to Time.

If the Interval Method is set to Time, at least one time is required at the system level, and at any other level where you enter any settings.

Minutes

Enter a number of minutes to indicate how often to change new orders to Polled status for the order type and the system, location type, or location. Your entry must be 15 or higher and a whole number.

Examples:

•         You set an interval of 20 minutes. The background job wakes up at 10:00 and sets new orders to polled. The job wakes up again at 10:15 and does not update any orders, since 20 minutes have not yet passed. The job wakes up again at 10:30 and sets new orders to polled.

•         You set an interval of 15. Each time the background job wakes up, it sets new orders to polled.

•         You set an interval of 60. The background job wakes up at 10:00 and sets new orders to polled. The job wakes up again at 10:15, 10:30, and 10:45, but does not update any orders, since 60 minutes have not yet passed. The job wakes up again at 11:00 and sets new orders to polled.

This option is available only if the Interval Method is set to Minutes.

If the Interval Method is set to Minutes, this entry is required at the system level, and at any other level where you enter any other settings.

Email tab

Email Notifications

The following settings control the email notifications sent to customers and to notify store locations of new orders.

Customer Service From Email

The “from” address used for email notifications to the customer (Shipment Notification Email, Pickup Ready Notification Email, and Pickup Ready Reminder Email). Does not need to be a valid, existing email address.

If no email address is specified here, no email notifications are generated to customers as a result of Store Connect activity.

New Order Email

Specifies the template used to generate a notification to a Store Connect location when an assigned order’s status changes from New Order to Polled. The base template name is NewStoreOrderNotification. Email templates are typically located at C:\Locate\server\conf\emailtemplates, where C:\ is the default drive of your Locate server.

Turn off email notifications? To turn off email notifications to a store location, delete the email address(s) specified at the Edit Location screen. To turn off email notifications for all store locations, leave this field blank.

For more information: See:

•         contents: New Order Notification to Store Connect Location

•         email setup information: Store Connect Email Notifications Summary

•         scheduling polling for Store Connect orders: the New Order Polling Schedule tab (Schedule)

•         overview: Notifying Store Connect Locations about New Orders

Shipment Notification Email

Specifies the template used to generate a notification to the customer when any items on a delivery order is shipped from Store Connect. Required to generate shipment notifications from Locate. You would typically use this notification only if the originating system, such as CWSerenade, does not also generate a shipment notification email.

The base template name is ShipNotif. Email templates are typically located at C:\Locate\server\conf\emailtemplates, where C:\ is the default drive of your Locate server. Contact your MICROS representative for information on using a unique template.

For more information: See:

•         contents: Shipment Confirmation to Customer

•         email setup information: Store Connect Email Notifications Summary

Pickup Ready Notification Email

Specifies the template used to generate a notification to the customer when the store associate confirms that one or more items on a pickup order is picked. Required to generate pickup notifications. The base template name is PickUpReadyNotif. Email templates are typically located at C:\Locate\server\conf\emailtemplates, where C:\ is the default drive of your Locate server. Contact your MICROS representative for information on using a unique template.

For more information: See:

•         contents: Pickup Ready Notification to Customer

•         email setup information: Store Connect Email Notifications Summary

Pickup Ready Reminder Email

Specifies the template used to generate a notification to the customer when the store associate selects Resend Email for a pickup order that has been picked and is not under review. If no template is specified here, the Resend Email option is not available in Store Connect.

The base template name is PU-Remind. Email templates are typically located at C:\Locate\server\conf\emailtemplates, where C:\ is the default drive of your Locate server. Contact your MICROS representative for information on using a unique template.

For more information: See:

•         contents: Pickup Ready Reminder to Customer

•         email setup information: Store Connect Email Notifications Summary

Email Image

Logo URL (email)

The URL for the logo to include on email notifications to customers. Emails include the image at a size 225 x 50 pixels. See Store Connect Email Notifications Summary for a list of email notifications to customers.

Preview the logo: After entering the URL, click the preview icon () to preview the image at 225 x 50.
