Data Delivery (Broadcast)

The following call flow explains the procedure for delivering MQTT MT message broadcast.

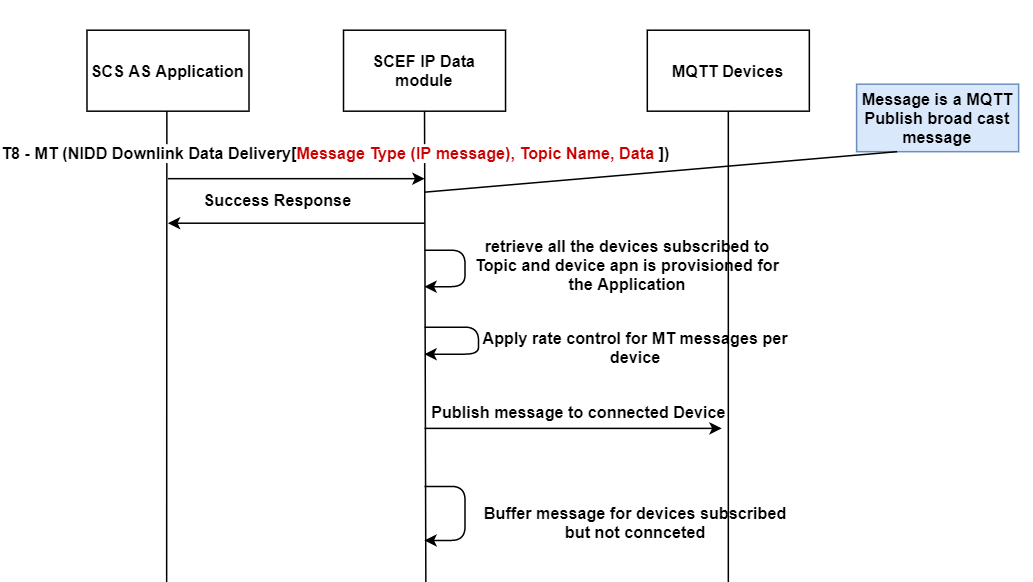

Figure 2-28 Data Delivery (Broadcast) Call Flow

Data Delivery (Broadcast) Call Flow

Table 2-17 Data Delivery (Broadcast) Response Code

Response Code Reason
200 Successful
500 Processing error

Note:

When a device reaches the allowed apn rate control limit, messages are not sent for that corresponding device until the completion of configured apn rate control period.
