C Un-Inhibit A and B Level Replication on C-Level Servers

Perform the following procedure to Un-inhibit A and B level replication on all C Level servers:

Note:

If this procedure fails, contact My Oracle Support (MOS).

1. Log in to the Active NOAM server through SSH as admusr user.
2. Un-Inhibit replication on all C level Servers:
   1. Run the following command:

      $ for i in $(iqt -p -z -h -fhostName NodeInfo where
      "nodeId like 'C*' and siteId='<NE name of the site>'");
      do iset -finhibitRepPlans='' NodeInfo where
      "nodeName='$i'"; done

      Note:

      To find the site's NE name, go to Active NOAM GUI and navigate to Configuration and Server Groups tab.

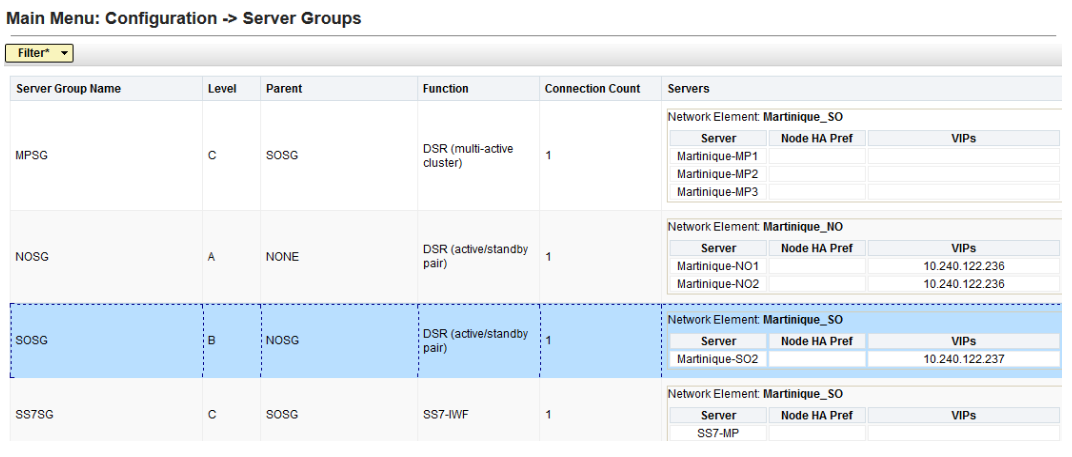

      For more information, refer the below screenshot:

      Figure C-1 Group-server








3. After running above steps to un-inhibit replication on MP(s), no alarms on GUI would be raised informing that replication on MP is disabled.

   Verification of replication un-inhibition on MPs can be done by analyzing NodeInfo output. InhibitRepPlans field for all the MP servers for the selected site example: Site SO_HPC03 shall be set as empty.

   Perform the following command:

   $ sudo iqt NodeInfo
   Expected output:
   nodeId     nodeName hostName nodeCapability inhibitRepPlans siteId excludeTables
   A1386.099     NO1     NO1     Active                         NO_HPC03
   B1754.109     SO1     SO1     Active                         SO_HPC03
   C2254.131     MP2     MP2     Active                         SO_HPC03
   C2254.233     MP1     MP1     Active                         SO_HPC03
