D Inhibit A and B Level Replication on C-Level Servers (When Active, Standby and Spare SOAMs are lost)

Perform the following procedure to inhibit A and B level replication on all C level servers of this site (when Active, Standby and Spare SOAMS are lost):

Note:

If this procedure fails, contact My Oracle Support (MOS).

1. Log in to the Active NOAM server through SSH as admusr user.
2. Inhibit replication on all C level Servers:
   1. Run the script (if available) from:

      /usr/TKLC/dsr/tools/InhibitReplicationToCLevel.sh

      /usr/TKLC/dsr/tools/InhibitReplicationToCLevel.sh --replication=inhibit -- SO_SG_Name=<SOAM server group name>

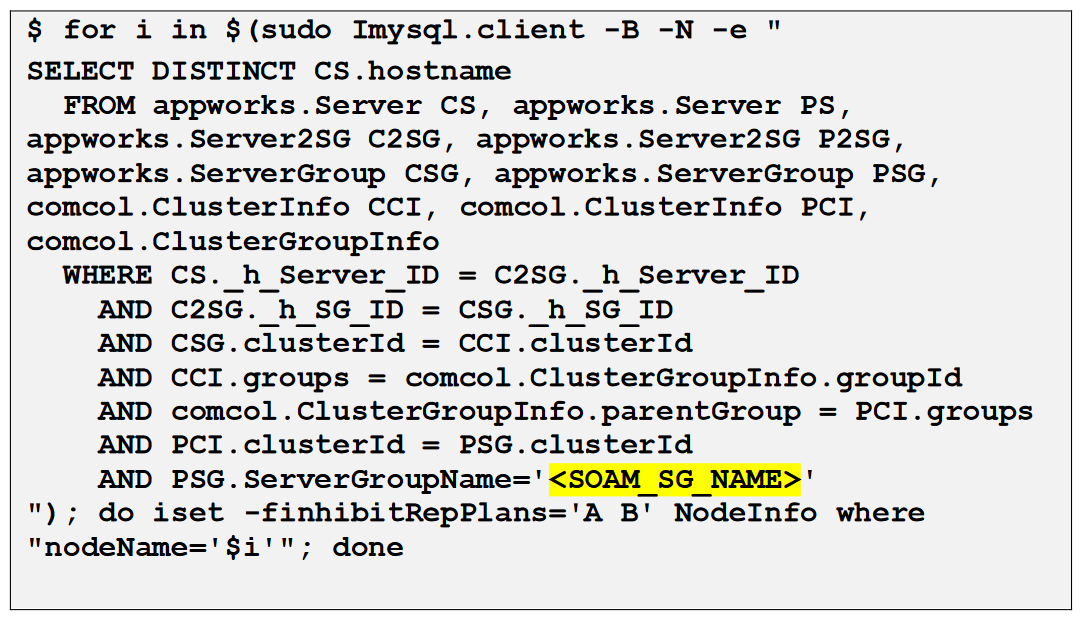

   If script doesn't exist run the below command manually (if above mentioned script is not present in the specific path):

   Figure D-1 SOAM server group name









   Note:

   To find the site's SOAM_SG_NAME, go to Active NOAM GUI and navigate to Configuration and Server Groups tab.

   For more information refer to the following screenshot:

   Figure D-2 Server groups









   No warnings would appear on the GUI indicating that replication on MP is disabled after completing the previously stated procedures to un-inhibit replication on MP(s).

   Verification of replication un-inhibition on MPs can be done by analyzing NodeInfo output. InhibitRepPlans field for all the MP servers for the selected server group example: Server group SO_SG shall be set as ‘ ’:

3. Perform the following command manually:

   Figure D-3 Nodeinfo
