3.11.4 22503 - DSR Application Answer Message Queue Utilization
- Alarm Group:
- APPL
- Description:
- The DSR Application Answer Message Queue Utilization is approaching its maximum capacity.
- Severity:
- Minor, Major, Critical
- Instance:
- <Metric ID>, <DSR
Application Name>
Note:
The value for Metric ID for this alarm varies (RxPdraAnswerMsgQueue, RxCpaAnswerMsgQueueor, or RxDcaRequestMsgQueue[<DcaDalId.dalId>], for example) depending on which DSR application generates the alarm (CPA, DCA, FABR, Policy DRA, RBAR, etc.). Use the ID that corresponds to the specific DSR application in use.Note:
The value for the DSR Application Name varies depending on the DSR application generating the alarm (CPA, PCA, FABR, Policy DRA, RBAR, DCA, etc.). Use the name that corresponds to the specific DSR application in use. - HA Score:
- Normal
- Auto Clear Seconds:
- 0 (zero)
- OID:
- eagleXgDiameterDsrApplicationAnswerQueueUtilNotify
- Cause:
-
Alarm #22503 raises:
- When DSR Application AnswerMessage Queue Utilization is approaching its maximum capacity.
- If this problem persists and the queue reaches 100% utilization, all new ingress Answer messages will be discarded.
- Diagnostic Information:
- To get further information regarding this issue:

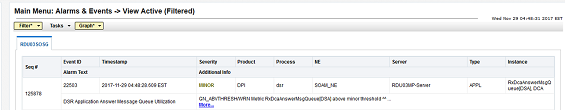

- Examine the alarm
log from
Main
Menu > Alarms & Events on the active SOAM server.
- This alarm should not occur when no other congestion alarms are asserted.
- Examine the alarm
log from
Main
Menu > Alarms & Events on the active SOAM server.
Recovery:
- Application Routing might be mis-configured and is sending too much traffic to the DSR application. Verify the configuration by selecting in the SO GUI.
- If no additional congestion alarms are asserted, the DSR application task might be experiencing a problem that is preventing it from processing message from its Answer Message Queue. Examine the Alarm log in Alarms & Events on the active SOAM server.
- If the problem persists, it is recommended to contact My Oracle Support.
