2.2 Exporting Configuration Data on DSR 8.6.X

Export all the configuration data that is currently present on both NOAM and SOAM of 8.6.x DSR system.

Supported Applications to Export

Table 2-2 List of Supported Applications to Export on DSR NOAM

Keyword	Application Name
Diameter	Diameter
RADIUS	Radius
SBR	Subscriber Binding Repository
DCA	Diameter Custom Application
PCA	Policy and Charging Application

Table 2-3 List of Supported Applications to Export on DSR SOAM

Keyword	Application Name
Diameter	Diameter
IPFE	IP Front End
EIR	Equipment Identity Register
RADIUS	Radius
DCA	Diameter Custom Application
FABR	Full Address Based Resolution
PCA	Policy and Charging Application
RBAR	Range Based Address Resolution

Perform the following procedure to export configuration CSV file from DSR NOAM and SOAM.

1. Log in to DSR 8.6.X Active NOAM/SOAM GUI.
2. Navigate to Diameter Common from Main Menu, then select Export.

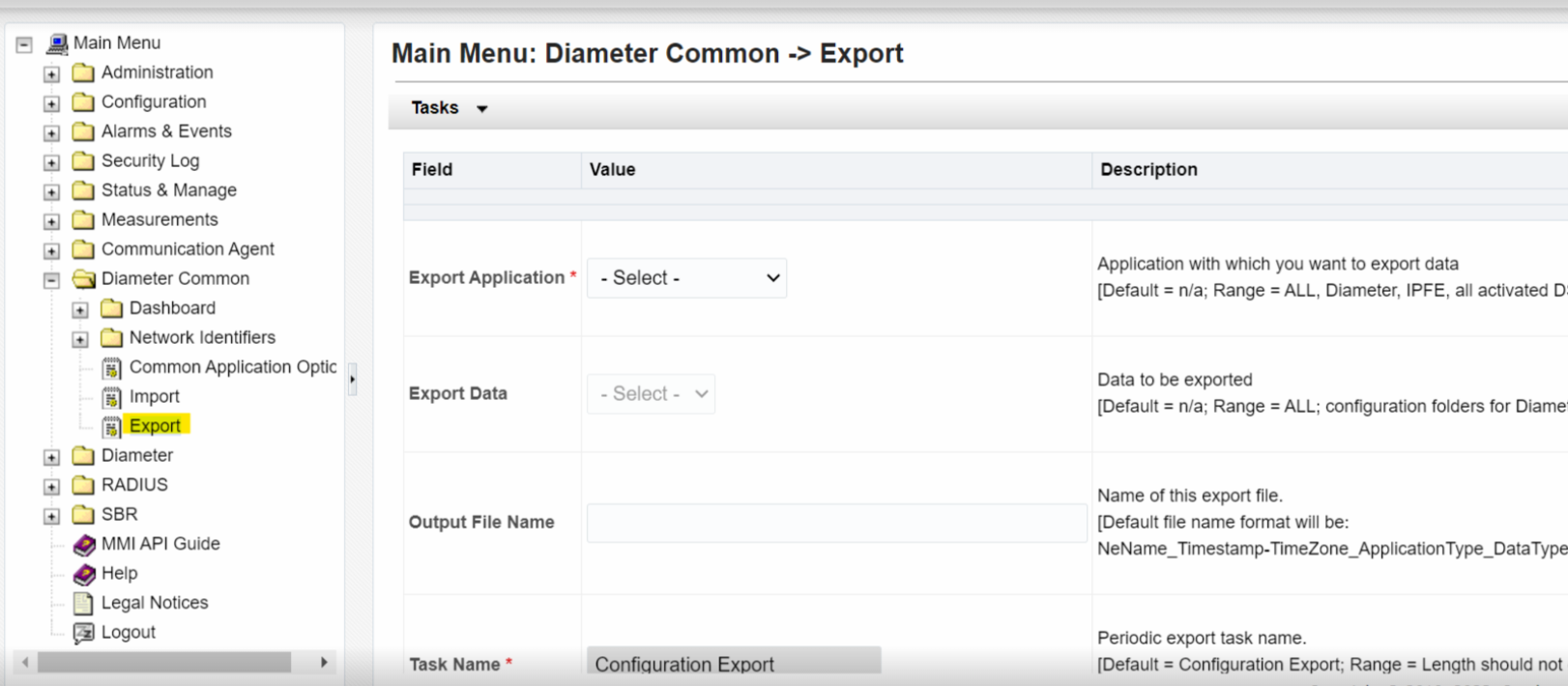

   Figure 2-1 Exporting Diameter Common on NOAM

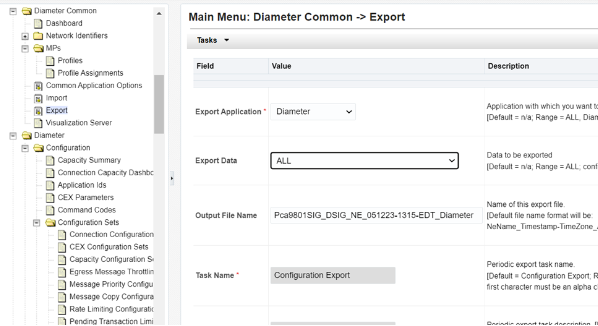

   Figure 2-2 Exporting Diameter Common on SOAM








3. Update the required values for all the fields as mentioned in the following table and click Ok to confirm the configuration.

   Table 2-4 Required Values to Export

   Field Name	Value
   Export Application	Select the required application from the drop-down list.
   Export Data	Select All to export all the configuration csv files of the selected application. Else, it exports the configuration csv file to the particular table name selected.
   Export Directory	Select Export Server Directory or File Management Directory. Note: Recommended value to use is Export Server Directory. The supported directory paths: Export Server Directory Path: /var/TKLC/db/filemgmt/export/<host_name>/DSR/<Application_name> File Management Directory Path: /var/TKLC/db/filemgmt
   Export Frequency	Select value “One”.
