3.3.2.1 Ladder Diagram
The Ladder Diagram shows the TTR events in graphical form, providing an additional form of information shown in the TTR Event panel. Additionally, ProTrace will process and display Client Redirect events when received.

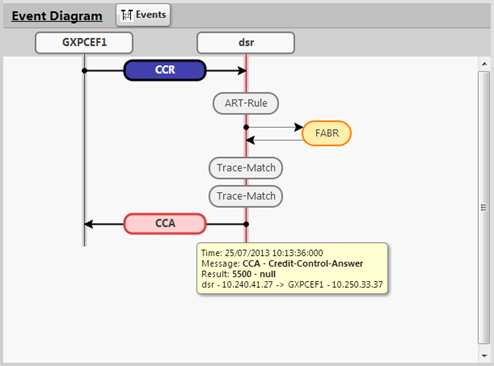

Figure 3-9 Ladder Diagram
The user can hover or click on a bubble of the ladder diagram which may show information about that particular bubble in the Diameter Full Decoding Panel.
The user can also click Toggle Event Table to view events in tabular form, which also allows for a selected row to appear in the Diameter Full Decoding Panel.
Table 3-2 defines how the TTR events are visualized in the ladder diagram:
Table 3-2 Ladder Diagram Visualization
| Event Type | Event Scope | Event Diagram Visualization |
|---|---|---|
| Request Message Sent/Received | IR, ER | Blue bubble with arrow from source node to destination node |
| Answer Message Sent or Received with Success Result Code (RC< 3000) | IA, EA | Green bubble with arrow from source node to destination node |
| Answer Message Sent or Received with Success Result Code (RC >= 3000) | IA, EA | Red bubble with arrow from source node to destination node |
| Message Created | App Data | Gray bubble on DSR node |
| App Invoked | App | Orange bubble beside DSR node with arrows from DSR to and from Application bubble |
| App Result | App Data | App Result appends a text to the corresponding Application's tooltip |
| App Invocation Failed | IR Data, IA Data | App Invocation Failed makes the corresponding Application bubble red and appends text to its tooltip. |
| Trace Match | IR Data, ER Data, IA Data, EA Data | Gray bubble on DSR node |
| Linked TTR | No visualization | |
| ART Rule Match | IR Data | Gray bubble on DSR node |
| ART Rule Not Match | IR Data | Red bubble on DSR node |
| PRT Rule Match | IR Data | Gray bubble on DSR node |
| PRT Rule Not Match | IR Data | Red bubble on DSR node |
| Unavailability Action | IR Data, IA Data | Unavailability Action makes the previous event bubble red. |
| Route List Selected | IR Data | Gray bubble on DSR node |
| Dest-Host Routing | IR Data | Gray bubble on DSR node |
| Alternate Implicit Routing | Alternate Implicit Routing makes previous metadata bubble red and appends a text in its tooltip. | |
| Route Group Selected | IR Data | Gray bubble on DSR node |
| Mediation Rule Match | IR Data, ER Data, IA Data, EA Data | Gray bubble on DSR node |
| Request Rerouted | IR Data | Gray bubble on DSR node |
| Answer Timeout | IA | Arrow from source node to destination node |
| Answer Matching Failed | IA Data | Red bubble on DSR node |
| Address Resolution Match | App Data | Address Resolution Match appends a text to the corresponding Application bubble. |
| Routing Exception | App Data | Routing Exception appends a text to the corresponding Application bubble. |
| DP Query Sent | App Data | DP Query Sent appends a text to the corresponding Application bubble. |
| DP Response Received | App Data | DP Response Received appends a text to the corresponding Application bubble. |
| DP Query Failure | App Data | DP Query Failure appends a text to the corresponding Application bubble. |
| DP Response Timeout | App Data | DP Response Timeout appends a text to the corresponding Application bubble. |
| SBR Query Sent | App Data | SBR Query Sent appends a text to the corresponding Application bubble. |
| SBR Response Received | App Data | SBR Response Received appends a text to the corresponding Application bubble. |
| SBR Query Failure | App Data | SBR Query Failure appends a text to the corresponding Application bubble. |
| SBR Response Timeout | App Data | SBR Response Timeout appends a text to the corresponding Application bubble. |
| Message Copied | IA | MSG-Copied bubble appears on DSR node |
| Copied Message | IG (Internally Generated) | Copied-MSG bubble appears on DSR node |
| Message Copy Triggered | IR, ER | MC-Triggered bubble appears on DSR node |
| Request Redirected | IR Data | Gray bubble on DSR node |
| Diameter Request processing routine invoked | IR Data | Diameter Request processing routine invoked appends a text to the corresponding Application bubble. |
| Diameter Answer processing routine invoked | IR Data | Diameter Answer processing routine invoked appends a text to the corresponding Application bubble. |
| U-SBR Query send | IR Data | U-SBR Query appends a text to the corresponding Application bubble. |
| Callback invoked | IR Data | Callback invoked appends a text to the corresponding Application bubble. |
| Subroutine name not found | IR Data | Subroutine name not found appends a text to the corresponding Application bubble |
| Runtime error | IR Data | Runtime error appends a text to the corresponding Application bubble |
| Debug message | IR Data | Debug message appends a text to the corresponding Application bubble |
| U-SBR Query Result received | IR Data | U-SBR Query Result received appends a text to the corresponding Application bubble |
| U-SBR Query send failed | IR Data | U-SBR Query send Failed appends a text to the corresponding Application bubble |
