4.2.1 Promoting the DR NOAM from Secondary to Primary (Graceful)

Perform the following steps in DR NOAM to promote the DR NOAM from Secondary to Primary.

1. Establish an SSH session to the SDS/DSR DR NOAM XMI IP address, access the command prompt (CLI) and log in to the server as admusr user.

   msvnc-sds-NO-b login: admusr
   Password: <admusr_password>

2. To check NOAM Status of the server, run the following command on the Active NOAM.

   $ ha.mystate
   [admusr@msvnc-sds-NO-b ~]$ ha.mystate








3. Verify that the current value for myClusterRole is Secondary.

   [admusr@mrsvnc-sds-NO-b ~]$ top.myrole
   myNodeId=A1103.165
   myParentClusters=(  )
   myClusterRole=Secondary
   myRecognizedPrimary=A1103
   myRecognizedSecondary=Unknown
   [admusr@mrsvnc-sds-NO-b ~]$

4. Set the value for myClusterRole to Primary.

   [admusr@mrsvnc-sds-NO-b ~]$ top.setPrimary
   - Using my cluster: A1103
   - New Primary Timestamp: 03/03/17 00:50:40.986
   - Updating To A0907.060: rlghnc-sds-NO-a
   - Updating To A0907.113: rlghnc-sds-QS
   - Updating To A0907.121: rlghnc-sds-NO-b
   - Updating To A1103.165: mrsvnc-sds-NO-b
   - Updating To A1103.223: mrsvnc-sds-NO-a
   [admusr@mrsvnc-sds-NO-b ~]$

5. Verify that the value for myClusterRole is now Primary.

   [admusr@mrsvnc-sds-NO-b ~]$ top.myrole
   myNodeId=A1103.165
   myParentClusters=(  )
   myClusterRole=Primary
   myRecognizedPrimary=A1103
   myRecognizedSecondary=A0907
   [admusr@mrsvnc-sds-NO-b ~]$

   Note:

   Perform the next steps in New Primary NOAM VIP (former DR).
6. Launch an HTML5 compliant browser and connect to the XMI Virtual IP address (VIP) assigned to Primary Active NOAM site.

   If a Certificate Error is received, click on Continue to this website (not recommended) link.

   Figure 4-6 Certificate Error









   The login screen appears.

7. Log in to the GUI using a user account with administrator privileges.







8. Go to Main Menu, and then Status & Manage, and then HA.

   Figure 4-7 Main Menu - HA








9. Use the Server hostname shown in the bottom banner for the ACTIVE NETWORK OAM&P to identify the current Primary NOAM site.








   Note:

   The server hostname of the ACTIVE NETWORK OAM&P identifies the current Primary NOAM site. For example, mrsvnc.

   Now that we know which NOAM site is Primary, identify the Primary Active, Primary Standby, Secondary Active (DR), and Secondary Standby NOAM Servers.



   Note:

   Do not skip the following step.

   Active/Standby states for each NOAM server must be recorded as it is Critical that the SW on each server be restarted in the exact order specified in Steps 12 and 13 of this procedure.

10. Based on the information identified in the previous step, record the hostnames of the Primary Active, Primary Standby, Secondary Active (DR), and Secondary Standby NOAM Servers.

    Site_1 = Primary_NOAM (Active)     = _________________________
    Site_1 = Primary_NOAM (Standby)  = _________________________
    Site_2 = DR_NOAM (Active)     = _________________________
    Site_2 = DR_NOAM (Standby)  = _________________________

11. Go to Main Menu, and then Status & Manage, and then Server.








    Based on the information recorded in Step 10 of this procedure, perform the below sub-steps on the newly promoted Primary NOAM Active Server (Site_2).

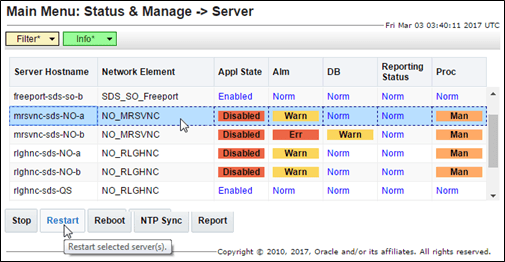

12. Select the Server in the right panel (highlight will occur) and click Restart in the right panel.








    Click OK in the pop-up confirmation box.

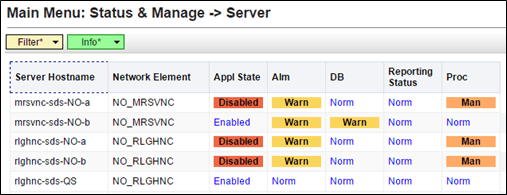

13. After the screen refresh, verify that the server now shows an Appl State value of Enabled and a Proc value of Norm.








    Note:

    • Restart the SW on the Primary NOAM Standby Server, by repeating Steps 12 - 13 of this Procedure for the Primary NOAM Standby Server.
    • Restart the SW on the DR NOAM Standby Server, by repeating Steps 12 - 13 of this Procedure for the DR NOAM Standby Server.
    • Restart the SW on the DR NOAM Active Server, by repeating Steps 12 - 13 of this Procedure for the DR NOAM Active Server.
    • For SDS systems, this procedure is completed. Return to NOAM Failover Process Flowchart for next steps.
    • For DSR systems only, perform the next steps in this procedure.
14. Identify the clusterId values for the myRecognizedPrimary and the myRecognizedSecondary. For example, Axxxx.

    [admusr@dominica-dr-noam-b ~]$ top.myrole
    myNodeId=A0568.058
    myParentClusters=(  )
    myClusterRole=Primary
    myRecognizedPrimary=A0568
    myRecognizedSecondary=A1667
    [admusr@dominica-dr-noam-b ~]$

15. Record the clusterId values for the myRecognizedPrimary and the myRecognizedSecondary in the space provided.

    myRecognizedPrimary (clusterId) = ________________________
    myRecognizedSecondary (clusterId) = ________________________

16. Identify which A-Level clusterId (for example, Axxxx) is located in the HaClusterResourceCfg table.

    [admusr@dominica-dr-noam-b ~]$ iqt -p HaClusterResourceCfg
    cluster resource optional
    A0568 DSROAM_Proc Yes
    C0804 DSROAM_Proc Yes
    C1223 DSROAM_Proc Yes
    C2346 DSROAM_Proc Yes
    C3147 DSROAM_Proc Yes
    C3316 DSROAM_Proc Yes
    [admusr@dominica-dr-noam-b ~]$

17. If the A-Level clusterId located in the HaClusterResourceCfg table is the myRecognizedPrimary value recorded in Step 15 of this procedure, delete the entry.
    For example:

    $ irem HaClusterResourceCfg where "cluster='<myRecognizedPrimary_clusterId>'"
    [admusr@dominica-dr-noam-b ~]$ irem HaClusterResourceCfg where "cluster='A0568'" === deleted 1 records ===
    [admusr@dominica-dr-noam-b ~]$

    If the A-Level clusterId is not located there, then continue to the next step.
18. Add an entry to the HaClusterResourceCfg table for the myRecognizedSecondary value recorded in Step 15 of this procedure.
    For example:

    $ echo "<myRecognizedSecondary_clusterId>|DSROAM_Proc|Yes" | iload -ha -xun -fcluster -fresource -foptional HaClusterResourceCfg
    [admusr@dominica-dr-noam-b ~]$ echo "A1667|DSROAM_Proc|Yes" | iload -ha -xun -fcluster -fresource -foptional HaClusterResourceCfg
    [admusr@dominica-dr-noam-b ~]$

19. Verify that the HaClusterResourceCfg table now displays an entry for the myRecognizedSecondary value recorded in Step 15 of this procedure.

    [admusr@dominica-dr-noam-b ~]$ iqt -p HaClusterResourceCfg
    cluster resource optional
    A1667 DSROAM_Proc Yes
    C0804 DSROAM_Proc Yes
    C1223 DSROAM_Proc Yes
    C2346 DSROAM_Proc Yes
    C3147 DSROAM_Proc Yes
    C3316 DSROAM_Proc Yes
    [admusr@dominica-dr-noam-b ~]$

    Note:

    Once this procedure is completed, return to Figure 2-1.
