6.1.2 Trace List

The Trace List displays all traces configured in DSR.

Trace List tool toolbar

The toolbar provides a means of selecting and organizing traces.

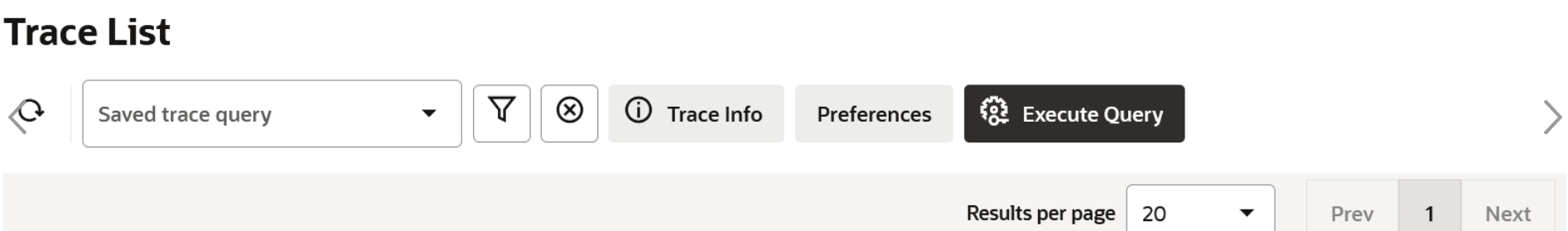

Figure 6-5 Trace list tool bar

The following table describes the fields in the Trace List:

Table 6-1 Trace list tool bar

Field	Description
Results per page	Displays the total number of traces per page.
Prev page	Opens the previous page.
Next	Opens the next page of traces.
Refresh	Reloads the trace list.
Select filter	Allows the user to select the queries that are saved.
Saved trace query	Allows the user to select the queries that are saved.
Filter	Opens the saved queries page, where you can filter the list of queries.
Delete selected trace	Allows the user to delete a trace.
Trace info	Allows a user to view the summary of the selected trace from the trace list.
Execute Query	Allows the user to view the ladder diagram of the transactions and view the payload of message routing, and also allows to export the Trace in HTML and PCAP format.

Table 6-2 Trace List Table Fields

Field	Description
Trace name	A name that uniquely identifies the trace.
Status	The completion status of the trace, which can be either In-progress or Completed.
Trace Type	The type of trace can either be site or network based.
Start time	The start date and time of the trace.
Stop time	The end date and time of the trace.
TTR count	The number of messages matched in a particular trace.
