6.1.1 Viewing Traces

Perform the following procedure to view traces on the IDIH GUI:

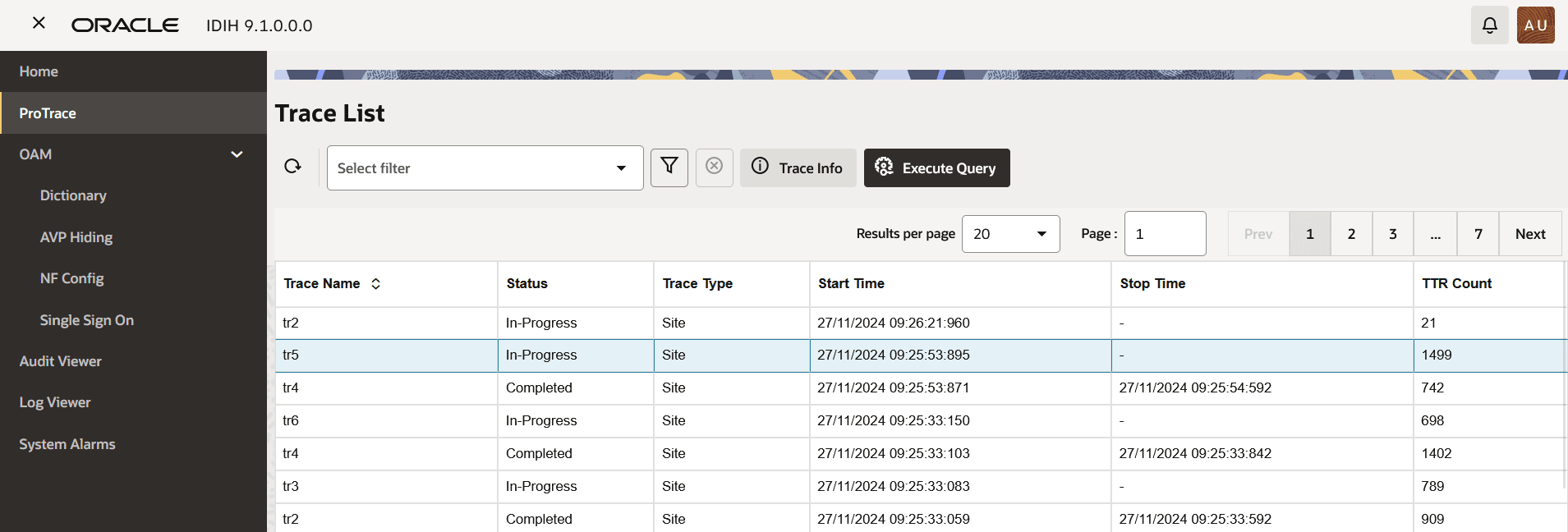

1. On the IDIH GUI, in the left navigation pane, click the ProTrace tab. The following page appears with the list of traces.

   Figure 6-1 Viewing Traces








2. To view the summary of a trace, click the required trace from the Trace Name column.

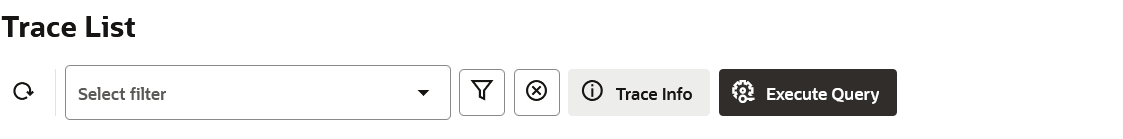

3. In the upper center of the page, click Trace info.

   Figure 6-2 Trace Info

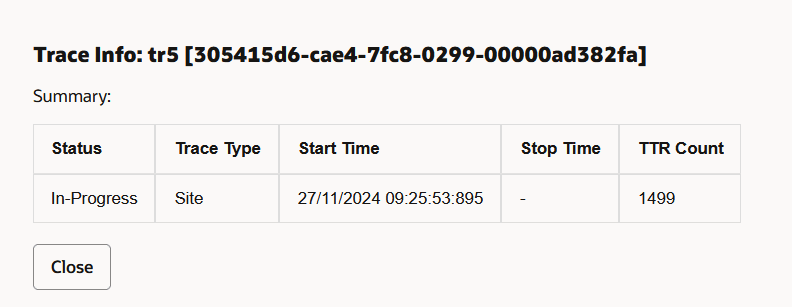

   The summary of the trace appears on the screen.

   Figure 6-3 Trace summary









Note:

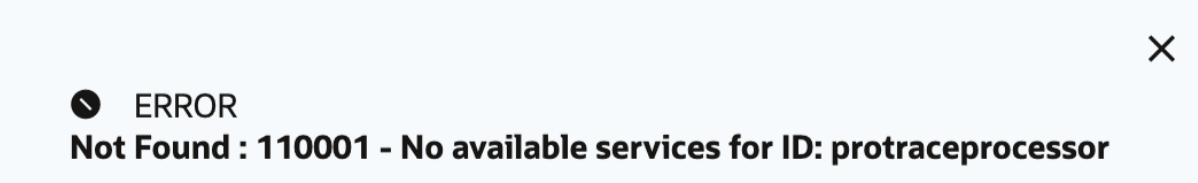

In case you encounter the following error, close all the multiple IDIH sessions and try after certain time.

Figure 6-4 Error
