Architecture You Can Use to Customize Siebel Open UI

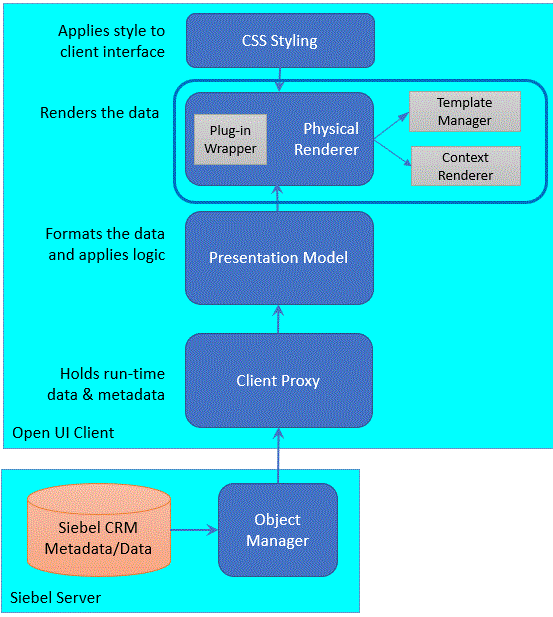

The following figure illustrates the basic architecture that you can use to customize Siebel Open UI and it contains the following key components:

  1. On the Siebel Open UI Client:

    • CSS Styling applies style to the client interface.

    • The Physical Renderer renders the data (using the Template Manager, Plug-in Wrapper and Builder, and Context Renderer).

    • The Presentation Model formats the data and applies the logic.

    • The Client Proxy holds runtime data and metadata.

  2. The Siebel Server holds the Object Manager and Siebel CRM Metadata/Data.

Architecture You Can Use to Customize Siebel Open UI: This image is described in the surrounding text.

For an overview of how Siebel Open UI uses the presentation model and physical renderer, see How Siebel CRM Renders Div Containers on Siebel Servers.
