Creating Integration Objects in Siebel Tools

In order to use the Siebel Connector for IAA-XML you need to build three different types of integration objects:

You use the Integration Object Builder in Siebel Tools to create these integration objects. The Builder first walks you through steps for selecting your project, business service, and .DTD file and then provides you with the option of creating all three types of integration objects or just the ones you need.

Note: All the integration objects used in the following procedures are included in the Sample database.

To Create Integration Object

  1. Start Siebel Tools.

  2. Lock the appropriate project.

  3. Choose File > New Object... to display the New Object Wizards dialog.

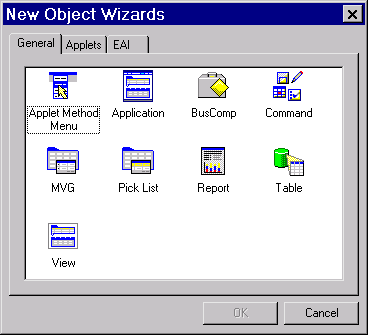

    New Object Wizard. This image is described in surrounding text.

  4. In the New Object Wizards dialog, select the EAI tab and double click the Integration Object icon.

    The Integration Object Builder appears.


    Integration Object Builder. This image is described in surrounding text.

  5. In the Integration Object Builder, fill in the two fields in the dialog box:

    1. Select the project you locked in step 2.

    2. Select the FINS IAA Wizard Service as your source system of the integration object.

  6. Click Next.

    The FINS IAA Wizard Service dialog box appears.

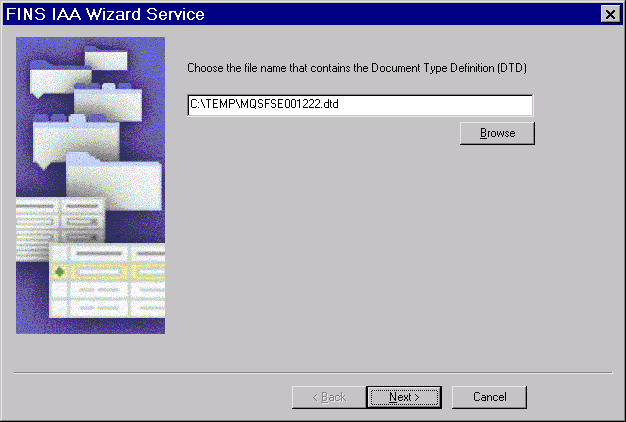

    FINS IAA Wizard Service Dialog Box. This image is described in surrounding text.

  7. In the FINS IAA Wizard Service dialog, select the .DTD file you want the wizard to use and click Next to build the envelope integration object. For details, see Creating IAA Envelope Integration Objects.

    Note: The .DTD file you use to create your integration objects has to comply with IAA-XML standard.
