Event Tax Administration

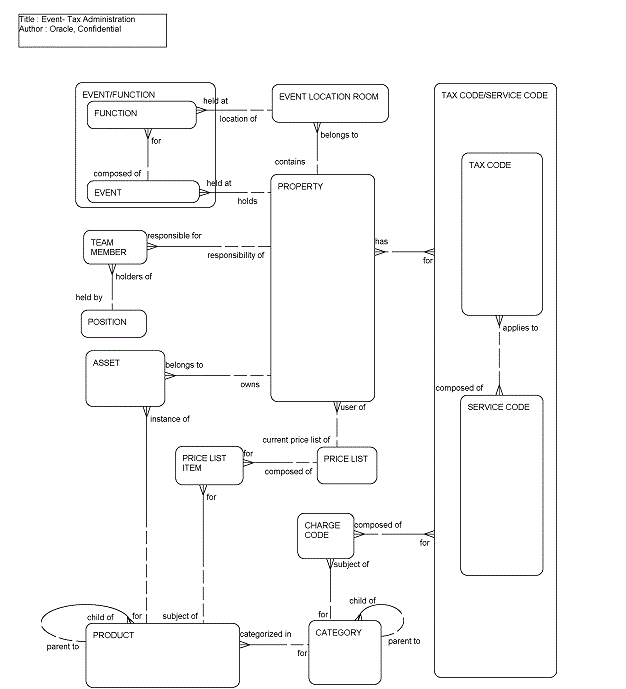

This ERD (see the following figure) illustrates how the Siebel Hospitality application supports tax and service charge calculation for invoices. An event is hosted at a property such as a hotel or convention center. Event functions and associated subfunctions are conducted in rooms at the property. A team of events managers and operations staff at the property work together to plan and execute the event. The event functions use assets that are specific instances of products at each property. Each product is associated with a category and subcategory. Both categories and subcategories are associated with charge codes. Each charge code is composed of taxes and service charges, which might be taxable. The taxes and service charges linked with the charge code apply to the product.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Asset	S_ASSET
Category	S_CTLG_CAT
Charge Code	S_EVT_CHRG_LST
Event/Function	S_SRC
Event Location Room	S_EVTLOC_ROOM
Position	S_POSTN
Price List	S_PRI_LST
Price List Item	S_PRI_LST_ITM
Product	S_PROD_INT
Property	S_ORG_EXT, S_PARTY
Tax Code/Service Code	S_PRI_LST
Team Member	S_USER, S_PARTY
