Health Provider and Provider Group

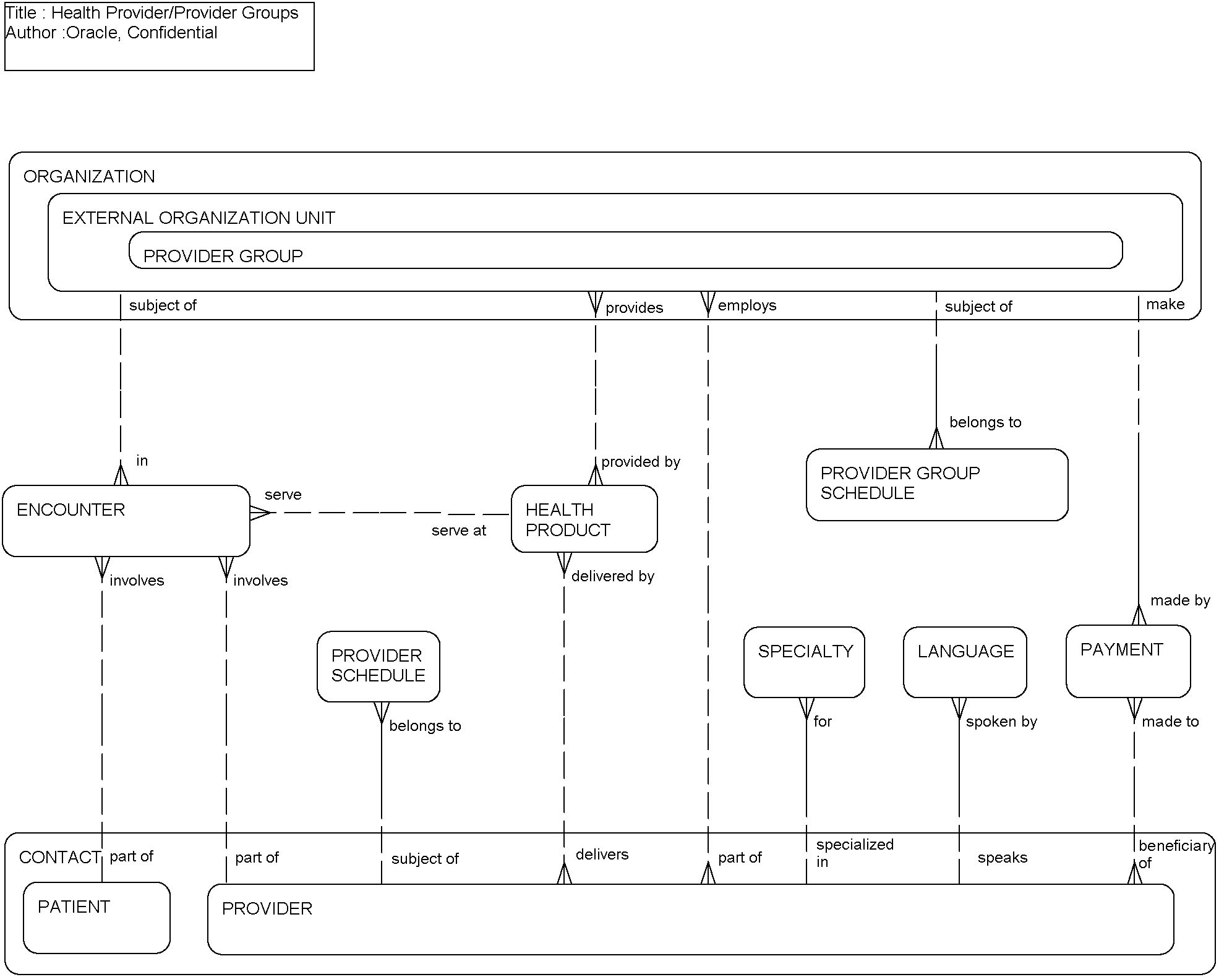

This ERD (see the following figure) illustrates how Siebel Financial Services supports generation of heath-related organizations (such as hospitals) and providers (such as physicians). A provider can be affiliated with one or more organizations and can deliver a health product (a medical service) to a contact or a patient during an encounter. Siebel Financial Services also stores payments made to a provider by an organization, as well as the specialty, language, and schedule of the provider.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Contact	S_CONTACT,S_PARTY
Encounter	S_FN_HLTH_ENCTR
Health Product	S_PROD_INT
Language	S_CONTACT_FNXM
Organization	S_ORG_EXT, S_PARTY
Payment	S_SRC_PAYMENT
Provider Group Schedule	S_ORG_TIME
Provider Schedule	S_CON_LOCTN
Specialty	S_CONTACT_FNXM
