Content Management

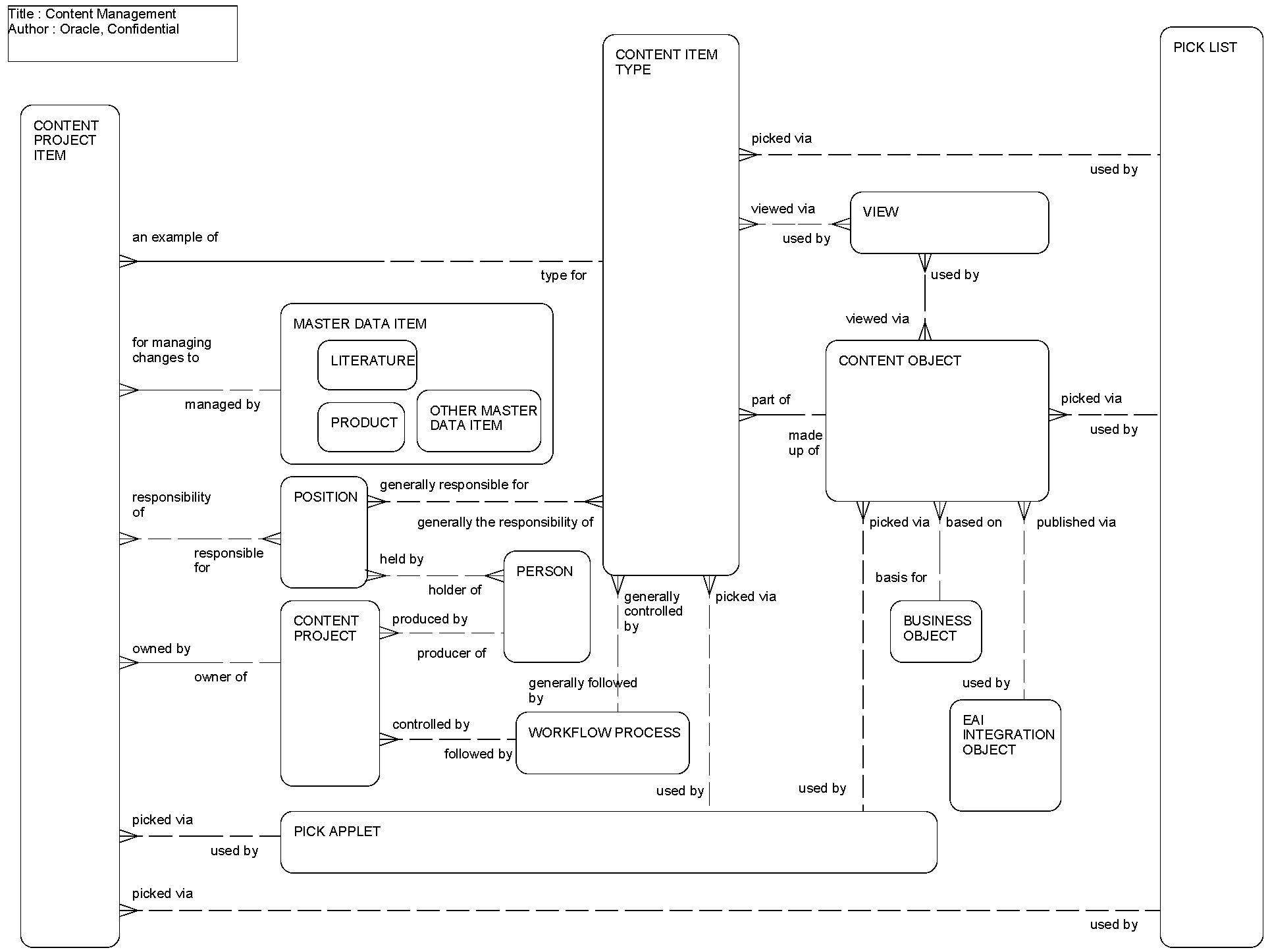

This ERD (see the following figure) illustrates how the Siebel Data Model supports the process of creating and maintaining content through projects. A content project is made up of one or more content project items that represent an item of master data, such as a product definition or an item of literature. Each content project item is an instance of a content item type that is part of a content object. A content object is based on a business object and is published to the production system through an EAI integration object. A workflow process governs the flow of the items in a content project from conception through publication. Each item can be the responsibility of, reviewed by, or approved by one or more Positions.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Content Item Type	S_CONTENT_TYPE
Content Object	S_CONTENT_OBJ
Content Project	S_CONTENT_PROJ
Content Project Item	S_CONTENT_ITEM
Literature	S_LIT
Person	S_CONTACT, S_PARTY
Position	S_POSTN, S_PARTY
Product	S_PROD_INT
