Competency Management System

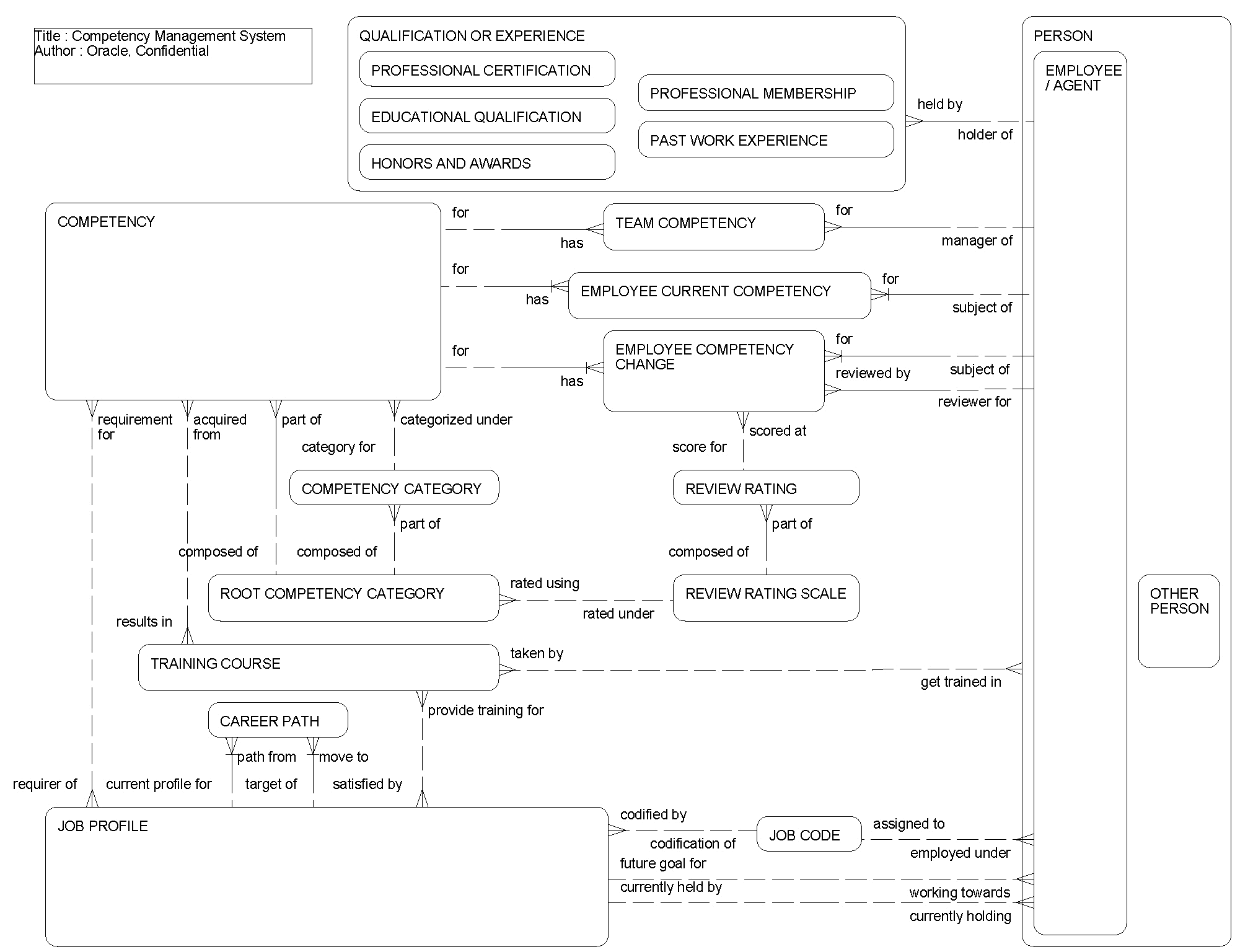

This ERD (see the following figure) illustrates how an organization can define a set of competencies that employees can have or acquire over a period of time and an evaluation of employees' skill levels in those competencies. In addition, information about an employee's past work experience, merits, honors, professional memberships and education qualifications can be maintained. An organization can also define a list of courses and related skills which can be associated with an employee when he or she complete those courses.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Career Path	S_JOB_PRFL_TRNS
Competency, Competency Category, Root Competency Category	S_CMPTNCY
Educational Qualification	S_PER_EDU_QUAL
Employee Competency	S_EMP_CMPTNCY
Employee Competency Change	S_EMP_CMPT_CHG
Employee/Agent	S_EMP_PER
Honors And Awards	S_PER_AWARD
Job Code	S_JOB
Job Profile	S_JOB_PROFILE, S_JOBPRFL_CMPT
Past Work Experience	S_PER_WRK_EXP
Person	S_USER, S_CONTACT
Professional Membership	S_PER_PROF_MBR
Professional Qualification	S_PER_PROF_CERT
Review Rating	S_PERF_RATING
Review Rating Scale	S_PERF_RTNG_SCL
Team Competency	S_TEAM_CMPTNCY
Training Course	S_PROD_INT_CRSE
