Sales Volume Planning

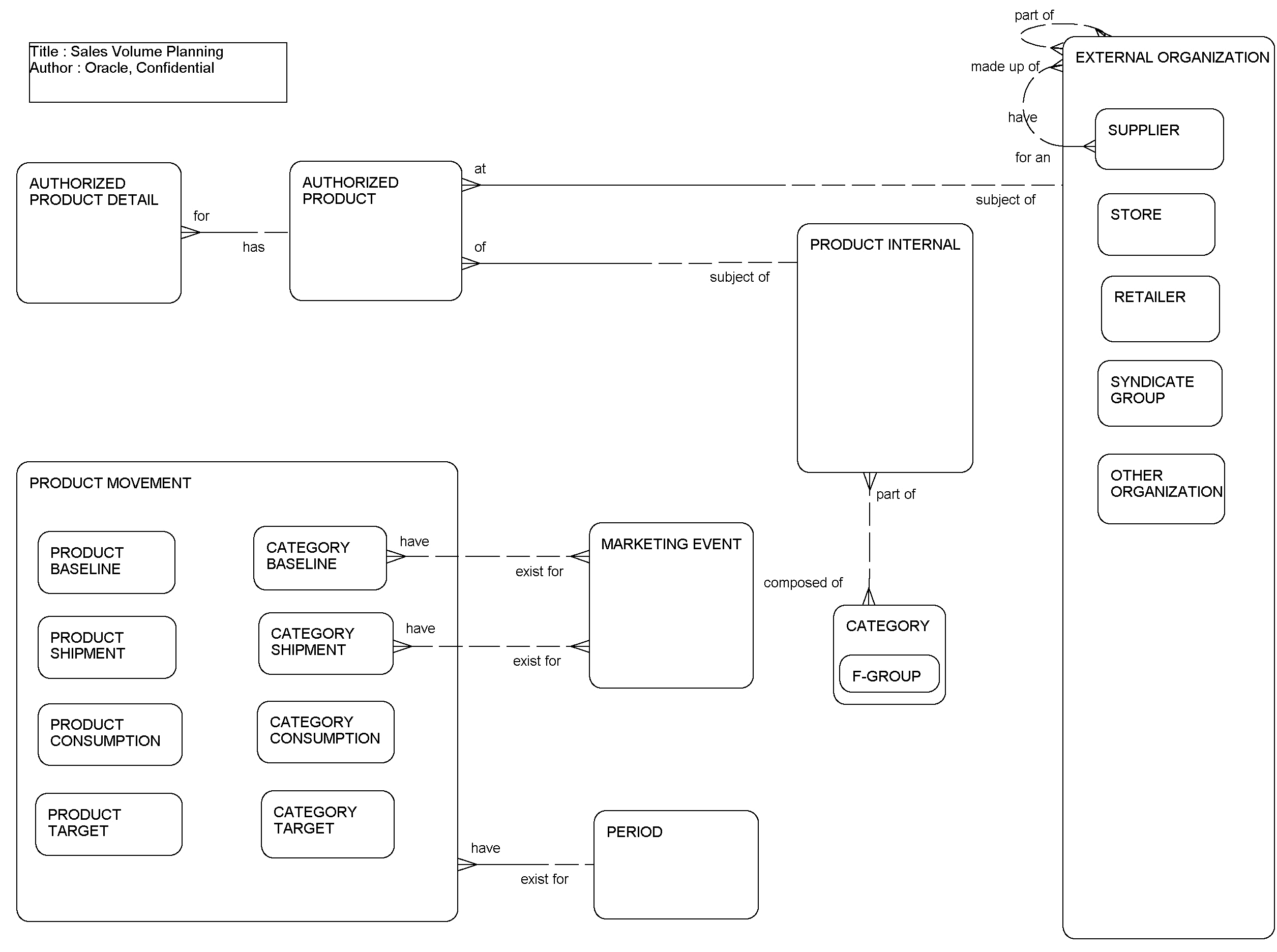

This ERD (see the following figure) illustrates how Siebel Business applications (Consumer Goods) support sales volume planning (SVP). A sales volume plan is the targeted sales volume (cases or currency) for a period. This volume is calculated based on historical data within a period. Algorithms used to calculate the SVP could be a flat percentage change over a period, or it could be a trended volume. While planning, an authorized employee can allocate down an account, or an account product category tree. Prior to allocating, historical data must be aggregated up these trees. After the initial aggregation, allocation and aggregation can occur any number of times until the plan is committed or until historical data within the plan's period is entered into the application.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Authorized Product	S_ORG_PROD
Authorized Product Detail	S_ORG_DIST_LST
Category	S_CTLG_CAT
Category Baseline	S_CG_CAT_BASELN
Consumption Category	S_CG_CAT_CONSUM
Employee	S_CONTACT, S_PARTY
External Organization	S_ORG_EXT, S_PARTY
Internal Product	S_PROD_INT
Marketing Event	S_SRC
Period	S_PERIOD
Planned Volume	S_PROD_BASELINE, S_CG_CAT_BASELN, S_PROD_TARGET, S_CG_CAT_TARGET
Product Baseline	S_PROD_BASELINE
Product Consumption	S_PROD_CONSUME
Product Line	S_PROD_LN
Product Shipment	S_PROD_SHIPMENT
Product Target	S_PROD_TARGET
Sales Volume Planning Action	S_CG_SVP_ACTION
Shipment Category	S_CG_CAT_SHIP
Target Category	S_CG_CAT_TARGET
