Syndicated Data

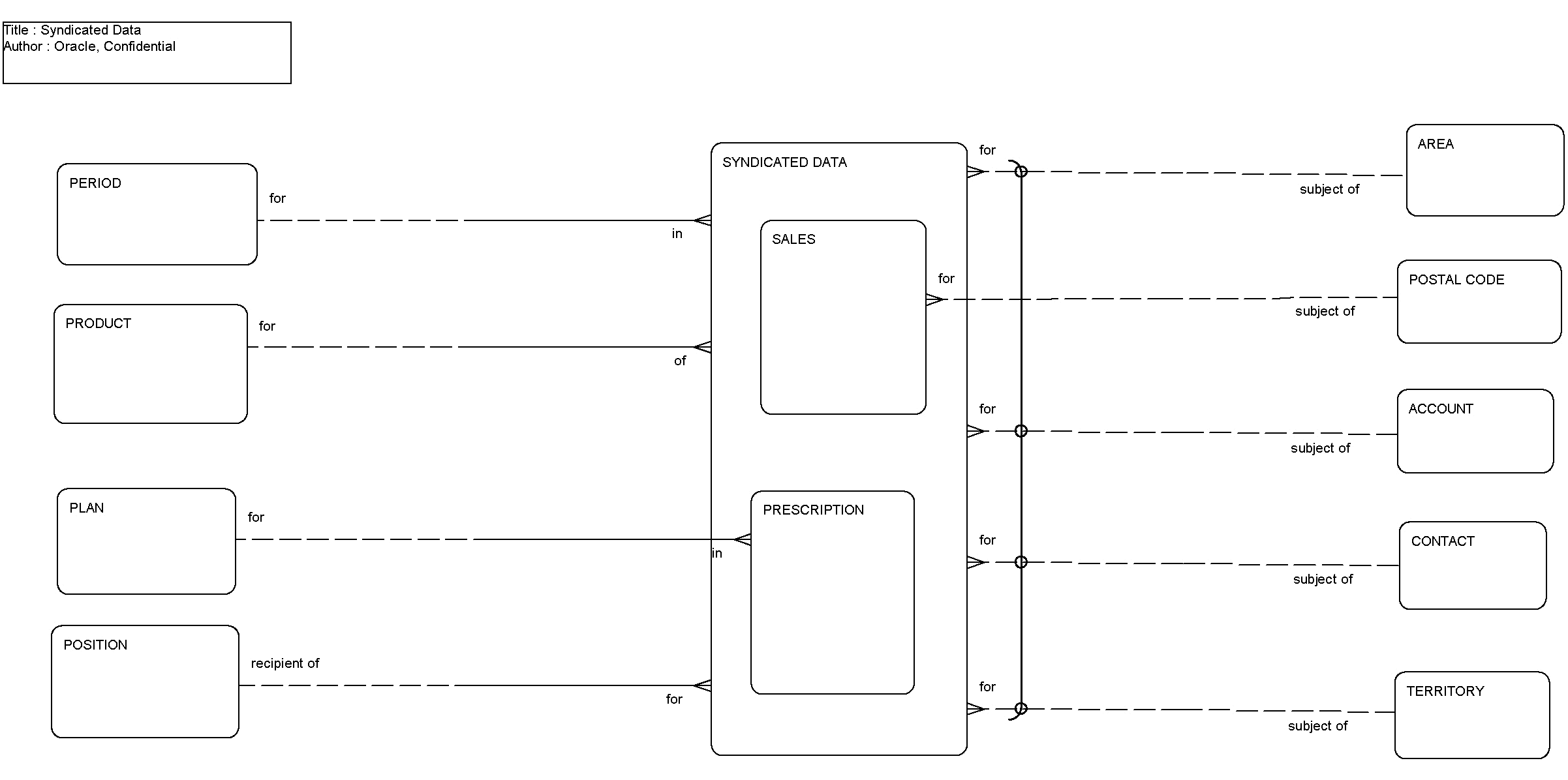

This ERD (see the following figure) illustrates how the syndicated data (sales and prescription information) is associated with a period, plan, account, contact, postal code, territory, and area.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Account	S_ORG_EXT, S_PARTY
Contact	S_CONTACT, S_PARTY
Period	S_PERIOD
Plan	S_INS_PLAN
Position	S_POSTN, S_PARTY
Postal Code	S_ZIPCODE
Product	S_PROD_INT
Region	S_REGION
Syndicated Data	S_SYND_DATA
Territory	S_ASGN_GRP
