Teller Administration

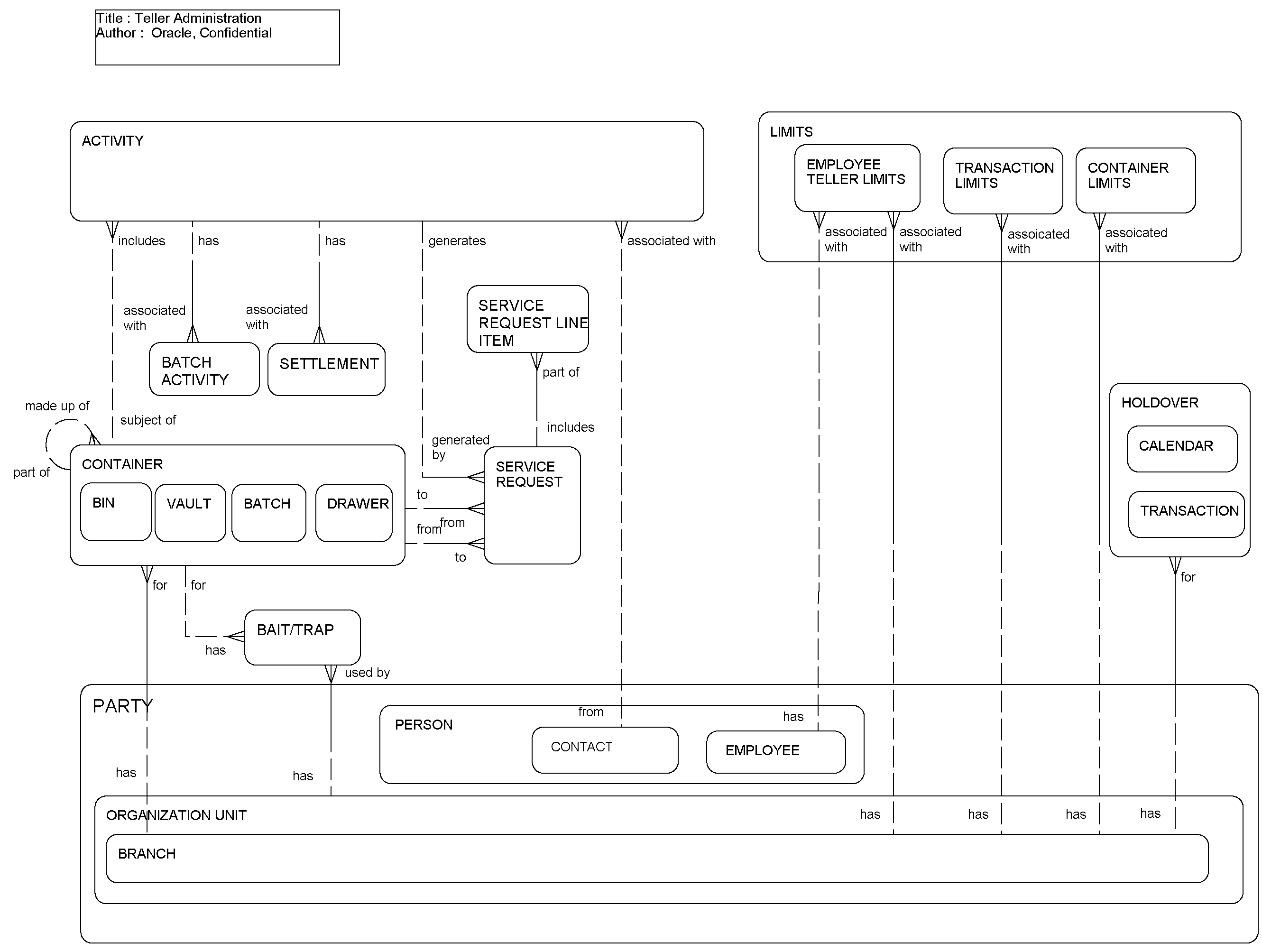

This ERD (see the following figure) illustrates how Siebel Financial Services supports the administration of a tellers activities at a financial institution branch. A set of employee, transaction, and container limits are defined for each branch, as well as a multiple containers. Each teller is associated with a set of containers, where they execute different activities and service requests for the customer.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Activity	S_EVT_ACT
Activity Batch	S_FN_ACT_BATCH
Activity Settle	S_FN_ACT_SETTL
Bait	S_FN_BAIT
Contact	S_CONTACT, S_PARTY
Container	S_FN_CONTAINER
Container Limits	S_FNCONTNR_LMTS
Employee	S_EMP_PER, S_CONTACT, S_PARTY
Employee Teller Limits	S_EMP_TLR_LMTS
Holdover	S_FN_TXN_HLDVR, S_FN_HLDVR_CTF
Organization Unit	S_ORG_EXT, S_PARTY
Person	S_CONTACT, S_PARTY
Service Request	S_SRV_REQ
Transaction Limits	S_FN_TXN_LMTS
