Four Column Form Template

The DotCom Applet Form 4-Column template uses the DotComAppletForm4Col web template. It can do the following:

Define a large number of control placeholders that can span one column, two columns, or all four columns.
Map fields for up to four columns.
Display labels at start of field values.
Display validation errors at the start of the form.
Use ID 91 to add text that spans all four columns.

The following image includes the generic layout that this template uses.

Generic Layout of the DotComAppletForm4Col Template. In this image of a template, there is a spaceholder at the beginning of the image that spans all columns. After that, there are four columns of label and field pairs. At the end of the form, there is one row of label and field pairs that each have a field that spans two columns. At the end of the form, there is a field that spans all columns.

The following table includes an example of this template.

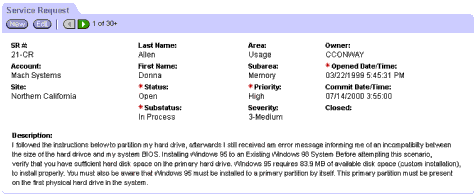

Example of the Form/4 Column Applet Template. In this image of a Service Request form, there are four columns with label and field pairs. At the end of the form, there is a field labeled Description. Text entered in this field spans all four columns.

This template uses the following structure:

DotComAppletForm4Col
   CCApplet_NamedSpacer
   CCTitle_Named
      CCTitle
   CCTogglebar_drop
   dCCFormButtonsTop
      dCCButtons_Form
      CCRecordNav
      CCTogglebar_drop
      CCFormButtonsTopRight
   CCForm4ColBody

The following table lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

ID	Placeholder
2	Control
91	Inside Applet Help Text
106	Query
107	Go (ExecuteQuery)
108	Cancel (Query)
109 through 110	Control
121	First
122	Previous
123	Next
124	Last
131	New
132	Edit
133	Delete
134	Reset
135	Cancel
136	Save
139 through 143	Control
150 through 152	Control
157 through 158	Control
160 through 164	Control
1001 through 1009	FormSection
1020	FormSection
1296 through 1300	Required or Label or 2-Column Wide Field
1301 through 1310	Required or Label
1311 through 1315	Required or Label or 2-Column Wide Field
1316 through 1330	Required or Label
1331 through 1335	Required or Label or 2-Column Wide Field
1336 through 1340	Required or Label or 4-Column Wide Field
1360 through 1374	Required or Label
1500	Required or Legend
1801 through 1810	Required or Label
1816 through 1830	Required or Label
1860 through 1874	Required or Label
2001 through 2009	FormSection
2296 through 2300	Required or Label or 2-Column Wide Field
2301 through 2310	Required or Label
2316 through 2330	Required or Label
2331 through 2335	Required or Label or 2-Column Wide Field
2360 through 2374	Required or Label
2801 through 2810	Required or Label
2811 through 2815	Required or Label or 2-Column Wide Field
2816 through 2830	Required or Label
2860 through 2874	Required or Label
