Item Detail Form Template

The DotCom Applet Form Item Detail template uses the DotComAppletFormItemDetail web template. It uses ID 1301 to map the product title and ID 1300 to map the product image.

The following image includes the generic layout that this template uses.

Generic Layout of the DotComAppletFormItemDetail Template. This image of a generic template, has three columns. The first column has a placeholder for an image followed by label and field pairs. The second and third columns have placeholders for label and field pairs.

The following image includes an example of this template.

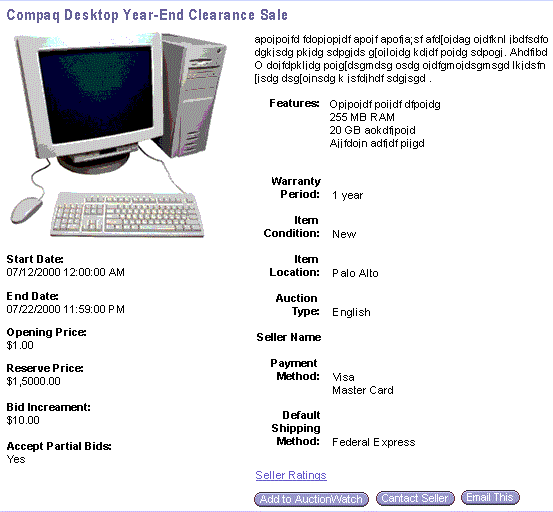

Example of the DotComAppletFormItemDetail Template. In this image of a form applet, there is a label at the beginning of the image. An image of a computer appears after the label at the beginning of the first column. The image is followed by label and field pairs. A second column also has label and field pairs. At the end of the form, in the second column, there are three buttons.

This template uses the following structure:

DotComAppletFormItemDetail
   CCApplet_Spacer
      dCCFormItemDetail

The following table lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

ID	Placeholder
132 through 133	Control
141	Control
142	Control
157 through 158	Control
159	Control
160	Control
1102 through 1107	Label or Field
1112 through 1133	Label or Field
1300	Large Image (120X120)
1301	Item Name
