CME Energy Products, Service, and Usage

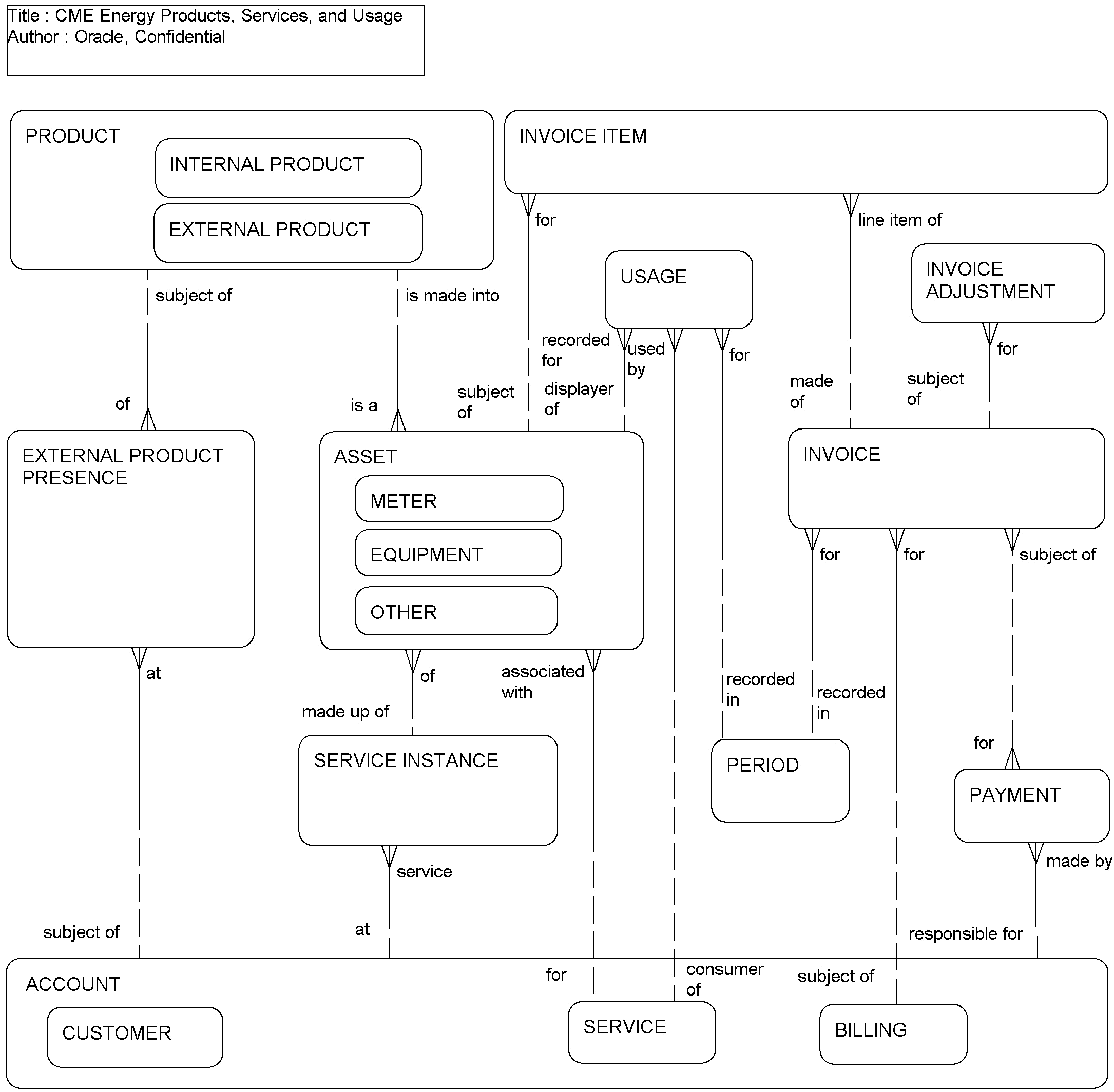

This ERD (see the following figure) illustrates how products and services in use, inactive, or planned are associated with, tracked, and maintained by account. Assets are instances of internal products with the Siebel products catalog and can represent equipment, services designated by the administrator. Services are represented as assets that consist of specific commodities or energy service with corresponding rates or prices (for example, commercial electric service with rate CE5). Each of these services can be further associated with one or multiple meters. After a service has been established as an asset with corresponding rate and meter detail, the utility consumption is recorded for each period, and an invoice is generated.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Account	S_ORG_EXT, S_PARTY
Address	S_ADDR_PER
Asset	S_ASSET
External Product Presence	S_ORG_PRDEXT
Invoice	S_INVOICE
Invoice Adjustment	S_INVOICE_ADJ
Invoice Item	S_INVOICE_ITEM
Payment	S_SRC_PAYMENT
Period	S_PERIOD
Product: External	S_PROD_EXT
Product: Internal	S_PROD_INT
Service Instance	S_ASSET
Usage	S_USAGE
