Marketing Campaign

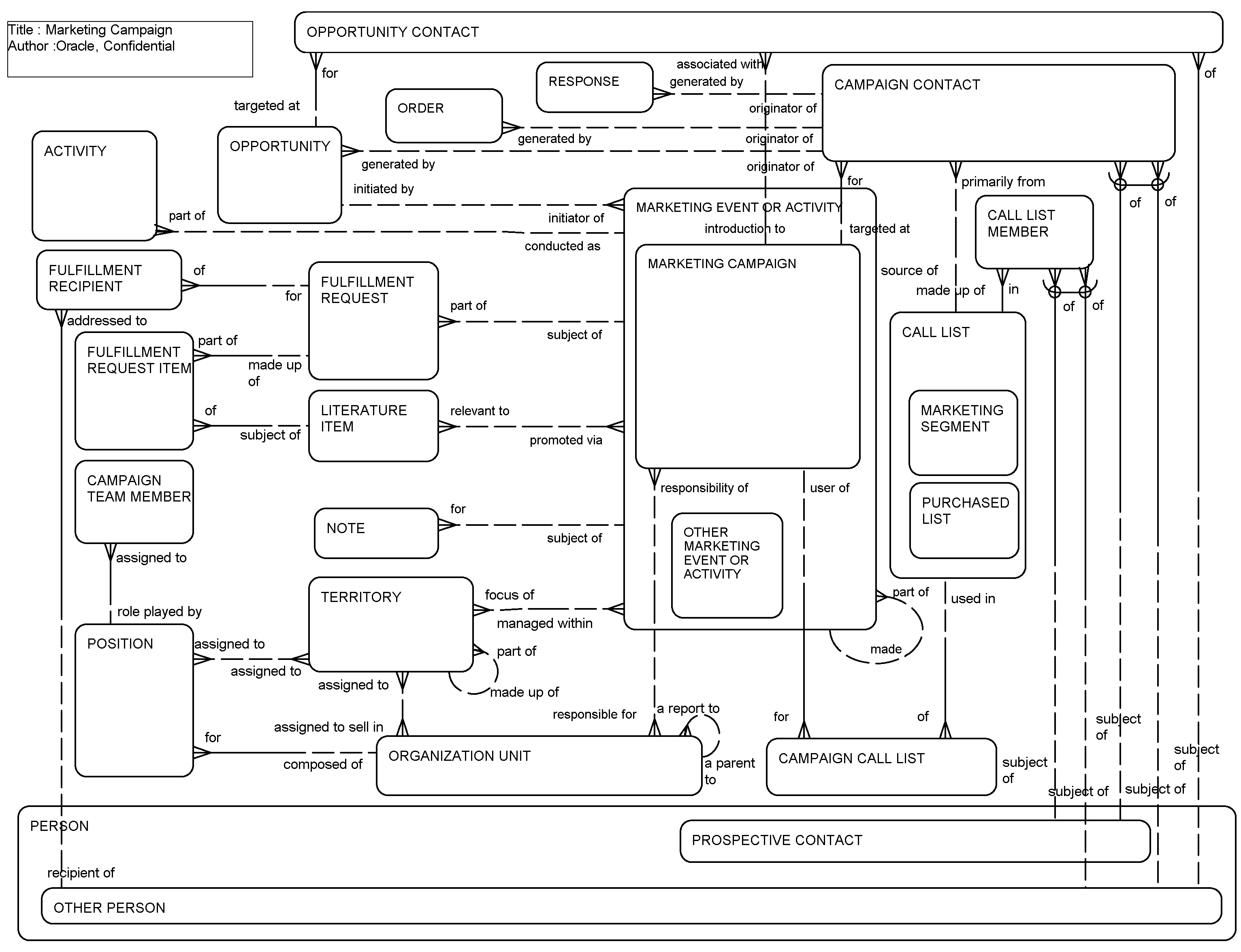

This ERD (see the following figure) illustrates campaign management, execution, and evolution. Campaign management can involve the focus of the campaign on a territory, as well as the responsibility of the various internal divisions and teams for successful execution. Execution can include the production and distribution of literature to the appropriate campaign contacts. Campaign evolution tracks the usage of call lists to identify campaign contacts and generate leads. Campaign contacts can include prospective contacts purchased on a call list. If a prospective contact is not promoted to a customer before the call list that names them expires, they are typically deleted from the database.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Activity	S_EVT_ACT
Call List	S_CALL_LST
Call List Member	S_CALL_LST_CON
Campaign Call List	S_CAMP_CALL_LST
Campaign Contact	S_CAMP_CON
Fulfillment Recipient	S_FUL_RECIP
Fulfillment Request	S_EVT_FUL_REQ
Fulfillment Request Item	S_FUL_REQ_ITEM
Literature Item	S_LIT
Marketing Event	S_SRC
Opportunity	S_OPTY
Opportunity Contact	S_OPTY_CON
Order	S_ORDER
Organization Unit	S_ORG_EXT, S_PARTY
Person	S_CONTACT, S_PARTY
Position	S_POSTN, S_PARTY
Prospective Contact	S_PRSP_CONTACT
Response	S_COMMUNICATION
Territory	S_ASGN_GRP
