Order Life Cycle

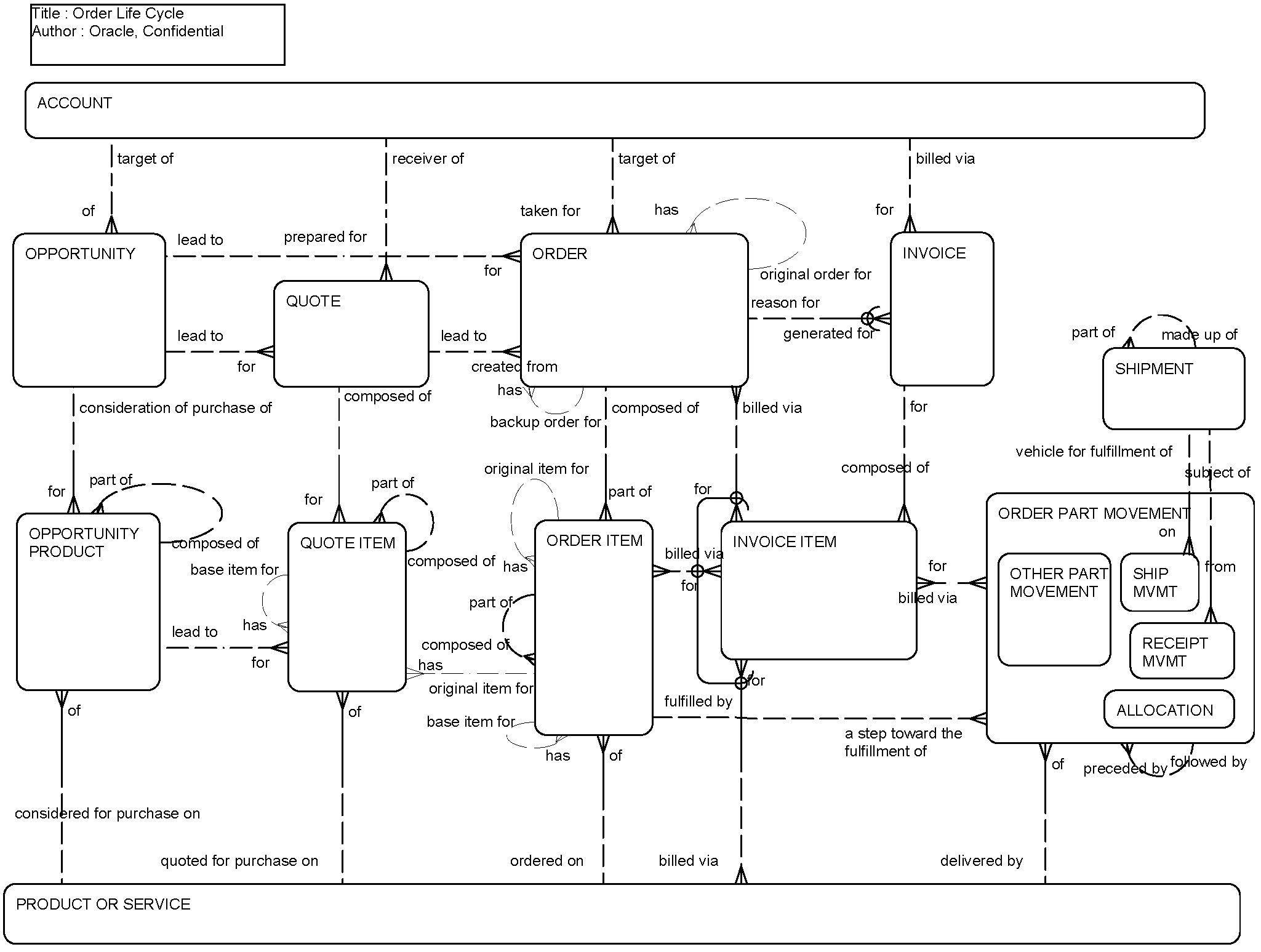

This ERD (see the following figure) illustrates how orders are tracked through their full life cycle by Siebel Business Applications. The cycle starts with an opportunity that tracks the consideration of purchase of one or more products. This opportunity leads to one or more quotes, composed of one or more quoted product items. A quote can then lead to one or more orders. An order is composed of one or more ordered product items. Fulfillment of the order can be tracked through a set of part movements of various types, culminating in a shipment of products to the customer, and the invoicing for shipped goods.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Account	S_ORG_EXT, S_PARTY
Invoice	S_INVOICE
Invoice Item	S_INVOICE_ITEM
Opportunity	S_OPTY
Opportunity Product	S_REVN
Order	S_ORDER
Order Item	S_ORDER_ITEM
Order Part Movement	S_ORDPART_MVMT
Product or Service	S_PROD_INT
Quote	S_DOC_QUOTE
Quote Item	S_QUOTE_ITEM
Shipment	S_SHIPMENT
