Orders

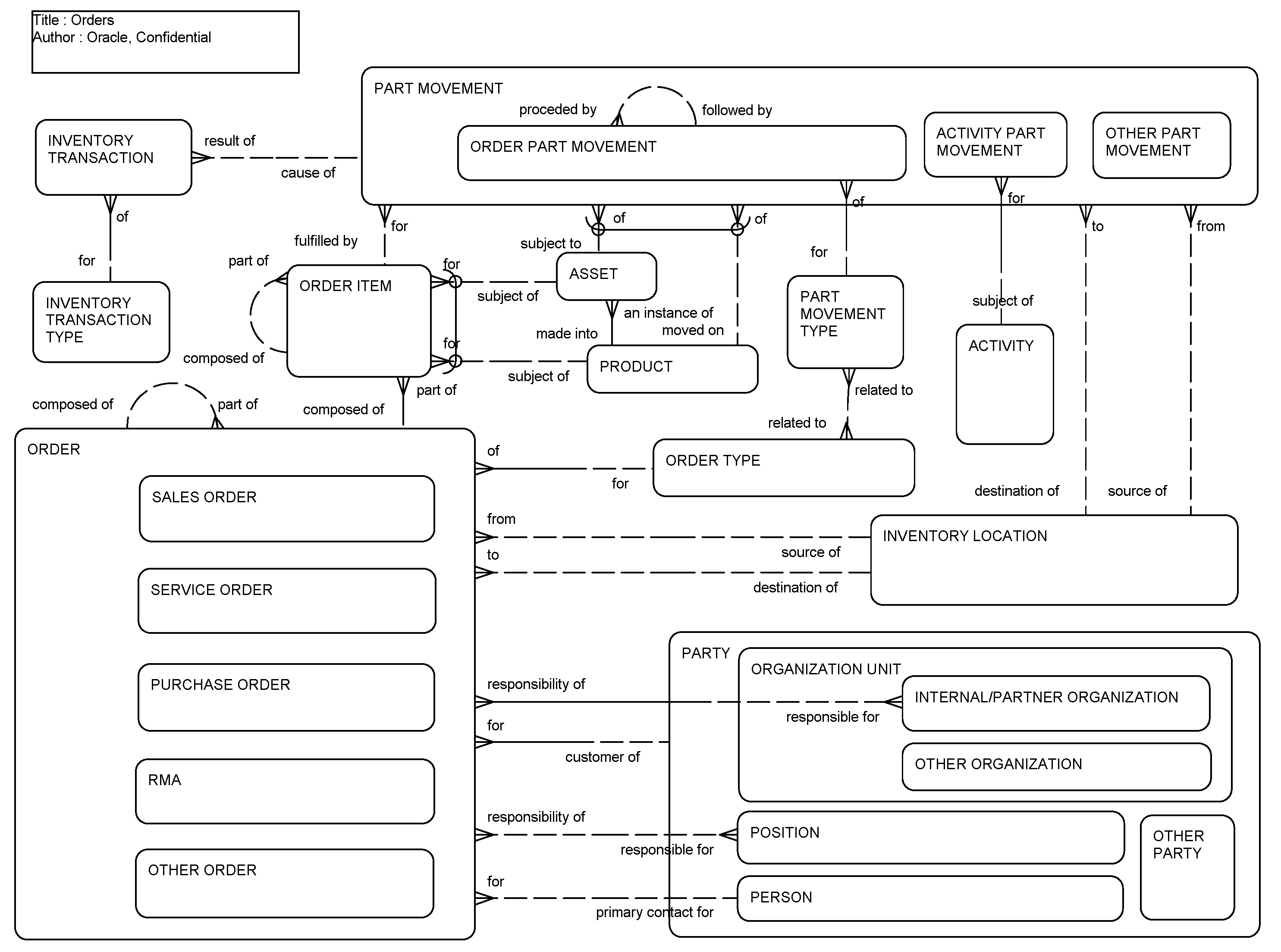

This ERD (see the following figure) illustrates the relationships between orders and significant entities related to orders such as assets, products, inventory locations, part movements, inventory transactions, activities, and parties. Orders include sales orders, service orders, purchase orders, and return material authorizations (RMAs) among others. The fulfillment of an order results in one or more part movements according to the instructions of the order. Each part movement results in one or more inventory transactions. Each order is usually the responsibility of a single internal or partner organization, but sometimes two or more. An order can be assigned or credited to one or more positions.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Activity	S_EVT_ACT
Asset	S_ASSET
Inventory Location	S_INVLOC
Inventory Transaction	S_INV_TXN
Inventory Transaction Type	S_INV_TXN_TYPE
Order	S_ORDER
Order Item	S_ORDER_ITEM
Order Type	S_ORDER_TYPE
Part Movement	S_ACTPART_MVMT, S_ORDPART_MVMT
Part Movement Type	S_PARTMVMT_TYPE
Party	S_PARTY, S_ORG_EXT, S_POSTN, S_CONTACT
Product	S_PROD_INT
